6.11 Reset Timing

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
t1 Power-on delay Delay from power up to active-low RESET pulse 3 ms
t2 Reset pulse duration Active-low RESET pulse duration 20 ns
t3 Register write delay Delay from RESET disable to SDENb active 100 ns

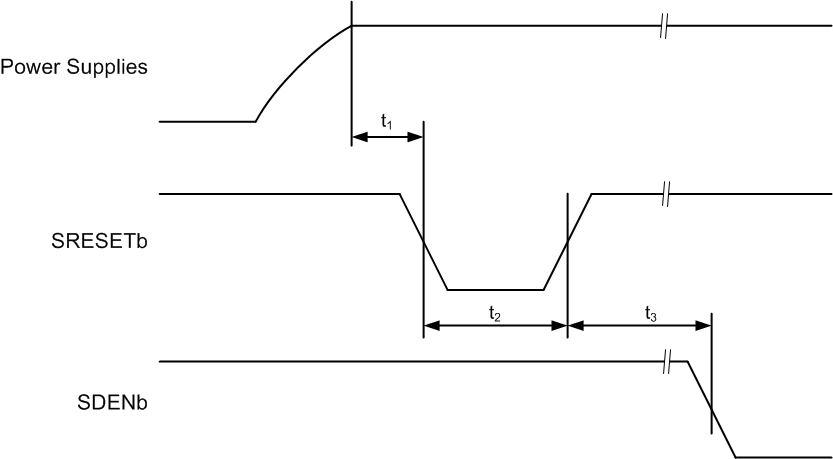

ADS54J54 tim_DevReg_BAS659.gifFigure 1. Reset Timing Diagram
ADS54J54 tim_250MSPS_slase67.gif
A. tPD is the propagation delay from sample clock input edge to serial data output transition
Figure 2. Timing Diagram: 250 MSPS Output Data Rate
ADS54J54 tim_500MSPS_slase67.gif
A. tPD is the propagation delay from sample clock input edge to serial data output transition
Figure 3. Timing Diagram: 500 MSPS Output Data Rate

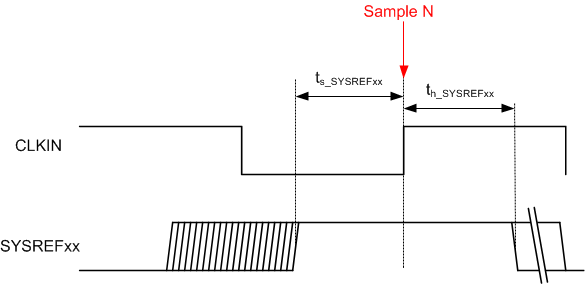

ADS54J54 tim_SYSREF_slase67.gifFigure 4. Timing Using SYSREF (Subclass 1)
