7.2.3 SMAART Wire™ Interface Timing Specifications

Figure 6 shows the key timing and jitter considerations for the SMAART wire interface. Table 1 lists the timing specifications for ensured, reliable operation. During a transaction, the baud rate must remain within ±1% of its initialization byte value; however, the baud rate can change from transaction to transaction. There is an allowed delay between each byte transfer of less than 28 ms, which is the bus inactivity timeout check for the TMP104 SMAART wire interface.

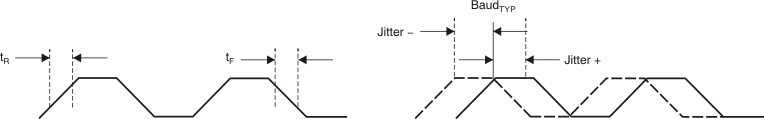

TMP104 tim_one_wire_bos564.gifFigure 6. SMAART Wire™ Timing Diagram

Table 1. Timing Diagram Definitions

PARAMETER MIN MAX UNIT
Baud 4.8 k 114 k Bits/s
tR Clock/data rise time 0.5 %Baud
tF Clock/data fall time 0.5 %Baud
Jitter ±1 %Baud
