Typical Characteristics

Unless otherwise specified the following conditions apply: VIN = 12 V, fSW = 1600 kHz, L = 4.7µH, COUT = 47 µF, TA = 25°C.
LMR23615-Q1 LMR2361DRR_Graph_002_Efficiency_vs_Current_Vout_5v_fsw_1000khz_SNVSAV8.gif
fSW = 1000 kHz VOUT = 5 V
Figure 1. Efficiency vs Load Current
LMR23615-Q1 LMR2361DRR_Graph_004_Efficiency_vs_Current_Vout_5v_fsw_2200khz_SNVSAV8.gif
fSW = 2200 kHz VOUT = 5 V
Figure 3. Efficiency vs Load Current
LMR23615-Q1 LMR2361DRR_Graph_006_Iout_vs_Vout_5v_fsw_1000khz_SNVSAV8.gif
fSW = 1000 kHz VOUT = 5 V
Figure 5. Load Regulation
LMR23615-Q1 LMR2361DRR_Graph_008_Vin_vs_Vout_5v_fsw_1000khz_SNVSAV8.gif
fSW = 1000 kHz VOUT = 5 V
Figure 7. Dropout Curve
LMR23615-Q1 D009_SNVSAH2.gif
VIN = 12 V VFB = 1.1 V

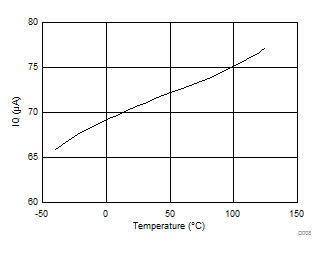

Figure 9. IQ vs Junction Temperature
LMR23615-Q1 D011_SNVSAH2.gif
Figure 11. VIN UVLO Hysteresis vs Junction Temperature
LMR23615-Q1 LMR2361DRR_Graph_003_Efficiency_vs_Current_Vout_3pt3v_fsw_1000khz_SNVSAV8.gif
fSW = 1000 kHz VOUT = 3.3 V
Figure 2. Efficiency vs Load Current
LMR23615-Q1 LMR2361DRR_Graph_005_Efficiency_vs_Current_Vout_3pt3v_fsw_2200khz_SNVSAV8.gif
fSW = 2200 kHz VOUT = 3.3 V
Figure 4. Efficiency vs Load Current
LMR23615-Q1 LMR2361DRR_Graph_007_Vin_vs_Vout_5v_fsw_1000khz_SNVSAV8.gif
fSW = 1000 kHz VOUT = 5 V
Figure 6. Line Regulation
LMR23615-Q1 LMR2361DRR_Graph_009_Vin_vs_Vout_5v_fsw_2200khz_SNVSAV8.gif
fSW = 2200 kHz VOUT = 5 V
Figure 8. Dropout Curve
LMR23615-Q1 D010_SNVSAH2.gif

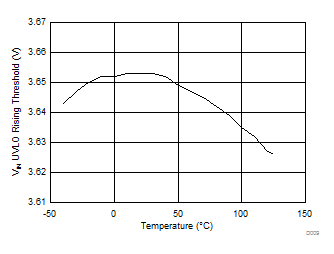

Figure 10. VIN UVLO Rising Threshold vs Junction Temperature
LMR23615-Q1 LMR2361DRR_Graph_010_Temperature_vs_Current_Limit_SNVSAV8.gif
VIN = 12 V
Figure 12. HS and LS Current Limit vs Junction Temperature
