7.6 Timing Requirements

PARAMETERMINTYPMAXUNIT
tCLKClock frequency on the XIN pin8MHz
tSCLKSerial shift clock period62.5ns
tSTECLKSTE low to SCLK rising edge, setup time10ns
tCLKSTEH,LSCLK transition to SPI STE high or low10ns
tSIMOSUSIMO data to SCLK rising edge, setup time10ns
tSIMOHDValid SIMO data after SCLK rising edge, hold time10ns
tSOMIPDSCLK falling edge to valid SOMI, setup time17ns
tSOMIHDSCLK rising edge to invalid data, hold time0.5tSCLK
The SPI_READ register bit must be enabled before attempting a register read.
Specify the register address whose contents must be read back on A[7:0].
The AFE outputs the contents of the specified register on the SPISOMI pin.

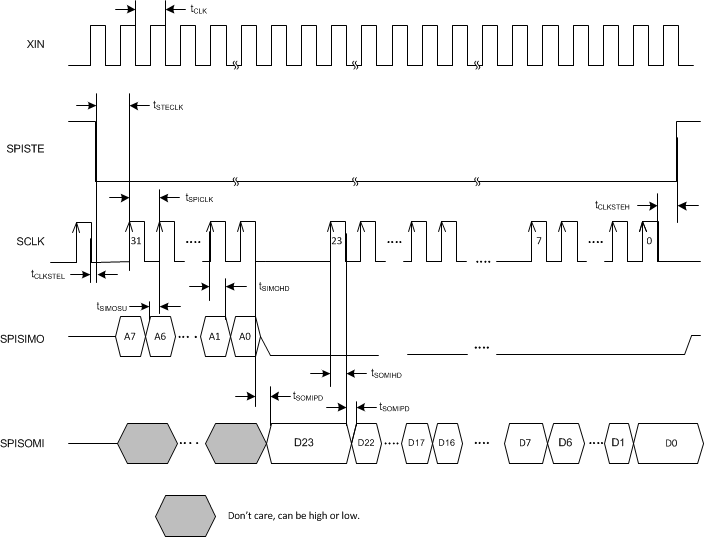

Figure 7-1 Serial Interface Timing Diagram, Read Operation

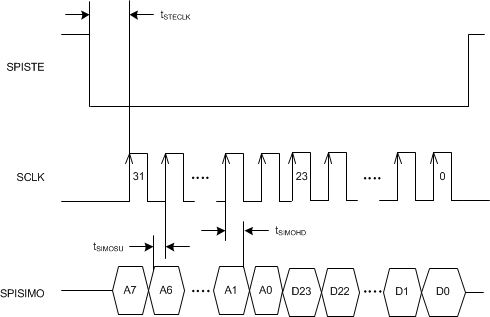

GUID-7DD74DAC-0707-43C0-BD73-061C4D9AE8B3-low.gifFigure 7-2 Serial Interface Timing Diagram, Write Operation
