8.4.2.3 Diagnostics Module

The diagnostics module, when enabled, checks for nine types of faults sequentially. The results of all faults are latched in 11 separate flags.

The status of all flags can also be read using the SPI interface. Table 8-7 details each fault and flag used. Note that the diagnostics module requires all AFE blocks to be enabled in order to function reliably.

Table 8-7 Fault and Flag Diagnostics
MODULE(1)SEQ.FAULTFLAG1FLAG2FLAG3FLAG4FLAG5FLAG6FLAG7FLAG8FLAG9FLAG10FLAG11
——No fault00000000000
PD1Rx INP cable shorted to LED cable1
2Rx INN cable shorted to LED cable1
3Rx INP cable shorted to GND cable1
4Rx INN cable shorted to GND cable1
5PD open or shorted11
LED6Tx OUTM line shorted to GND cable1
7Tx OUTP line shorted to GND cable1
8LED open or shorted11
9LED open or shorted1
(1) Resistances below 10 kΩ are considered to be shorted.

Figure 8-33 shows the timing for the diagnostic function.

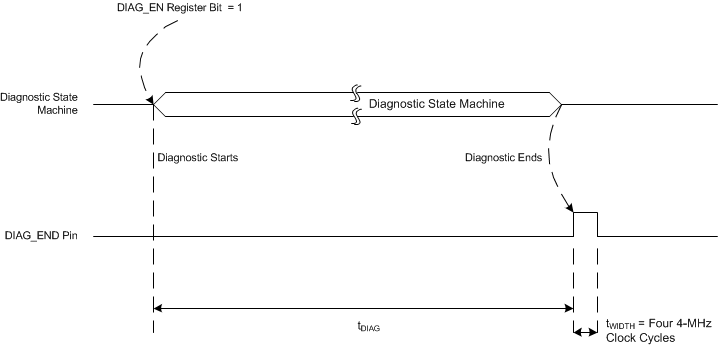

GUID-AC009252-F2DF-4869-B115-9275CD137B47-low.gifFigure 8-33 Diagnostic Timing Diagram

By default, the diagnostic function takes tDIAG = 16 ms to complete. After the diagnostics function completes, the AFE4403 filter must be allowed time to settle. See the Electrical Characteristics for the filter settling time.
