10.2 Layout Example

The following examples show layout-example plots (top and bottom layers only). Figure 102 shows a typical stackup for a 10 layer board.

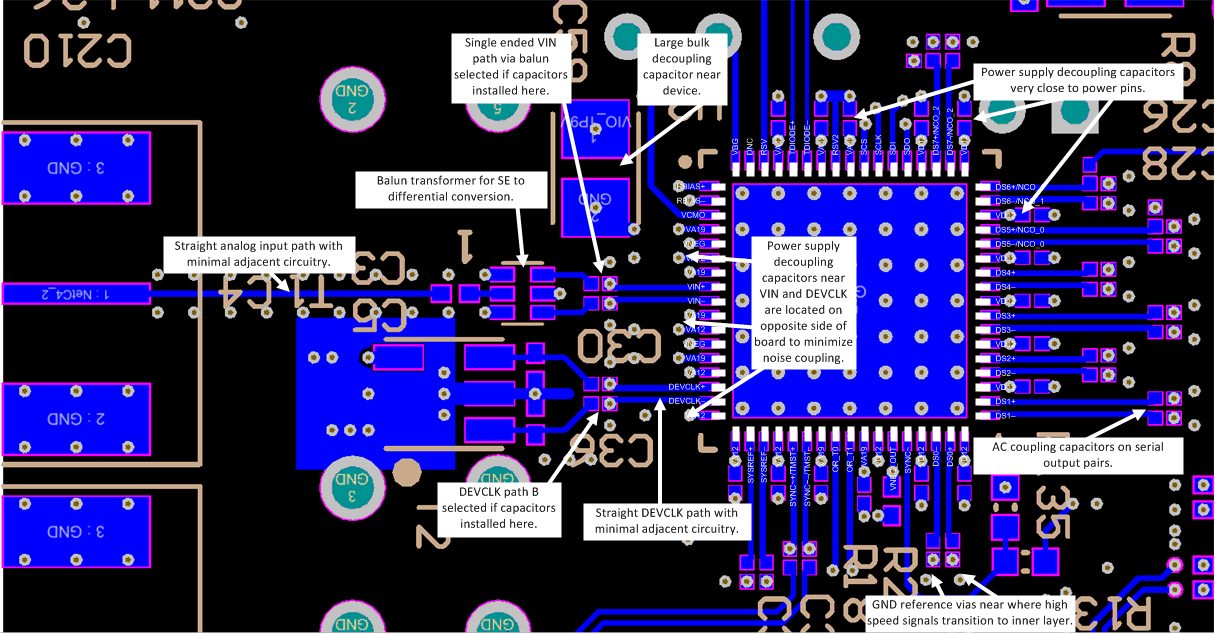

ADC12J4000 Layout_Rec1.gifFigure 100. ADC12J4000 Layout Example 1 — Top Side

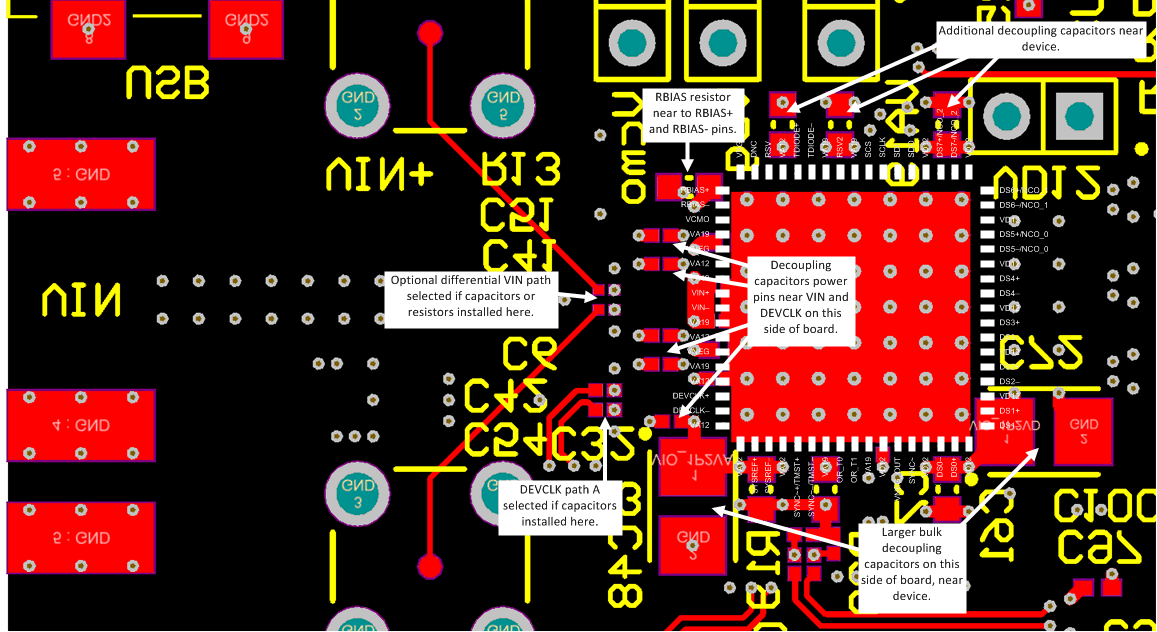

ADC12J4000 Layout_Rec2.gifFigure 101. ADC12J4000 Layout Example 2 — Bottom Side
ADC12J4000 PCB_Stackup.gifFigure 102. ADC12J4000 Typical Stackup — 10 Layer Board
