3.5 Start-Up Sequence

Start-up behavior is shown in the following figures.

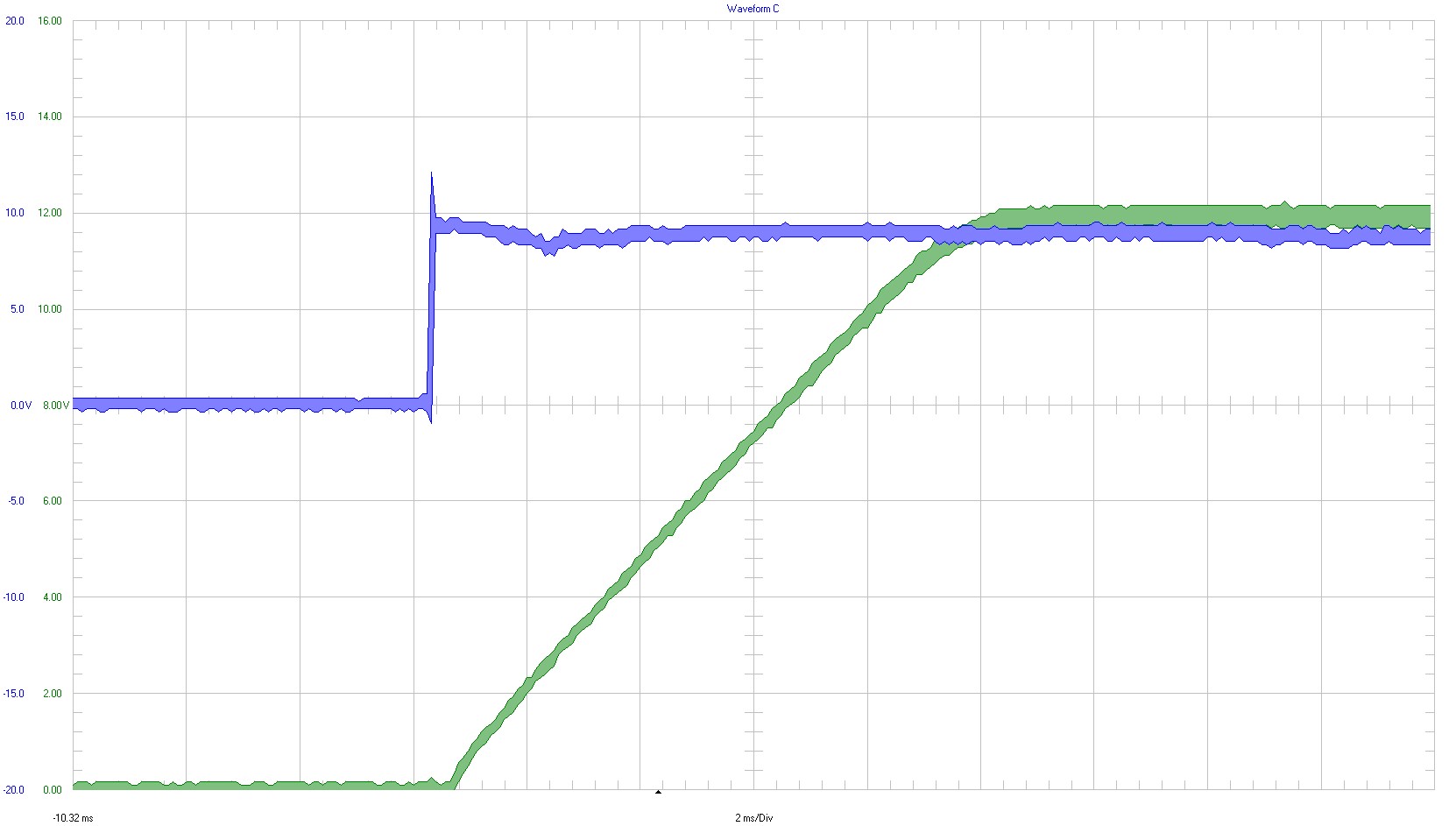

GUID-20220221-SS0I-KNSB-VDDC-C2NCL81PZKKH-low.jpgFigure 3-11 9-V Input Voltage (UVLO set to 9.0 V ON and 7.3 V OFF)

VIN (blue curve)

  • 5-V / div
  • 20-MHz bandwidth

VOUT

  • 2 V / div
  • 20-MHz bandwidth

2 ms / div

GUID-20220221-SS0I-JF04-SLWF-V6W635TNKN00-low.jpg Figure 3-12 Start-up at 18-V Input Voltage

VIN (blue curve)

  • 5-V / div
  • 20-MHz bandwidth

VOUT

  • 2 V / div
  • 20-MHz bandwidth

2 ms / div
