6.13 DCA1000EVM Mode

The setup for raw data capture using DCA1000EVM is shown in Figure 6-18.

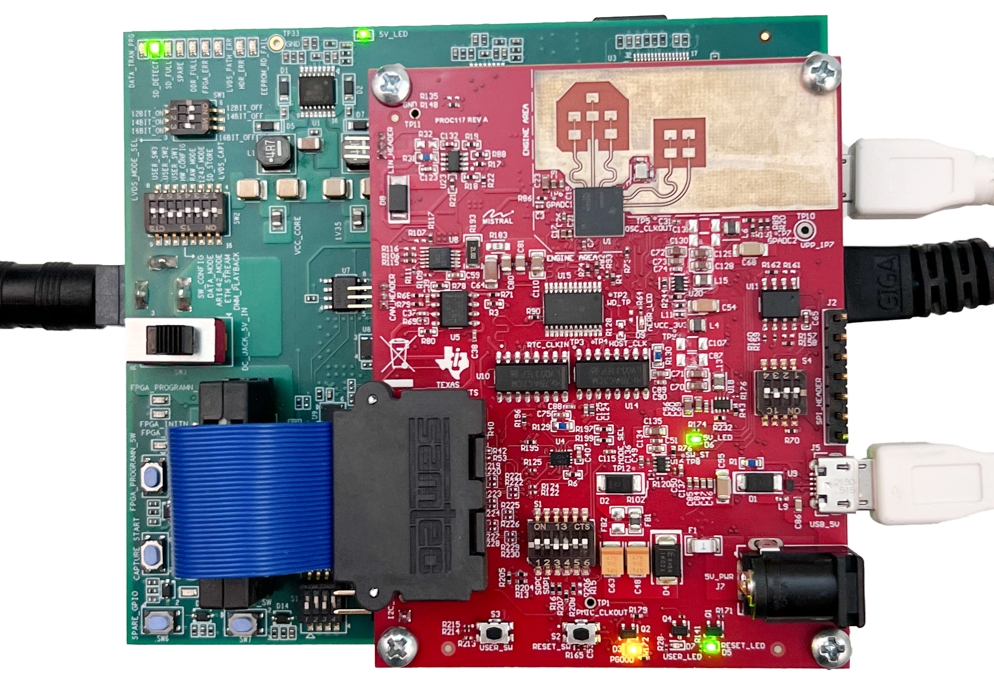

GUID-836F7BA6-D6DE-4002-8C33-1A0C99503805-low.png Figure 6-18 DCA1000EVM mode top view

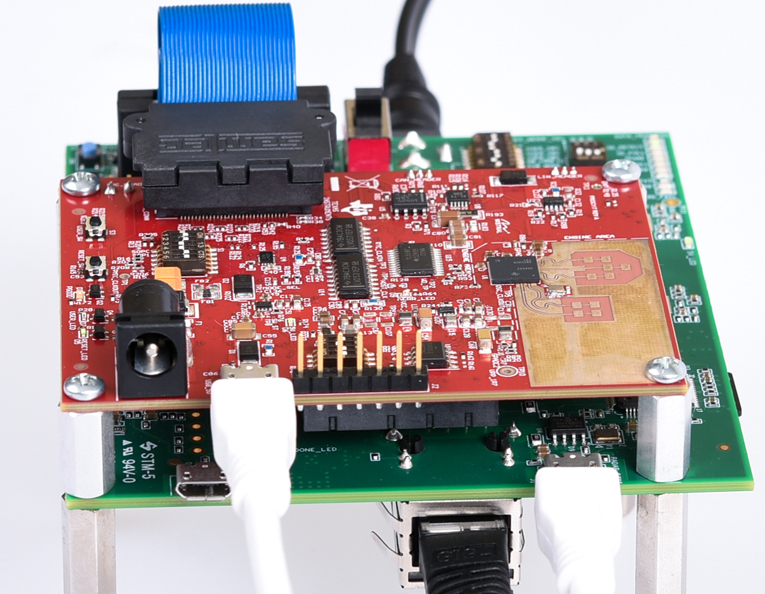

GUID-EA9C1C78-0E86-4042-ABA0-9674C0C24BE9-low.png Figure 6-19 DCA1000EVM mode side view

Please refer to Figure 6-7 shown in the beginning of this document for the switch settings for the DCA1000 raw ADC capture card.
