2.6 Loop Characteristics

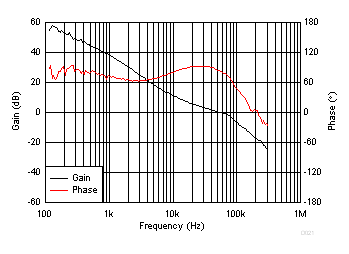

Figure 2-6 shows the TPS54334EVM-722 loop-response characteristics. Gain and phase plots are shown for VIN voltage of 24 V. Load current for the measurement is 1.5 A.

GUID-E4BA5531-E546-4373-B171-44937F67D24A-low.gifFigure 2-6 TPS54334EVM-722 Loop Response
