2.5 Load Transients

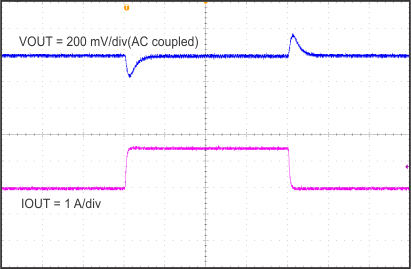

Figure 2-5 shows the TPS54334EVM-722 response to load transients. The current step is from 25% to 75% of maximum rated load at 12-V input. Total peak-to-peak voltage variation is as shown, including ripple and noise on the output.

GUID-78C5713E-259E-4415-B131-63E5CD3CEA4E-low.gifFigure 2-5 TPS54334EVM-722 Transient Response
