2.2 Efficiency

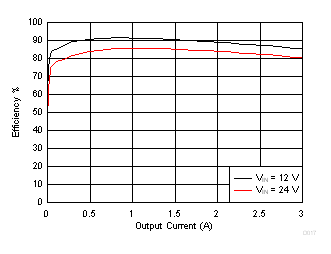

The efficiency of this EVM peaks at a load current of about 0.5 A – 1 A, and then decreases as the load current increases towards full load. Figure 2-1 shows the efficiency for the TPS54334EVM-722 at an ambient temperature of 25°C.

GUID-5B21CF8C-E5AA-4EF1-B5ED-CFD9DF32E1BA-low.gifFigure 2-1 TPS54334EVM-722 Efficiency

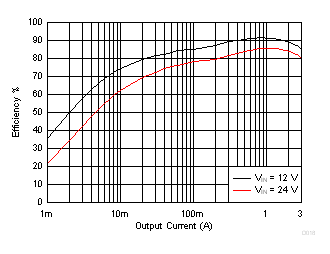

Figure 2-2 shows the efficiency for the TPS54334EVM-722 on a semi-log scale to better show light load efficiency. The ambient temperature is 25°C.

GUID-4F7A07E4-CCA4-4B85-8F68-F72EEFACFB6F-low.gifFigure 2-2 TPS54334EVM-722 Low Current Efficiency

The efficiency may be lower at higher ambient temperatures, due to temperature variation in the drain-to-source resistance of the internal MOSFET.
