3 Board Layout

This section provides the board layout and illustrations of the TPS62A02EVM-197, which is valid for variant TPS62A02AEVM-197 as well.

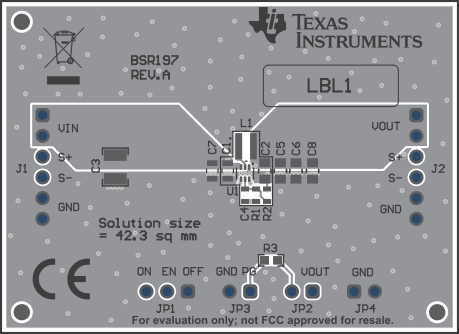

GUID-20220310-SS0I-ZWM0-XFKL-FRMP4WGWQR0H-low.gifFigure 3-1 Top View Mask

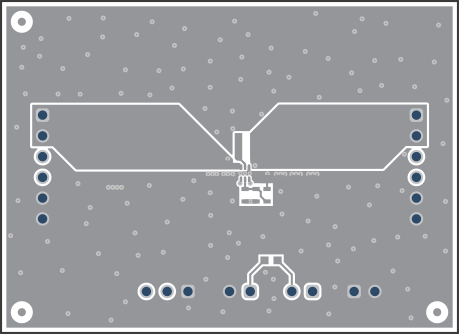

GUID-20220310-SS0I-JWND-H5BV-VPLS4QBDVZ7B-low.gifFigure 3-2 Top Layer
GUID-20220310-SS0I-Q92C-MWSK-KPZWR7GHQVMT-low.gifFigure 3-3 Bottom Layer
