3.1 How to Determine If Your Hardware is Based on eZ-FET or eZ-FET Lite

  • Check the installed tool drivers by using the Windows Device Manager. eZ-FET tools enumerate as CDC "MSP Debug Interface" and CDC "MSP Application UART1" devices (see Figure 1).
  • Check the Experimenter Board or LaunchPad emulation section to find out if it is based on an eZ-FET tool. If it is based on an MSP430F5528 device, it is an eZ-FET tool.
  • There is a small print on the silkscreen that indicates eZ-FET or eZ-FET Lite (see Figure 2 and Figure 5).
fig01_eZ-FET_Windows_Enumeration.pngFigure 1. eZ-FET Windows Enumeration

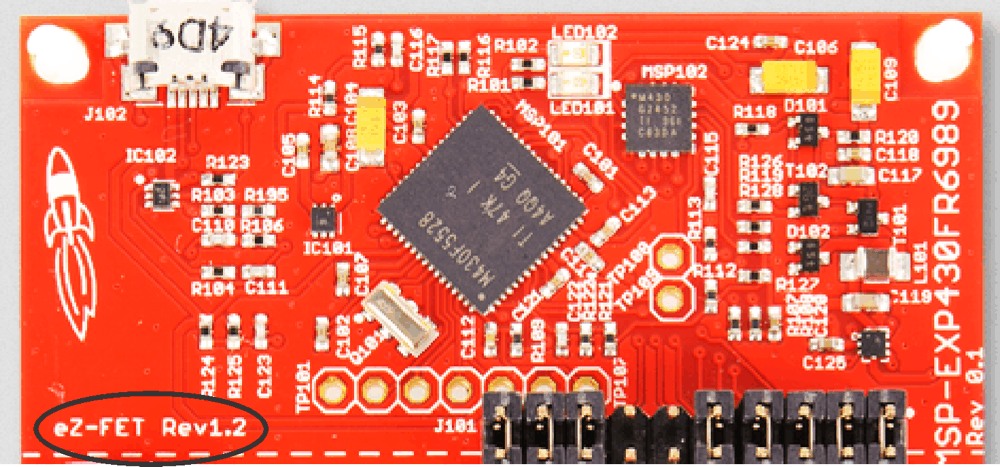

ez-fet-rev-1p2-emulation-ip.pngFigure 2. eZ-FET Rev 1.2 Emulation IP
ez-fet-rev-1p4-emulation-ip.pngFigure 3. eZ-FET Rev 1.4 Emulation IP
ez-fet-rev-2p0-emulation-ip.pngFigure 4. eZ-FET Rev 2.0 Emulation IP

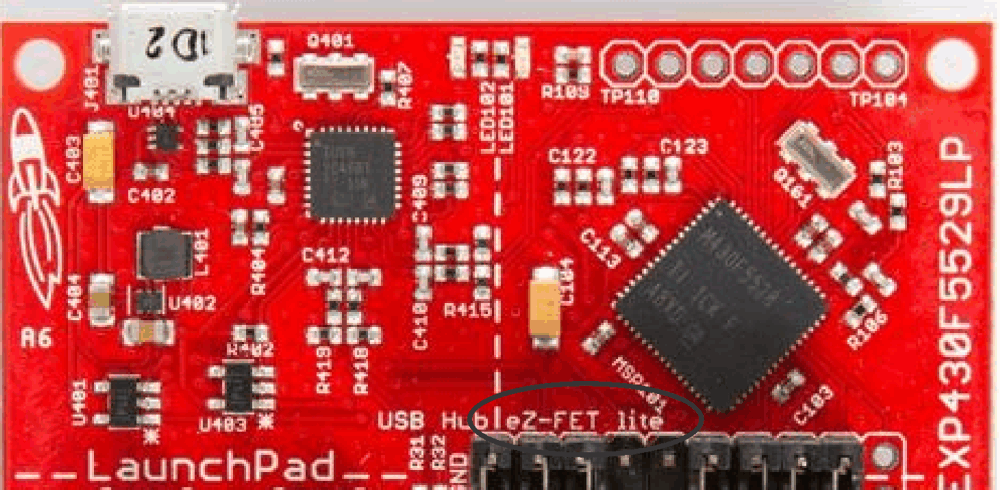

ez-fet-lite-emulation-ip.pngFigure 5. eZ-FET Lite Emulation IP
