4.2 Software Installation

The OPT3004DTSEVM software is available through the OPT3004DTSEVM Product Folder on the TI web site (www.ti.com). To install the software to your computer, navigate to the OPT3004DTSEVM software, and open the installer directory. Launch the OPT3004DTSEVM installation file, OPT3004DTS_EVM_Latte.exe, as shown in the figure below.

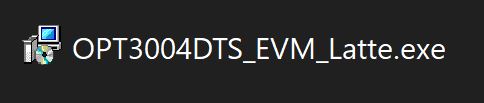

Figure 4-1 OPT3004DTSEVM Software-Installation File

The OPT3004EVM software then begins the installation process, as shown in Figure 4-2.

Figure 4-2 OPT3004DTSEVM Software-Installation Launch

Follow the prompts as shown in Figure 4-3 to Figure 4-8 to install the OPT3004DTSEVM software.

Figure 4-3 OPT3004DTSEVM Software-Installation Prompts.

Figure 4-4 OPT3004DTSEVM Software-Installation Prompts

Figure 4-5 OPT3004DTSEVM Software-Installation Prompts.

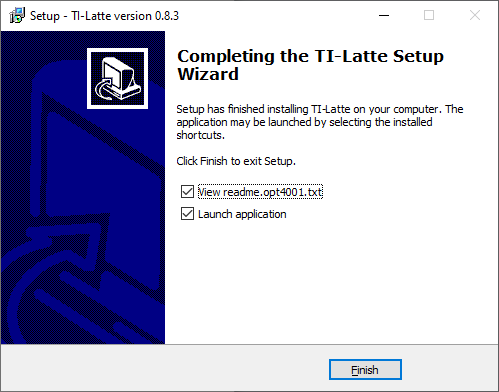

Figure 4-6 OPT3004DTSEVM Software-Installation Prompts.

Figure 4-7 OPT3004DTSEVM Software-Installation Prompts.

Figure 4-8 OPT3004DTSEVM Software-Installation Prompts.

The OPT3004EVM GUI software is now installed.
