ZHCSPG4D december   2021  – august 2023 TPS7A14

PRODUCTION DATA

  1.   1
  2. 1特性
  3. 2应用
  4. 3说明
  5. 4Revision History
  6. 5Pin Configuration and Functions
  7. 6Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Recommended Operating Conditions
    4. 6.4 Thermal Information
    5. 6.5 Electrical Characteristics
    6. 6.6 Switching Characteristics
    7. 6.7 Typical Characteristics
  8. 7Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1 Excellent Transient Response
      2. 7.3.2 Global Undervoltage Lockout (UVLO)
      3. 7.3.3 Enable Input
      4. 7.3.4 Internal Foldback Current Limit
      5. 7.3.5 Active Discharge
      6. 7.3.6 Thermal Shutdown
    4. 7.4 Device Functional Modes
      1. 7.4.1 Normal Operation
      2. 7.4.2 Dropout Operation
      3. 7.4.3 Disable Mode
  9. 8Application and Implementation
    1. 8.1 Application Information
      1. 8.1.1  Recommended Capacitor Types
      2. 8.1.2  Input, Output, and Bias Capacitor Requirements
      3. 8.1.3  Dropout Voltage
      4. 8.1.4  Behavior During Transition From Dropout Into Regulation
      5. 8.1.5  Device Enable Sequencing Requirement
      6. 8.1.6  Load Transient Response
      7. 8.1.7  Undervoltage Lockout Circuit Operation
      8. 8.1.8  Power Dissipation (PD)
      9. 8.1.9  Estimating Junction Temperature
      10. 8.1.10 Recommended Area for Continuous Operation
    2. 8.2 Typical Application
      1. 8.2.1 Design Requirements
      2. 8.2.2 Detailed Design Procedure
      3. 8.2.3 Application Curve
    3. 8.3 Power Supply Recommendations
    4. 8.4 Layout
      1. 8.4.1 Layout Guidelines
      2. 8.4.2 Layout Examples
  10. 9Device and Documentation Support
    1. 9.1 Device Support
      1. 9.1.1 Development Support
        1. 9.1.1.1 Evaluation Module
      2. 9.1.2 Device Nomenclature
    2. 9.2 Documentation Support
      1. 9.2.1 Related Documentation
    3. 9.3 接收文档更新通知
    4. 9.4 支持资源
    5. 9.5 Trademarks
    6. 9.6 静电放电警告
    7. 9.7 术语表
  11.   Mechanical, Packaging, and Orderable Information
    1. 10.1 Mechanical Data

封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • DRV|6
  • YBK|6
散热焊盘机械数据 (封装 | 引脚)
订购信息

Typical Characteristics

at operating temperature TJ = 25°C, VOUT(NOM) = 0.8 V, VIN = VOUT(NOM) + 0.1 V, VBIAS = VOUT(NOM) + 1.4 V, IOUT = 1 mA, VEN = VIN, CIN = 2.2 µF, COUT = 2.2 µF, and CBIAS = 0.47 µF (unless otherwise noted)


Figure 6-1 Output Voltage Accuracy vs VIN

Figure 6-3 Output Voltage Accuracy vs IOUT

Figure 6-5 VBIAS Dropout Voltage vs IOUT
IOUT = 1 A

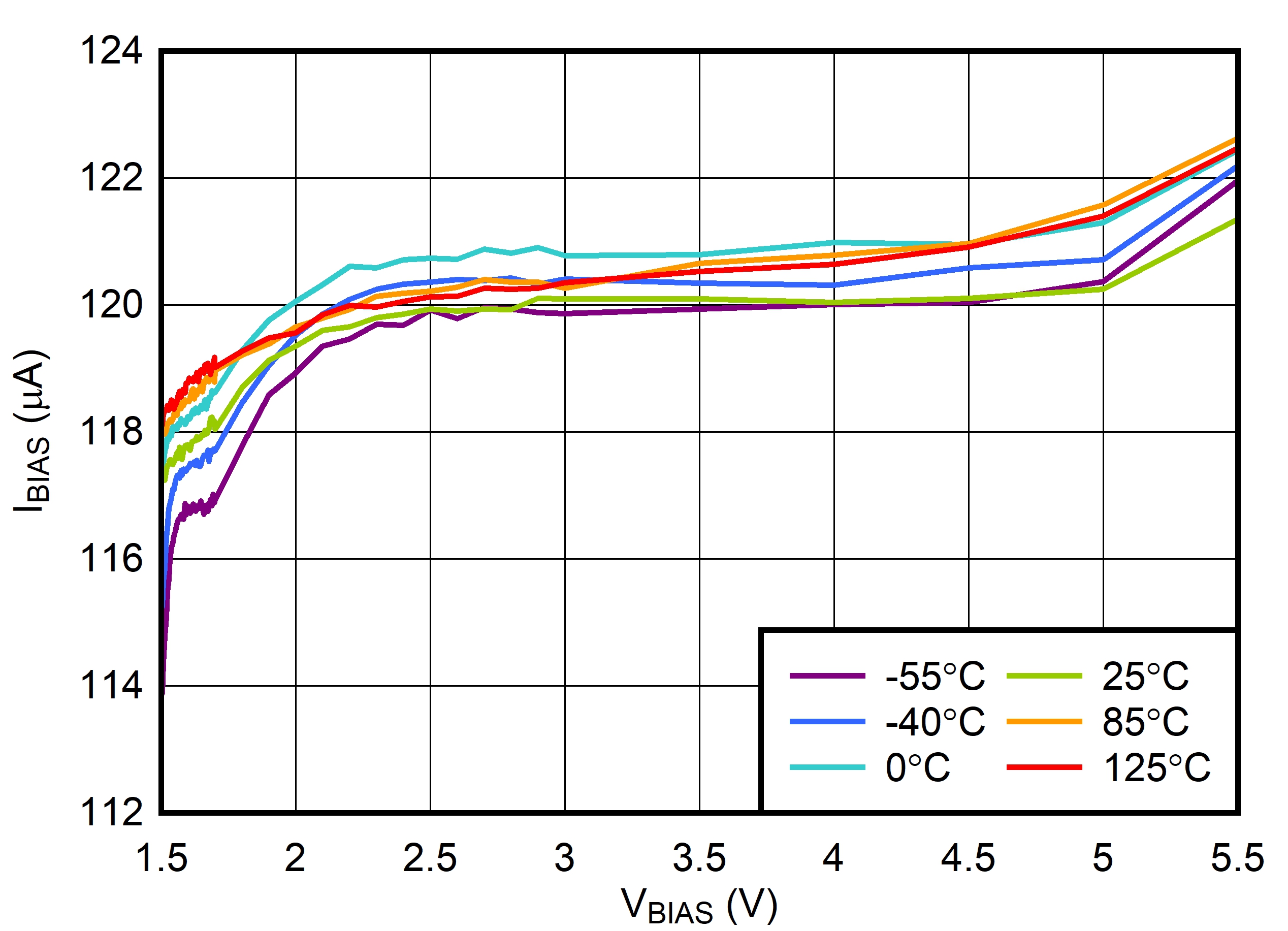

Figure 6-7 VBIAS Input Current vs VBIAS
IOUT = 0 A, VIN = 1 V

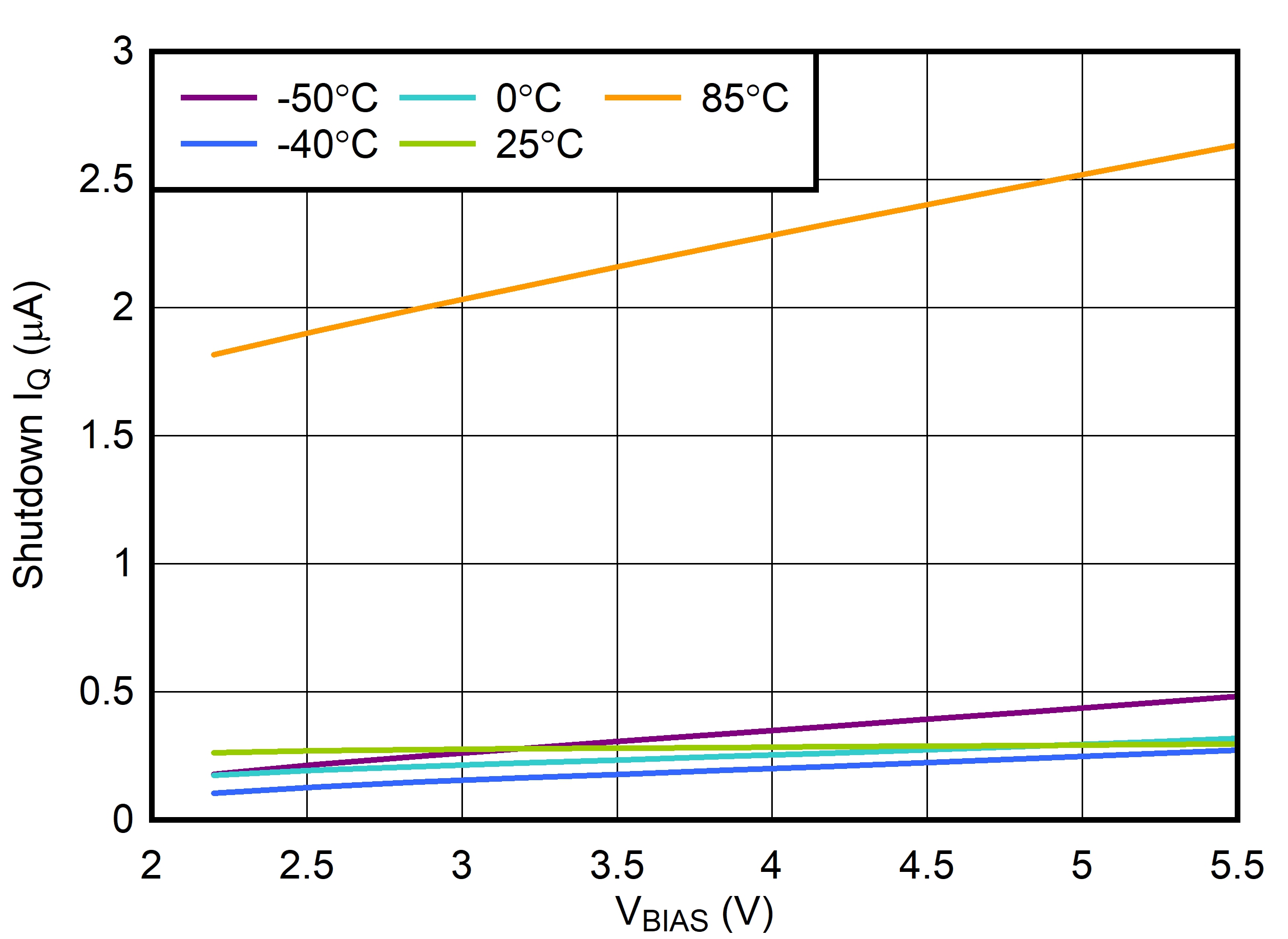

Figure 6-9 VBIAS Shutdown IQ vs VBIAS

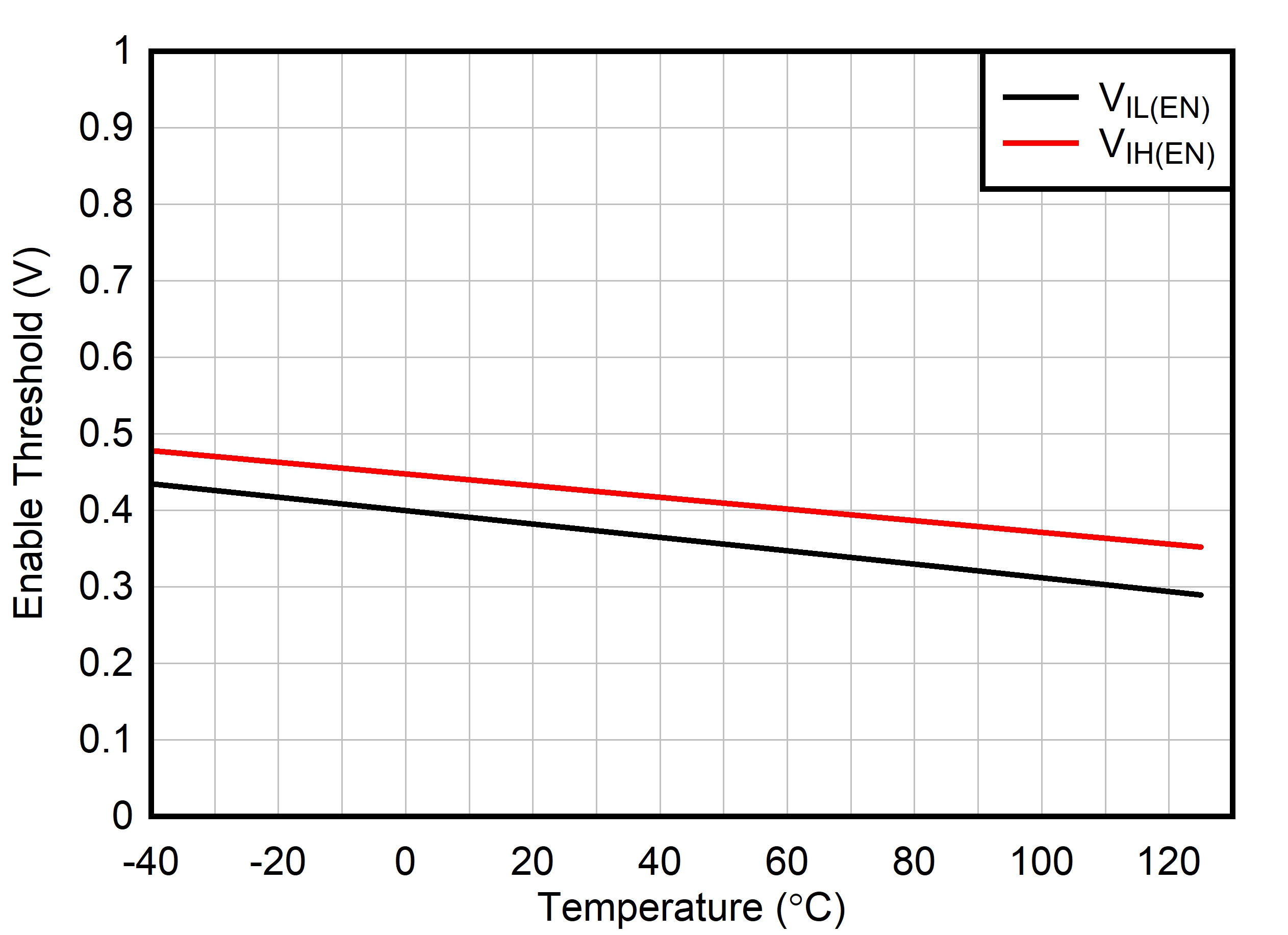

Figure 6-11 Enable Threshold vs Temperature

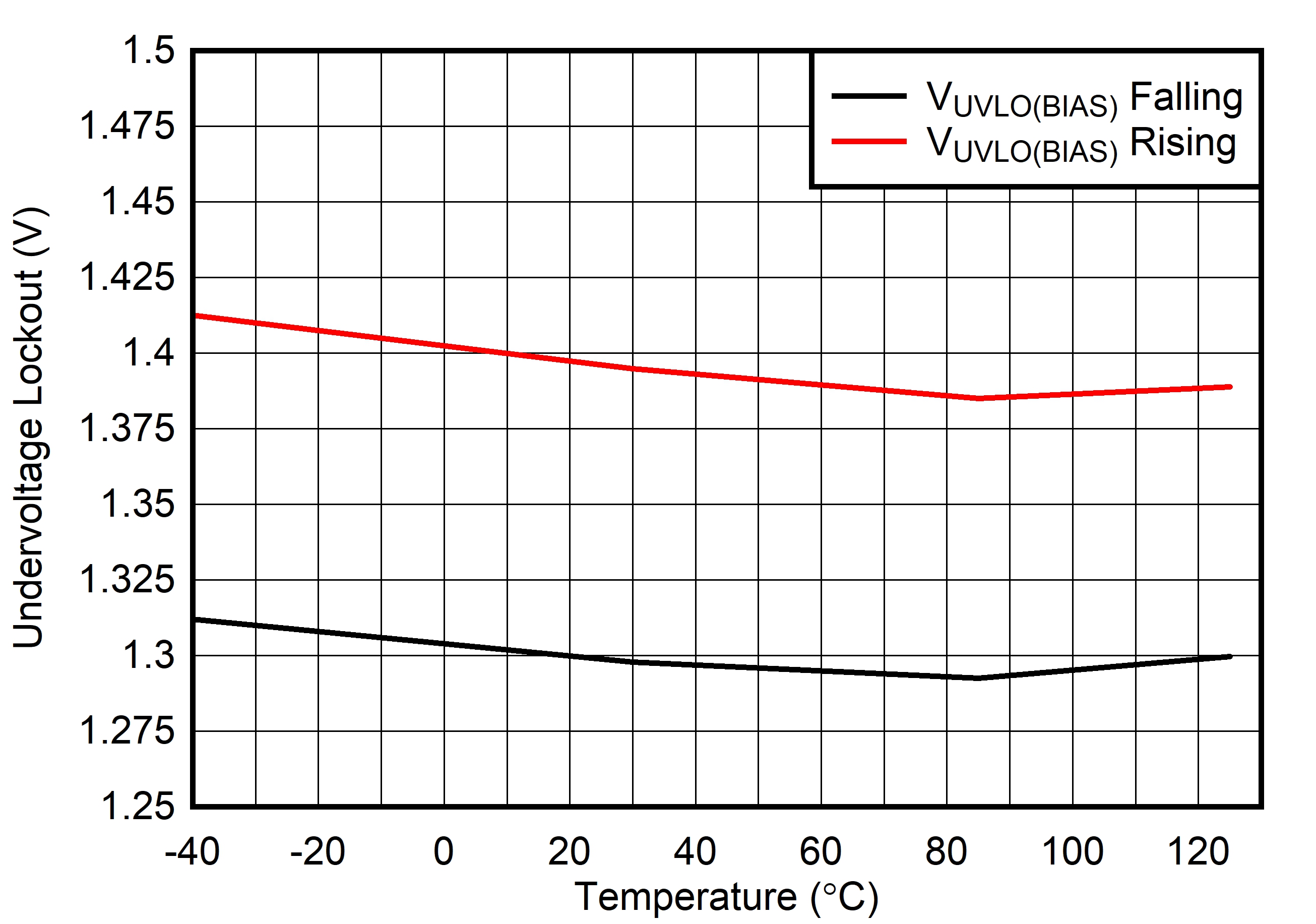

Figure 6-13 VBIAS UVLO vs Temperature
tr = 1 μs

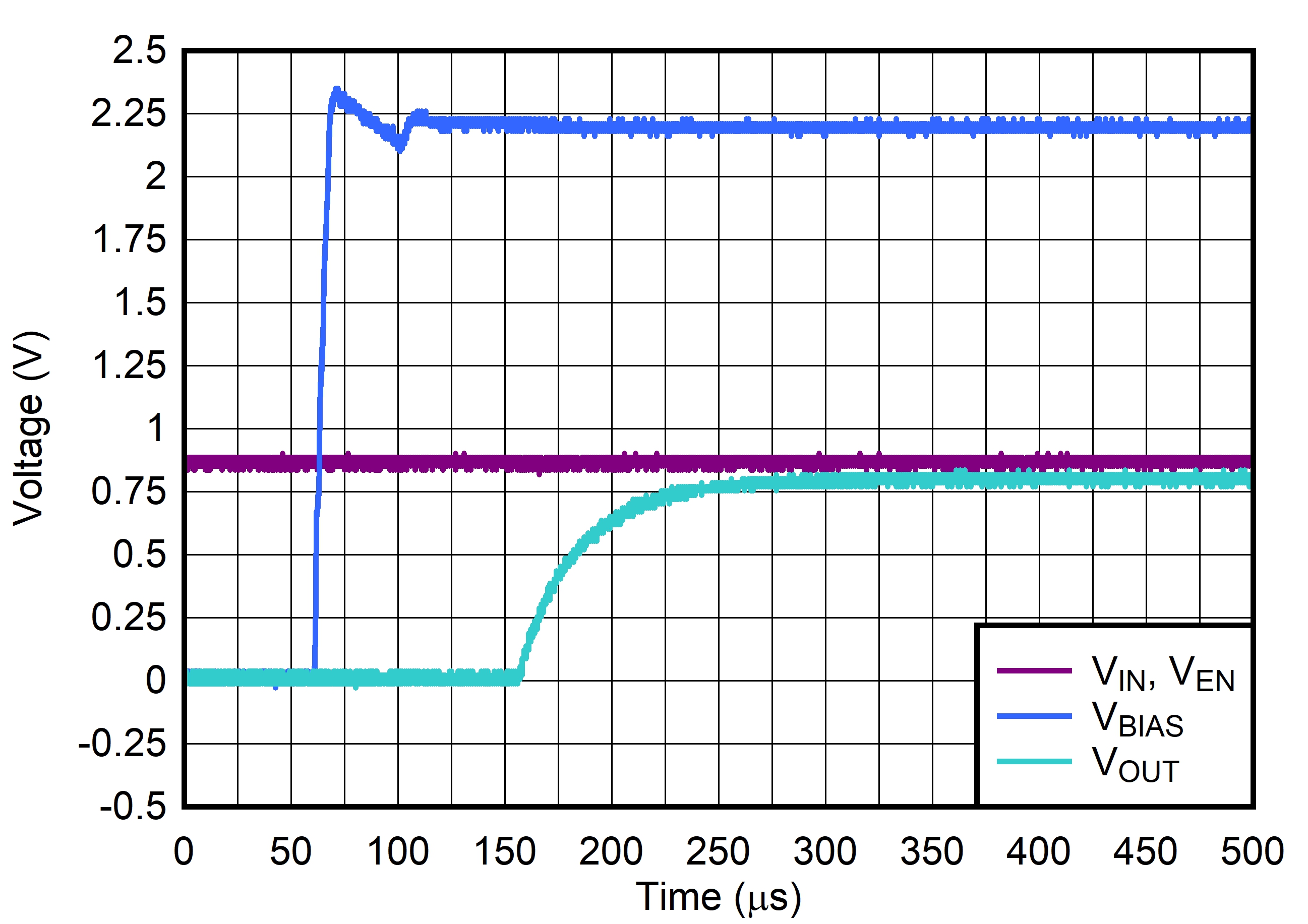

Figure 6-15 Start-Up With VIN Before VBIAS and VEN
tr = 1 μs
Figure 6-17 Start-Up With VIN and VEN Before VBIAS
tr = tf = 10 μs, IOUT = 500 mA
Figure 6-19 Line Transient From 1 V to 2.2 V
tr = tf = 1 μs

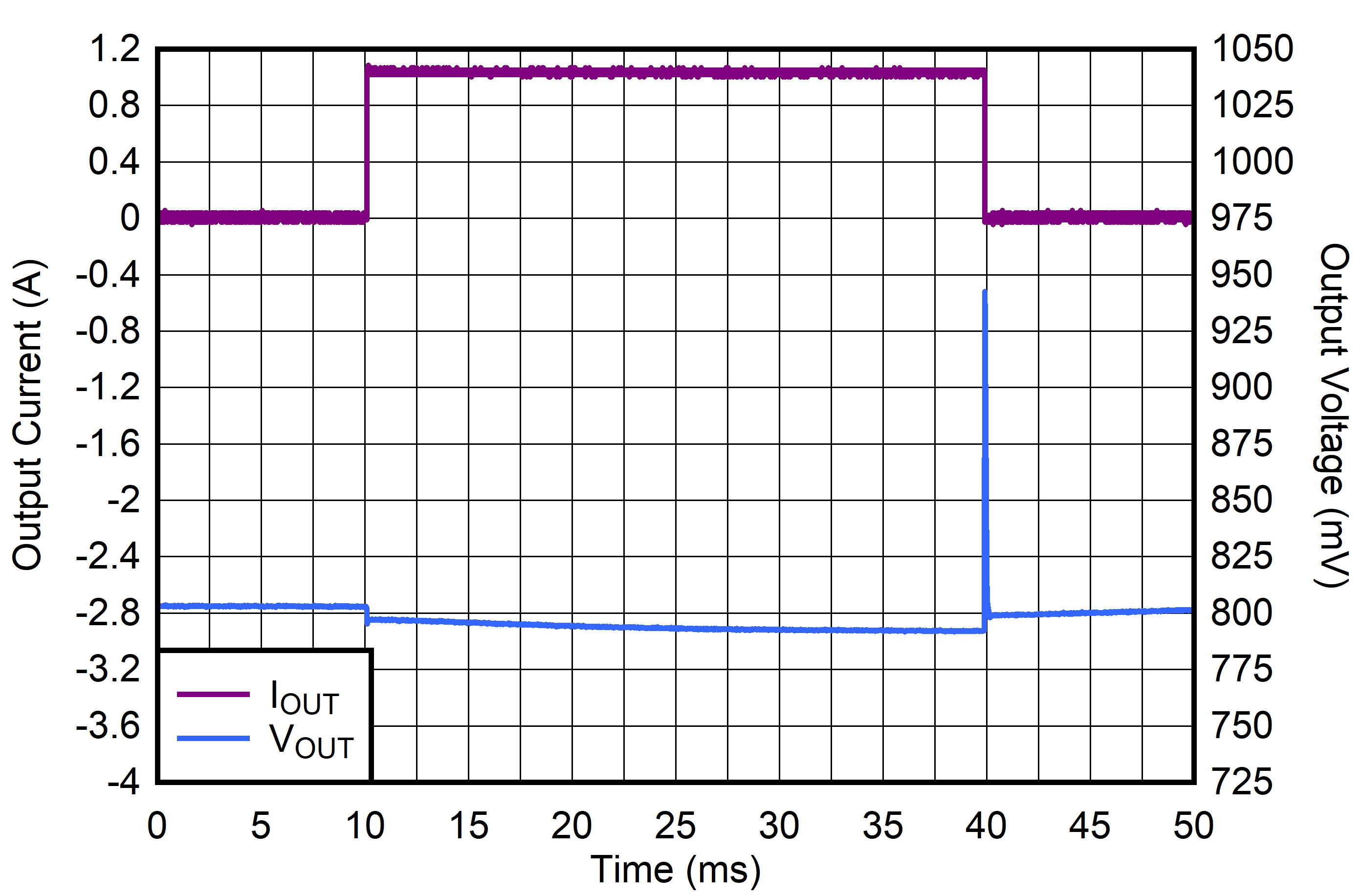

Figure 6-21 Load Transient From 100 μA to 1 A
CBIAS = 0 μF, IOUT = 1 A
Figure 6-23 PSRR vs Frequency and VIN – VOUT
CBIAS = 0 μF

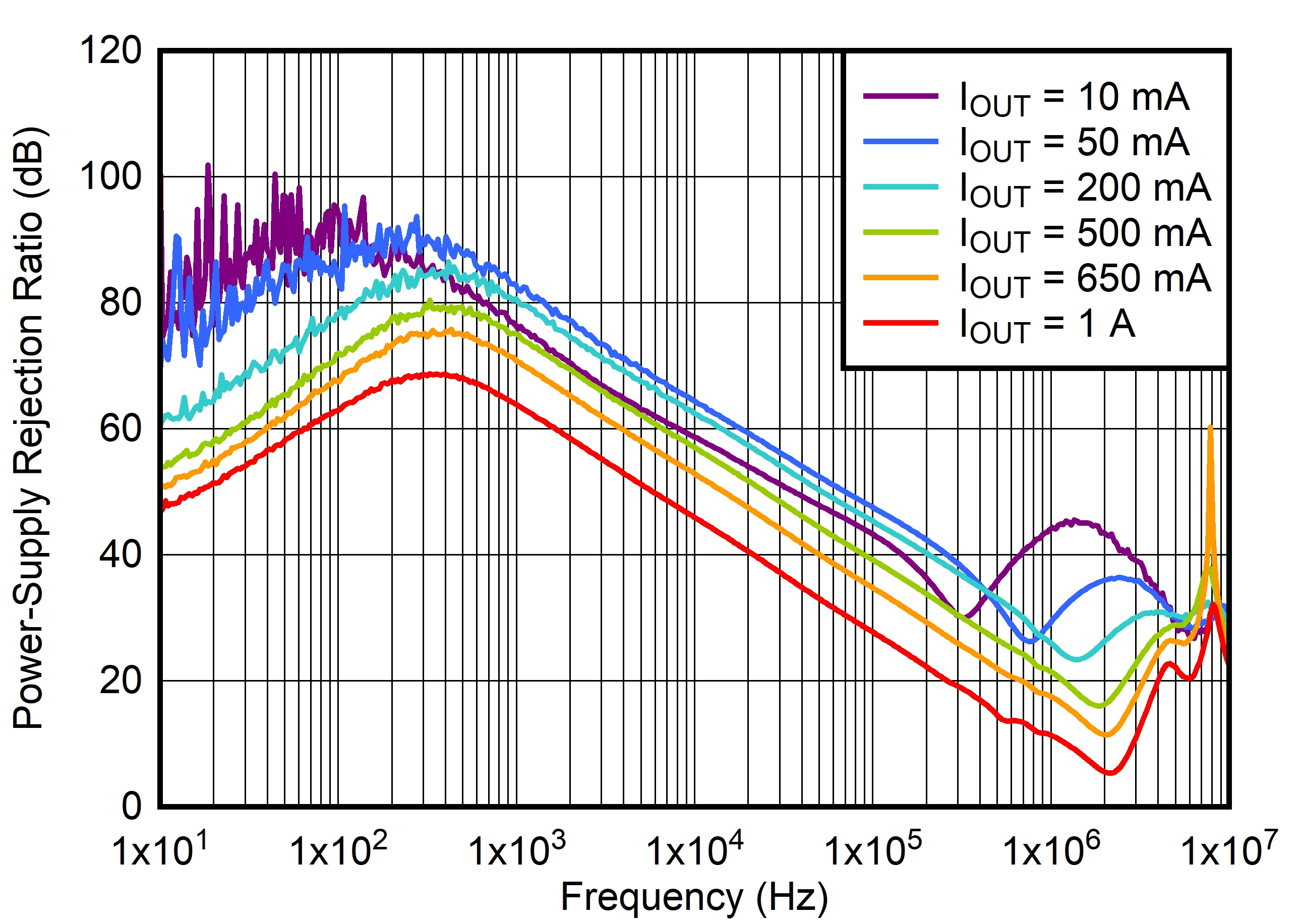

Figure 6-25 PSRR vs Frequency and IOUT
YCK package, VOUT = 0.8 V
Figure 6-27 Output Noise vs Frequency and IOUT

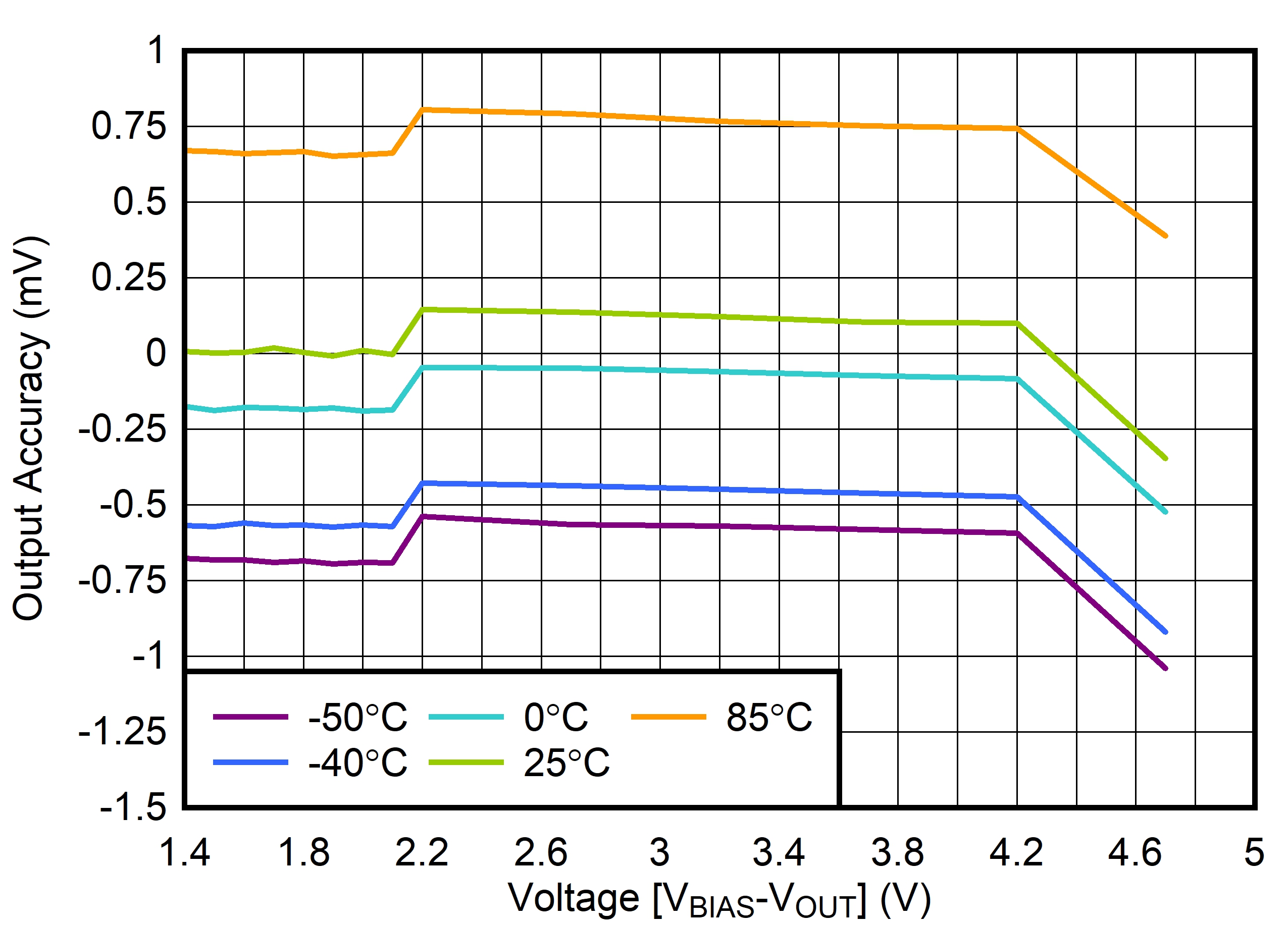

Figure 6-2 Output Voltage Accuracy vs VBIAS

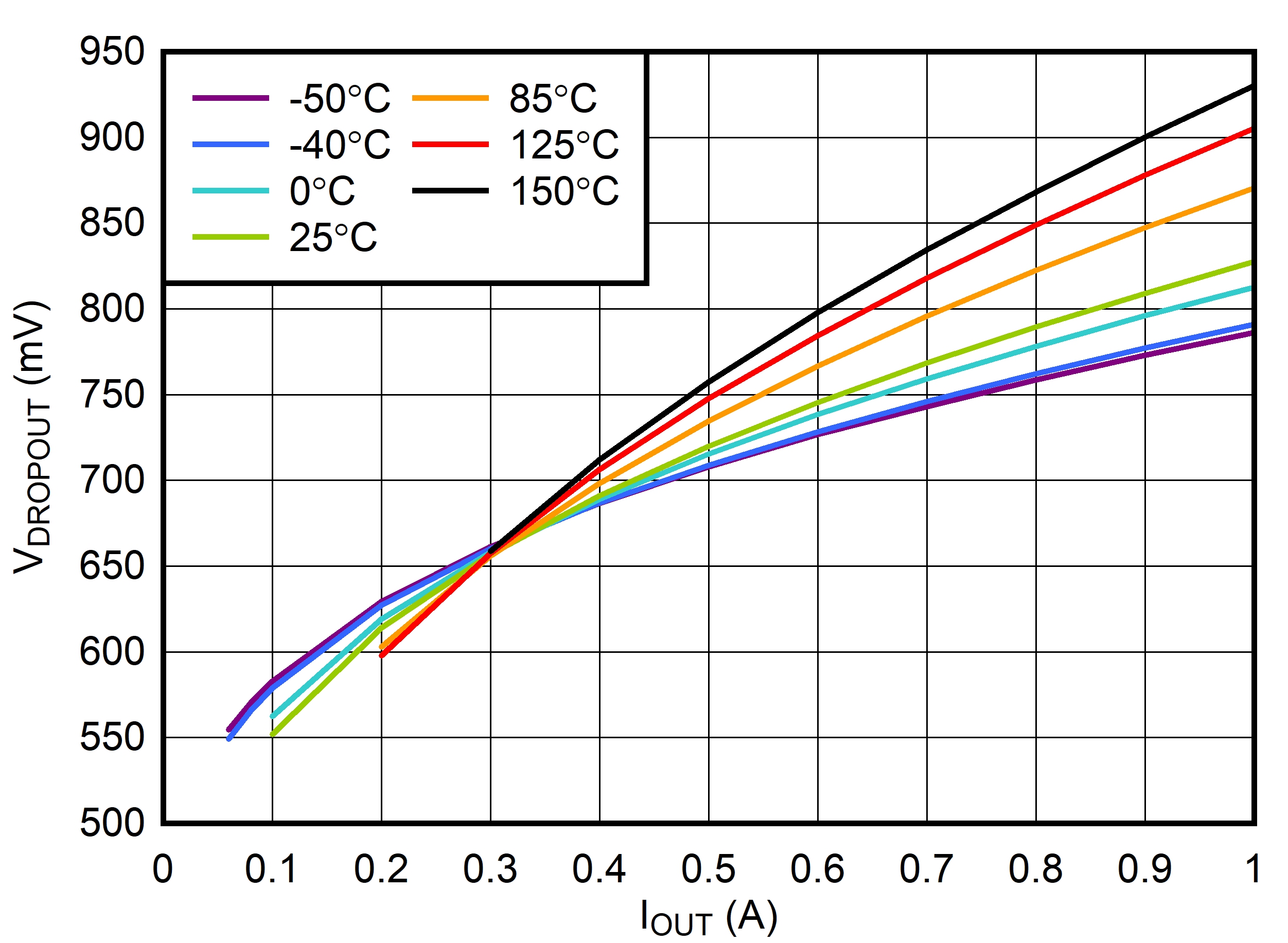

Figure 6-4 VIN Dropout Voltage vs IOUT

Figure 6-6 VBIAS Input Current vs VBIAS
IOUT = 0 mA
Figure 6-8 VIN Shutdown IQ vs VIN

Figure 6-10 VOUT Foldback Current Limit vs Output Current

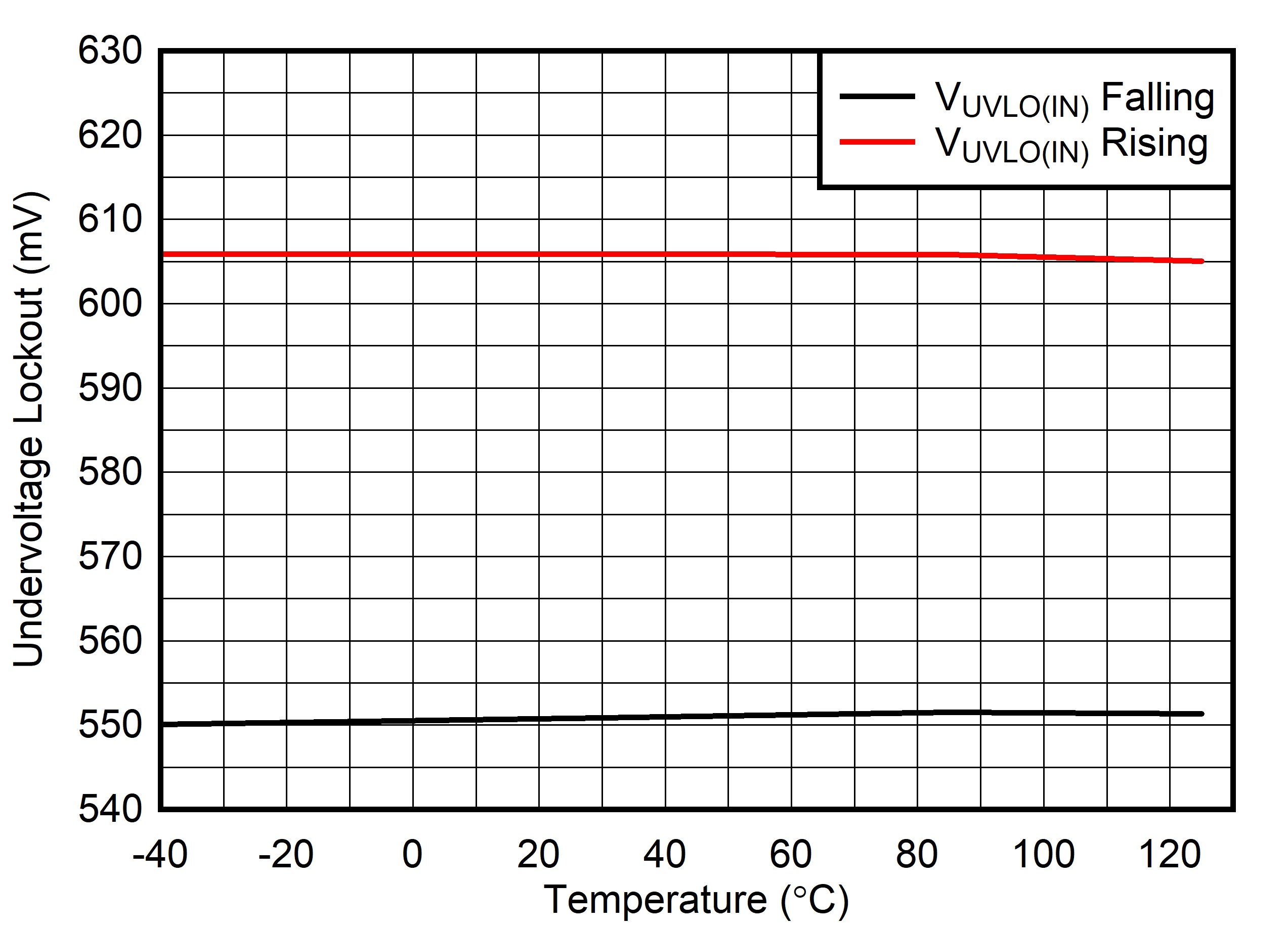

Figure 6-12 VIN UVLO vs Temperature
tr = 1 μs
Figure 6-14 Start-Up With VBIAS Before VIN
tr = 1 μs
Figure 6-16 Start-Up With VIN and VBIAS Before VEN
tr = tf = 10 μs, IOUT = 1 mA
Figure 6-18 Line Transient From 1 V to 2.2 V
tr = tf = 10 μs, IOUT = 1 A
Figure 6-20 Line Transient From 1 V to 2.2 V
tr = tf = 20 μs
Figure 6-22 Load Transient From 100 μA to 1 A
CBIAS = 0 μF, IOUT = 1 A

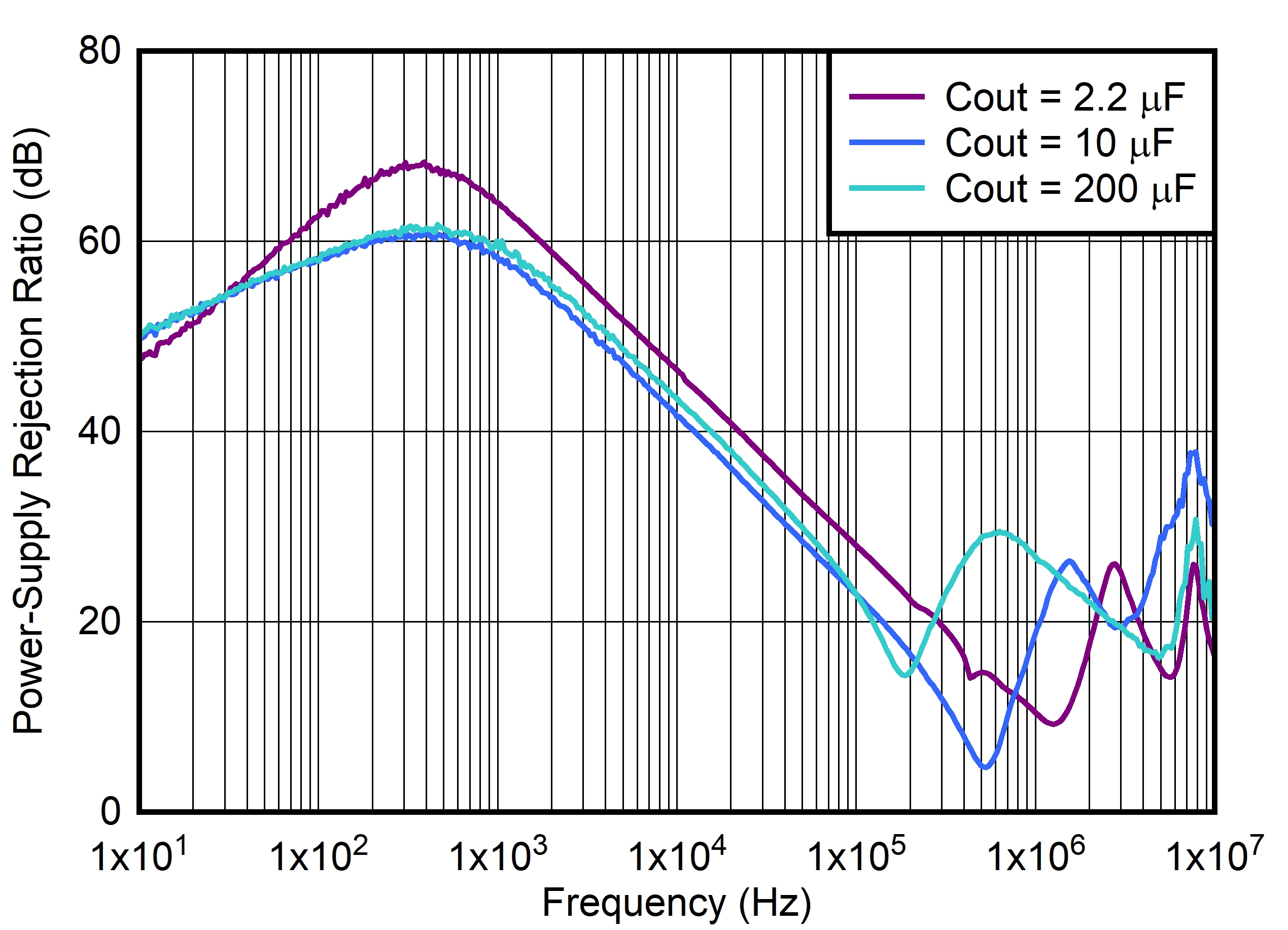

Figure 6-24 PSRR vs Frequency and COUT
CBIAS = 0 μF
Figure 6-26 PSRR vs Frequency and VBIAS – VOUT
DRV package, VOUT = 1.8 V, BIAS = 5 V
Figure 6-28 Output Noise vs Frequency and IOUT
