5.4.7 Reset Levels

The TPS659037 device resource control registers are defined by three categories:

  • POR registers
  • HW (HARDWARE) registers
  • SWO (SWITCHOFF) registers

These registers are associated to three levels of reset as described below:

  • Power-on reset (POR)
    • Power-on reset happens when the TPS659037 device gets its supplies and transition from the NOSUPPLY state to the BACKUP state. This is the global device reset.
    • Additionally, SMPS_THERMAL_STATUS, SMPS_SHORT_STATUS,
      SMPS_POWERGOOD_MASK, LDO_SHORT_STATUS and SWOFF_STATUS registers are in POR domain. This list is indicative only.
  • HWRST – Hardware reset
    • Hardware reset happens when any OFF request is configured to generate a hardware reset. This reset triggers a transition to the OFF state from either the ACTIVE or SLEEP state (execute either the ACT2OFF or SLP2OFF sequence).
  • SWORST – Switch-off reset
    • Switch-off reset happens when any OFF request is configured to not generate a hardware reset. This reset acts as the HWRST, except only the SWO registers are reset. The device goes in the OFF state, from either ACTIVE or SLEEP, and therefore executes the ACT2OFF or SLP2OFF sequence.
    • Power resource control registers for SMPS and LDO voltage levels and operating mode control are in SWORST domain. Additionally some registers control the 32-kHz, REGENx and SYSENx, watchdog, external charger control, and VSYS_MON comparator. This list is indicative only.

Table 5-15 lists the reset levels, and Figure 5-25 shows the reset levels versus registers.

Table 5-15 Reset Levels

LEVEL RESET TAG REGISTERS AFFECTED COMMENT
0 POR POR, HW, SWO This reset level is the lowest level, for which all registers are reset.
1 HWRST HW, SWO During hardware reset (HWRST), all registers are reset except the POR registers.
2 SWORST SWO Only the SWO registers are reset.

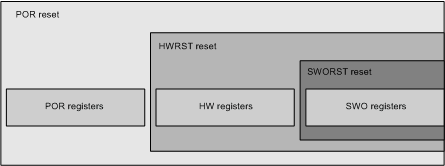

TPS659037 por_reset_v_registers_slis165.gifFigure 5-25 Reset Levels versus Registers
