Manual Mode

Manual mode allows the external host processor to directly select the analog input channel. Figure 7 lists the steps for operating the device in manual mode.

TLA2528 manual_mode_tla_rev1.gifFigure 7. Device Operation in Manual Mode

Provide an I2C start or restart frame to initiate a conversion, as shown in the conversion start frame of Figure 8, after configuring the device registers. ADC data can be read in subsequent I2C frames. The number of I2C frames required to read conversion data depends on the output data frame size; see the Output Data Format section for more details. A new conversion is initiated on the ninth falling edge of SCL (ACK bit) when the last byte of output data is read.

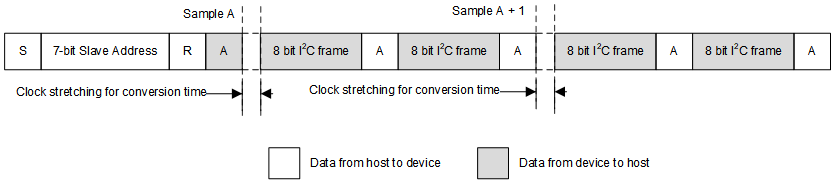

TLA2528 manual_mode_cycle_time.gifFigure 8. Starting a Conversion and Reading Data in Manual Mode
