10 Typical Characteristics: V_S = 5 V

Test conditions unless otherwise noted: V_S+ = 5 V, V_S– = 0 V, V_OCM = open, V_OUT = 2 Vpp, R_F = 2 kΩ, R_L = 2 kΩ Differential, G = 1 V/V, Single-Ended Input, Differential Output, Input and Output Referenced to mid-supply, T_A = 25°C unless otherwise noted.

THS4531 G027_Small-Signal_Frequency_Response.png

Figure 34. Small-Signal Frequency Response

THS4531 G029_Large-_and_Small-Signal_Pulse_Response.png

Figure 36. Large and Small-Signal Pulse Response

THS4531 G054_Diff_Slew_Rate_vs_Vout_Step_RL=200.png

Figure 38. Differential Slew Rate vs V_OUT Step

THS4531 G032_10_kHz_Output_Spectrum_on_AP_Analyzer_AP_Load_=_100k.png

Figure 40. 10 kHz FFT On Audio Analyzer

THS4531 G034_Harmonic_Distortion_vs_Output_Voltage_at_1MHz_RF=2k_RL=2k.png

Figure 42. Harmonic Distortion vs Output Voltage at 1 MHz

THS4531 G036_Hamonic_Distortion_vs_Load_at_1MHz_RF=2k.png

Figure 44. Harmonic Distortion vs Load at 1 MHz

THS4531 G038_Two-Tone_Second-_and_Third-Order_Intermodulation_Distortion_vs_Frequency_RF=2k_RL=2k.png

Figure 46. Two-Tone, 2^nd and 3^rdOrder Intermodulation Distortion vs Frequency

THS4531 G040_Single-Ended_Output_Saturation_Voltage_vs_Load_Current.png

Figure 48. Single-Ended Output Saturation Voltage vs Load Current

THS4531 G042_Frequency_Response_vs_CLOAD_RLOAD_=_2k.png

Figure 50. Frequency Response vs C_LOAD

THS4531 G044_Rejection_Ratio_vs_Frequency.png

Figure 52. Rejection Ratio vs Frequency

THS4531 G046_Turn_off_Time_RF=2k_RL=200.png

Figure 54. Turn-Off Time

THS4531 G048_Main_Amplifier_Differential_Open-Loop_Gain_and_Phase.png

Figure 56. Main Amplifier Differential Open-Loop Gain and Phase vs Frequency

THS4531 G050_Vocm_Small-Signal_Frequency_Response_RF=2k.png

Figure 58. V_OCM Small-Signal Frequency Response

THS4531 G052_Vocm_Input_Impedance_vs_Frequency.png

Figure 60. V_OCM Input Impedance vs Frequency

THS4531 G062_IOC_Drift_5V.png

Figure 62. Input Offset Current Temperature Drift Histogram

THS4531 G064_IOV_25C_5V.png

Figure 64. Input Offset Voltage Histogram

THS4531 G066_IOV_Over_Temp_5V.png

Figure 66. Input Offset Voltage vs Temperature

THS4531 G028_Large-Signal_Frequency_Response.png

Figure 35. Large-Signal Frequency Response

THS4531 G030_Slew_Rate_vs_Vout_Step_RL=200.png

Figure 37. Single-Ended Slew Rate vs V_OUT Step

THS4531 G031_Overdrive_Recovery.png

Figure 39. Overdrive Recovery

THS4531 G033_Harmonic_Distortion_vs_Frequency_RF=2k_RL=2k.png

Figure 41. Harmonic Distortion vs Frequency

THS4531 G035_Harmonic_Distortion_vs_Gain_at_1MHz_RF=2k_RL=2k.png

Figure 43. Harmonic Distortion vs Gain at 1 MHz

THS4531 G037_Harmonic_Distortion_vs_Vocm_at_1MHz_RF=2k_RL=2k.png

Figure 45. Harmonic Distortion vs V_OCM at 1 MHz

THS4531 G039_Single-Ended_Output_Voltage_Swing_vs_Load_Resistance.png

Figure 47. Single-Ended Output Voltage Swing vs Load Resistance

THS4531 G041_Main_Amplifier_Differential_Output_Impedance_vs_Frequency.png

Figure 49. Main Amplifier Differential Output Impedance vs Frequency

THS4531 G043_RO_vs_CLOAD_RLOAD_=_2k.png

Figure 51. R_O vs C_LOAD

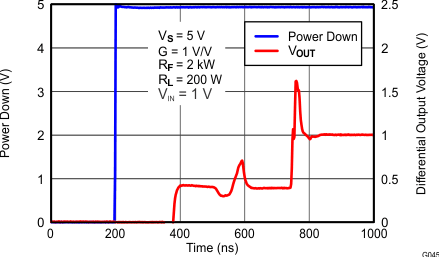

THS4531 G045_Turn_on_Time_RF=2k_RL=200.gif

Figure 53. Turn-On Time

THS4531 G047_Input-Referred_Voltage_Noise_and_Current_Noise_Spectral_Density.png

Figure 55. Input-Referred Voltage Noise and Current Noise Spectral Density

THS4531 G049_Output_Balance_Error_vs_Frequency_RF=2k_RL=1k.png

Figure 57. Output Balance Error vs Frequency

THS4531 G051_Vocm_Large-_and_Small-Signal_Pulse_Response_RF=2k.png

Figure 59. V_OCM Large and Small-Signal Pulse Response

THS4531 G061_IOC_25C_5V.png

Figure 61. Input Offset Current Histogram

THS4531 G063_IOC_Over_Temp_5V.png

Figure 63. Input Offset Current vs Temperature

THS4531 G065_IOV_Drift_5V.png

Figure 65. Input Offset Voltage Temperature Drift Histogram
