8.7 Typical Characteristics: ±15 V

at +VS = 15 V, –VS = –15 V, TA ≅ 25°C, RLOAD = 100 Ω to midsupply, noninverting gain (G) = 5 V/V. RGT package : RF = 576 Ω, RG = 143 Ω, or DDA package: RF = 798 Ω, RG = 200 Ω (unless otherwise noted)

VO = 2 VPPRGT package

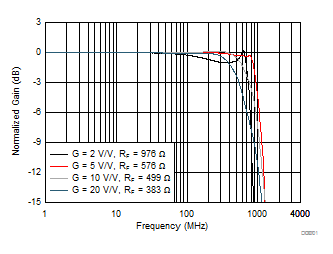

Figure 8-1 Noninverting Small-Signal Frequency Response
VO = 2 VPP
Figure 8-3 Inverting Small-Signal Frequency Response
RGT package; see Figure 10-1 for setup information
Figure 8-5 Frequency Response vs CLOAD
DDA package

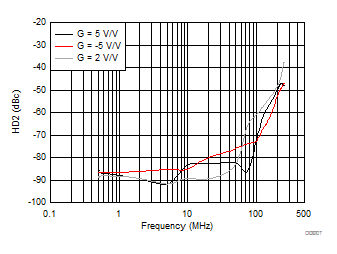

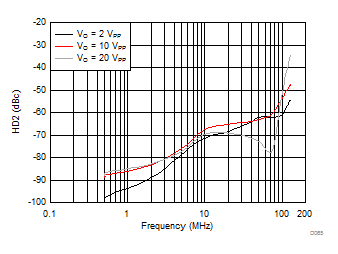

Figure 8-7 HD2 vs Frequency
VO = 2 VPPRGT package
Figure 8-9 HD2 vs Frequency

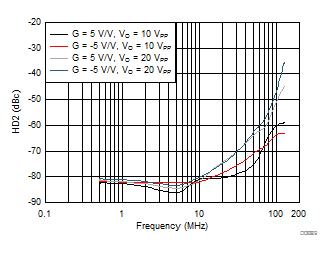

Figure 8-11 HD2 vs Frequency Across Output Swing
Figure 8-13 HD2 vs Output Swing
VO = 2 VPP

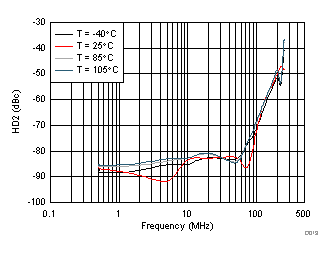

Figure 8-15 HD2 vs Frequency Across Temperature
VO = 2 VPPRLoad = 1 kΩ
Figure 8-17 Harmonic Distortion vs Frequency
±100-kHz frequency spacing

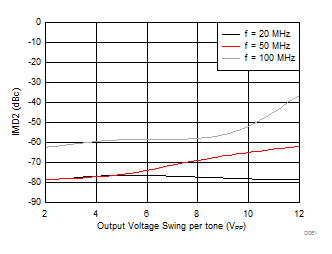

Figure 8-19 IMD2 vs Output Voltage Swing
Figure 8-21 Spot Input Noise vs Frequency
VO = 10 VPP

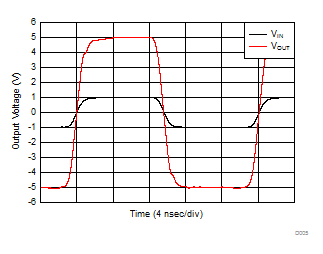

Figure 8-23 G = 5 V/V Pulse Response
VO = 10 VPP

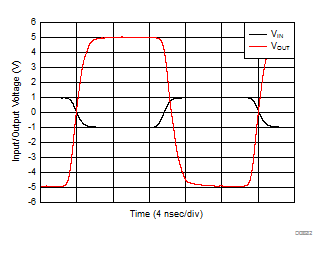

Figure 8-25 G = –5 V/V Pulse Response
Figure 8-27 Output Impedance vs Frequency

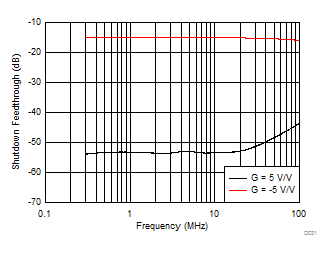

VIN = 2 VPP
Figure 8-29 Shutdown Feedthrough vs Frequency
A. Measured with devices soldered on TI EVM. Devices not turned off at any read points but load applied for a few milliseconds to measure VOUT and then removed.
Figure 8-31 Output Voltage Swing vs Output Current
7100 units at each supply

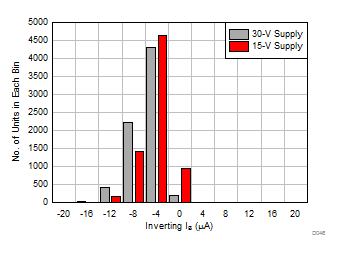

Figure 8-33 Inverting IB Distribution
Flash tested to keep TJ as close to TA as possible

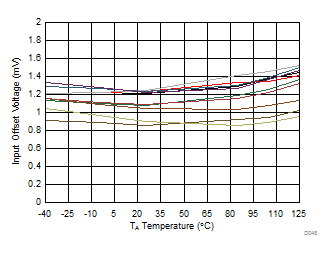

Figure 8-35 Input Offset Voltage Over Temperature
Flash tested to keep TJ as close to TA as possible

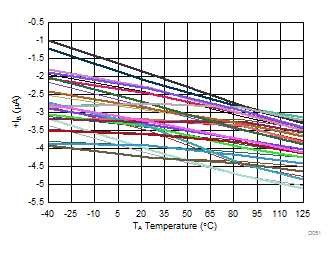

Figure 8-37 Noninverting IB Over Temperature
90 units at each supply
Figure 8-39 Inverting IB Drift Histogram
Device in shutdown mode to minimize self-heating, RGT package
Figure 8-41 TJ_SENSE Voltage vs Ambient Temperature
VO = 2 VPPDDA package
Figure 8-2 Noninverting Small-Signal Frequency Response
RGT package; see Section 9.4.4 section for more details
Figure 8-4 Frequency Response vs Output Swing
VO = 2 VPPRGT package

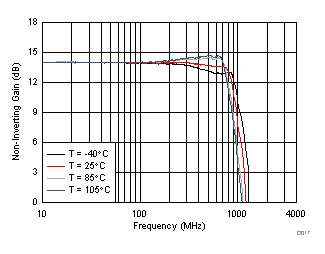

Figure 8-6 Frequency Response vs Temperature
DDA package

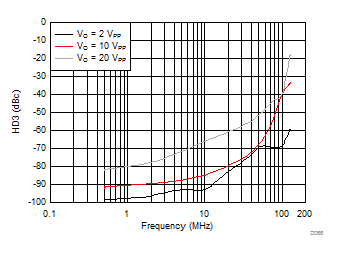

Figure 8-8 HD3 vs Frequency
VO = 2 VPPRGT package
Figure 8-10 HD3 vs Frequency

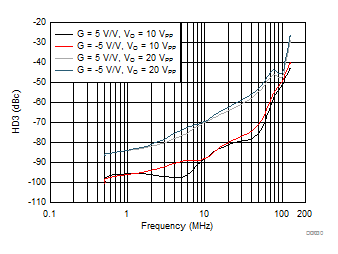

Figure 8-12 HD3 vs Frequency Across Output Swing

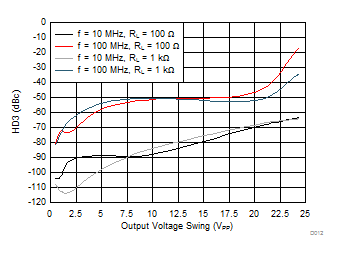

Figure 8-14 HD3 vs Output Swing

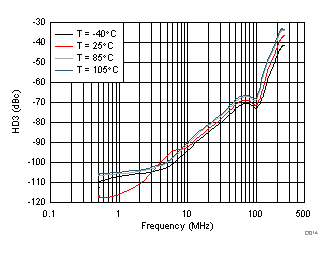

VO = 2 VPP
Figure 8-16 HD3 vs Frequency Across Temperature
VO = 5 VPP per tone±100-kHz frequency spacing

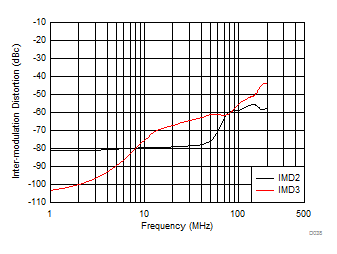

Figure 8-18 Intermodulation Distortion vs Frequency

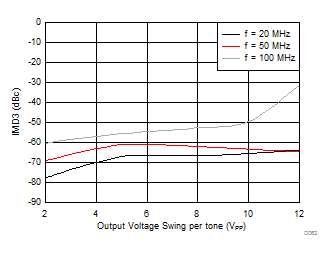

±100-kHz frequency spacing
Figure 8-20 IMD3 vs Output Voltage Swing
No load
Figure 8-22 Open-Loop Transimpedance Gain and Phase vs Frequency
VO = 20 VPP
Figure 8-24 G = 5 V/V Pulse Response
VO = 20 VPP
Figure 8-26 G = –5 V/V Pulse Response

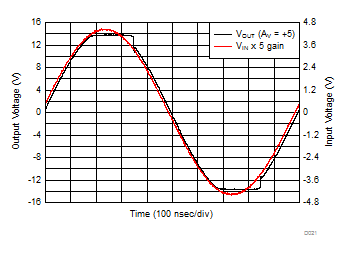

Figure 8-28 Overdrive Recovery Time
Figure 8-30 Quiescent Current vs Supply Voltage

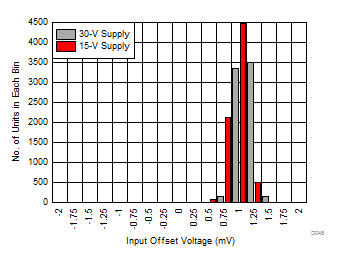

7100 units at each supply
Figure 8-32 Input Offset Voltage Distribution
7100 units at each supply
Figure 8-34 Noninverting IB Distribution
Flash tested to keep TJ as close to TA as possible
Figure 8-36 Inverting IB Over Temperature
90 units at each supply
Figure 8-38 Input Offset Voltage Drift Histogram

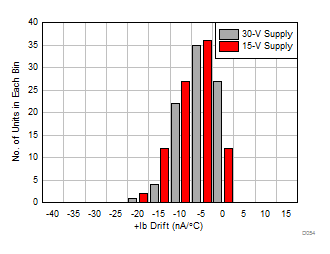

90 units at each supply
Figure 8-40 Noninverting IB Drift Histogram
