ZHCSUQ5A June   2003  – February 2024 SN74AHC4066

PRODUCTION DATA

  1.   1
  2. 特性
  3. 应用
  4. 说明
  5. Pin Configuration and Functions
  6. Specifications
    1. 5.1  Absolute Maximum Ratings
    2. 5.2  ESD Ratings
    3. 5.3  Thermal Information
    4. 5.4  Recommended Operating Conditions
    5. 5.5  Electrical Characteristics
    6. 5.6  Switching Characteristics
    7. 5.7  Switching Characteristics
    8. 5.8  Switching Characteristics
    9. 5.9  Analog Switching Characteristics
    10. 5.10 Operating Characteristics
  7. Parameter Measurement Information
  8. Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Device Functional Modes
  9. Device and Documentation Support
    1. 8.1 Documentation Support
      1. 8.1.1 Related Documentation
    2. 8.2 接收文档更新通知
    3. 8.3 支持资源
    4. 8.4 Trademarks
    5. 8.5 静电放电警告
    6. 8.6 术语表
  10. Revision History
  11. 10Mechanical, Packaging, and Orderable Information

封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • D|14
  • RGY|14
  • DB|14
  • DGV|14
  • PW|14
  • N|14
  • NS|14
散热焊盘机械数据 (封装 | 引脚)
订购信息

Parameter Measurement Information

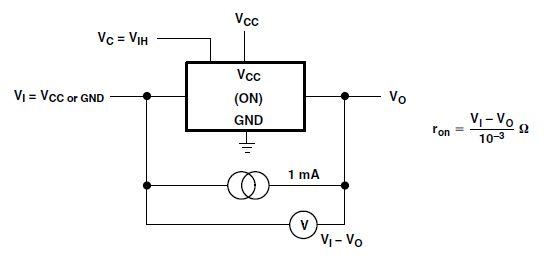

GUID-20231020-SS0I-K6JR-D3Z9-PMTGXJNJD6ZB-low.jpg Figure 6-1 ON-State Resistance Test Circuit
GUID-20231020-SS0I-HLP9-BVJV-4MRKS0NFK40J-low.jpg Figure 6-2 OFF-State Switch Leakage-Current Test Circuit

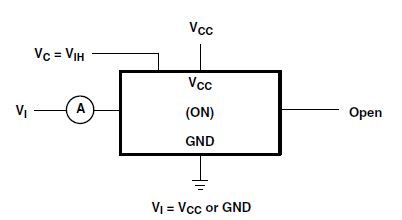

GUID-20231020-SS0I-R6RK-2FPT-N9NMQG8LFSMP-low.jpg Figure 6-3 ON-State Leakage-Current Test Circuit
GUID-20231020-SS0I-BFX0-T7SB-C0GTDQC6VSMN-low.jpg Figure 6-4 Propagation Delay Time, Signal Input to Signal Output

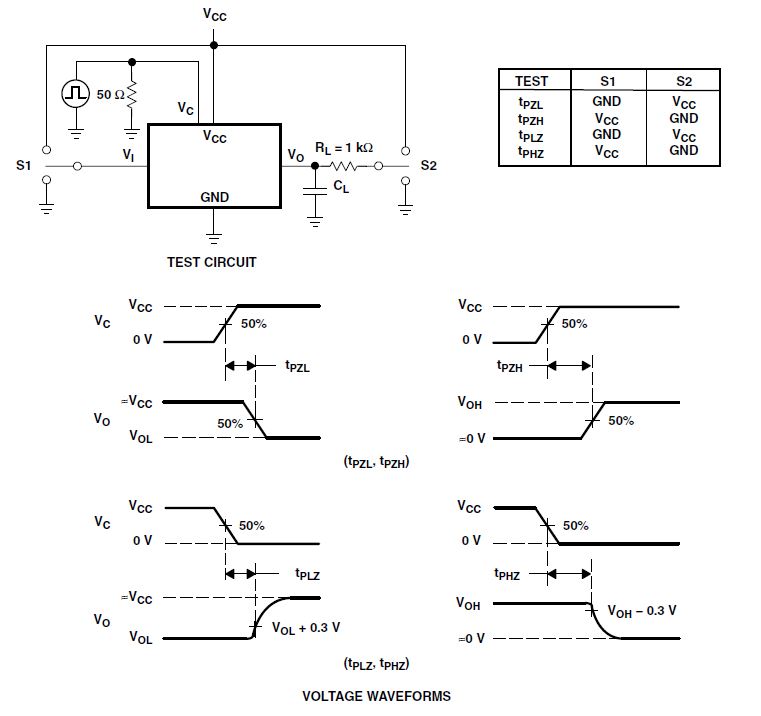

GUID-20231020-SS0I-59FX-QVHX-V8F8RMZ665GK-low.jpg Figure 6-5 Switching Time (tPZL, tPLZ, tPZH, tPHZ), Control to Signal Output

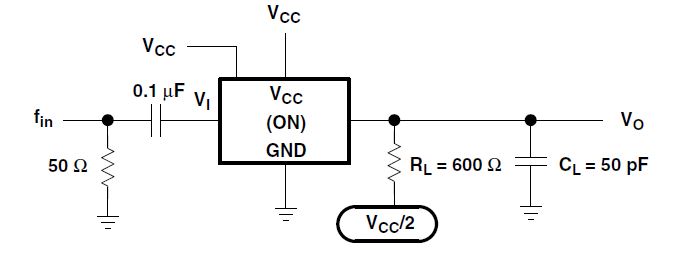

GUID-20231020-SS0I-JM4C-LFVF-GT8GLJKK7SZX-low.jpg Figure 6-6 Frequency Response (Switch On)

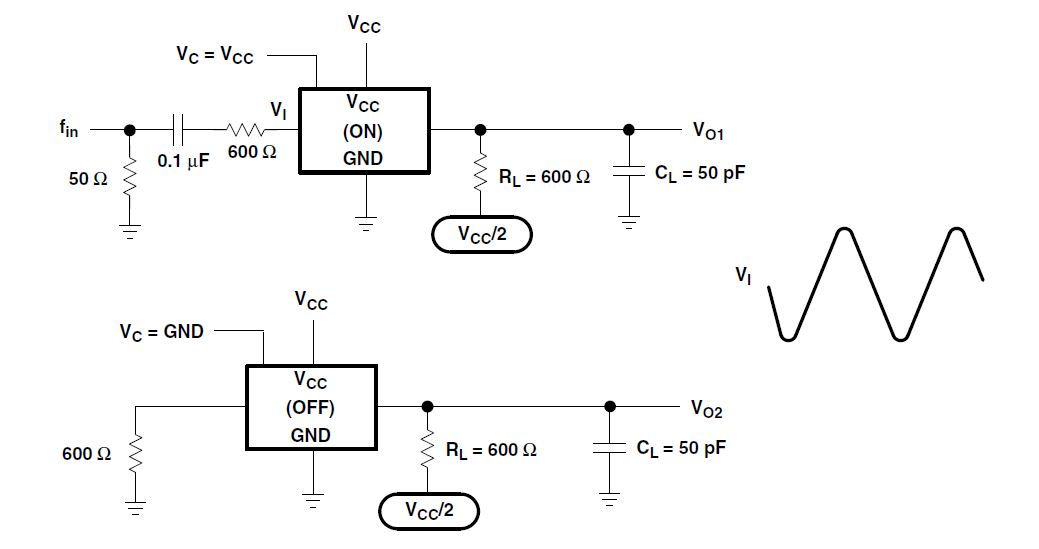

GUID-20231020-SS0I-Q36H-WZRJ-FH59FGQZTJFD-low.jpg Figure 6-7 Crosstalk Between Any Two Switches
GUID-20231020-SS0I-TQ2Q-LG3P-TK0HHLJN2TH2-low.jpg Figure 6-8 Crosstalk (Control Input - Switch Output)
GUID-20231020-SS0I-TFRX-H26S-ZTMFMCG12HK1-low.jpg Figure 6-9 Feed-Through Attenuation (Switch Off)

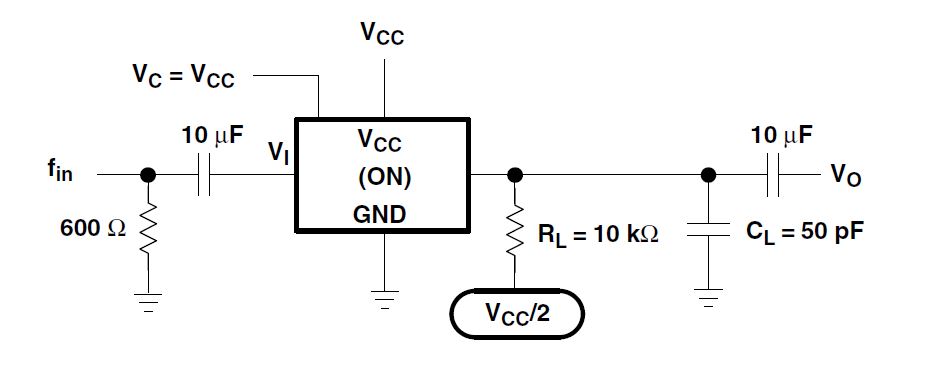

GUID-20231020-SS0I-HBLC-162M-DDXN70ZMJBF5-low.jpg Figure 6-10 Sine-Wave Distortion
