4 Pin Configuration and Functions

GUID-61464B6C-8B42-43BF-B2C6-03E9CD646C43-low.svgFigure 4-1 D or PW Package, 14-Pin SOIC or TSSOP (Top View)

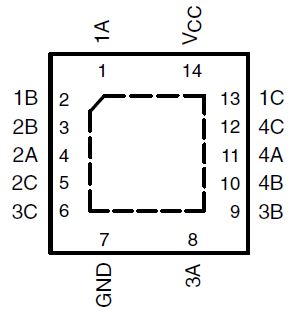

GUID-20231020-SS0I-VQXT-X22K-9DGS872KV39W-low.jpgFigure 4-2 RGY Package, 14-Pin QFN (Top View)
Table 4-1 Pin Functions
PIN TYPE(1) DESCRIPTION
NAME NO.
1A 1 I/O Switch 1 input/output
1B 2 I/O Switch 1 output/input
2B 3 I/O Switch 2 output/input
2A 4 I/O Switch 2 input/output
2C 5 I Switch 2 control
3C 6 I Switch 3 control
GND 7 — Ground
3A 8 I/O Switch 3 input/output
3B 9 I/O Switch 3 output/input
4B 10 I/O Switch 4 output/input
4A 11 I/O Switch 4 input/output
4C 12 I Switch 4 control
1C 13 I Switch 1 control
VCC 14 — Power
(1) I = input, O = output
