8 Parameter Measurement Information

cmos_output_test_circuit_llsee8.gifFigure 9. CMOS Output Test Circuit

8.1 Test Patterns

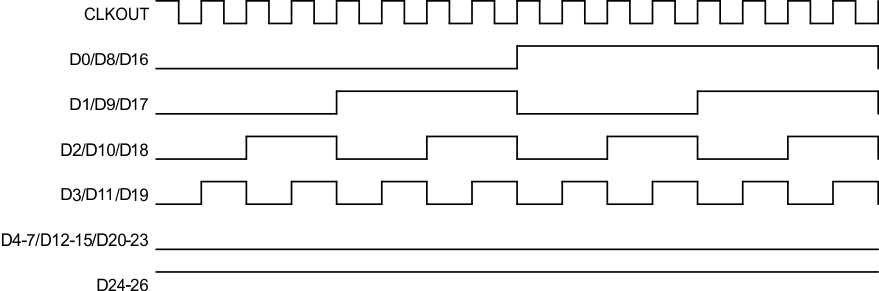

grayscale_pattern_llsee8.gifFigure 10. Grayscale Pattern (CLKPOL = Low); Used for Typical Power Data

Table 1. Grayscale Pattern Data; Repeats Every 16 Words

Word D[26:0]
1 0x7000000
2 0x7080808
3 0x7040404
4 0x70C0C0C
5 0x7020202
6 0x70A0A0A
7 0x7060606
8 0x70E0E0E
9 0x7010101
10 0x7090909
11 0x7050505
12 0x70D0D0D
13 0x7030303
14 0x70B0B0B
15 0x7070707
16 0x70F0F0F

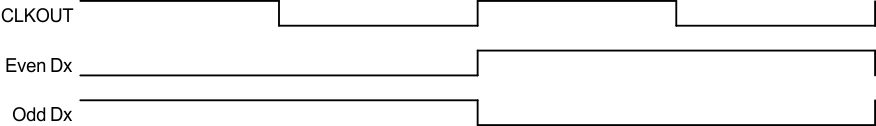

1010_pattern_llsee8.gifFigure 11. 1010 Pattern (CLKPOL = Low); Used for Maximum Power Data

Table 2. 1010 Pattern Data; Repeats Every 2 Words

Word D[26:0]
1 0x2AAAAAA
2 0x5555555
