7.3.7.2.1.6 Sampling Rate: 96 kHz or 88.2 kHz

Figure 34 and Figure 35 respectively show the magnitude response and the pass-band ripple for a decimation filter with a sampling rate of 96 kHz or 88.2 kHz. Table 13 lists the specifications for a decimation filter with an 96-kHz or 88.2-kHz sampling rate.

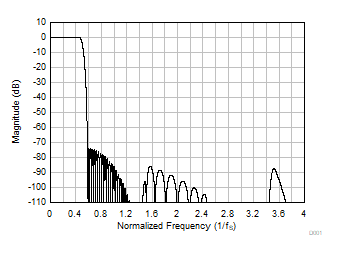

PCM1840 D001_FS96_FIR_MR_SBAS892.gifFigure 34. Linear Phase Decimation Filter Magnitude Response

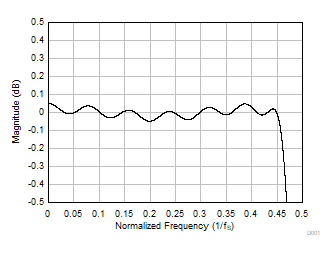

PCM1840 D001_FS96_FIR_PR_SBAS892.gifFigure 35. Linear Phase Decimation Filter Pass-Band Ripple

Table 13. Linear Phase Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Pass-band ripple Frequency range is 0 to 0.454 × fS –0.05 0.05 dB
Stop-band attenuation Frequency range is 0.58 × fS to 4 × fS 73.6 dB
Frequency range is 4 × fS onwards 97.9
Group delay or latency Frequency range is 0 to 0.454 × fS 17.1 1/fS
