7.3.7.1 Digital High-Pass Filter

To remove the DC offset component and attenuate the undesired low-frequency noise content in the record data, the device supports a fixed high-pass filter (HPF) with –3-dB cut-off frequency of 0.00025 × fS. The HPF is not a channel-independent filter but is globally applicable for all the ADC channels. This HPF is constructed using the first-order infinite impulse response (IIR) filter, and is efficient enough to filter out possible DC components of the signal. Table 6 shows the fixed –3-dB cutoff frequency value. Figure 23 shows a frequency response plot for the HPF filter.

Table 6. HPF Cutoff Frequency Value

-3-dB CUTOFF FREQUENCY VALUE -3-dB CUTTOFF FREQUENCY AT 16 kHz SAMPLE RATE -3-dB CUTTOFF FREQUENCY AT 48 kHz SAMPLE RATE
0.00025 × fS 4 Hz 12 Hz

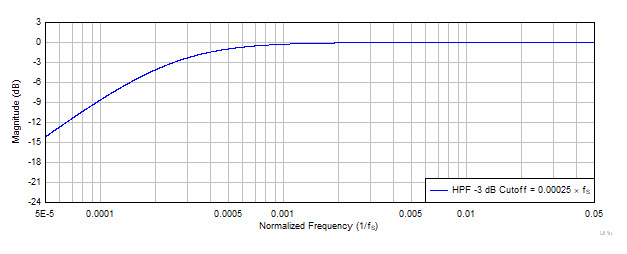

PCM1840 DPlot_SBAS989_HPFD.gifFigure 23. HPF Filter Frequency Response Plot
