7.8 Typical Characteristics: ±2.5-V to ±1.5-V Split Supply

with PD = VCC and TA ≈ 25°C , gain mentioned in V/V (unless otherwise noted)

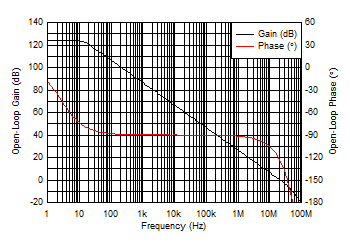

OPA2834 D313_aol_phase.gif
Figure 29. Open-Loop Gain and Phase vs Frequency
OPA2834 D100_Noise_Frequency.gif
Measured then fit to ideal 1/f model
Figure 31. Input Noise Density vs Frequency

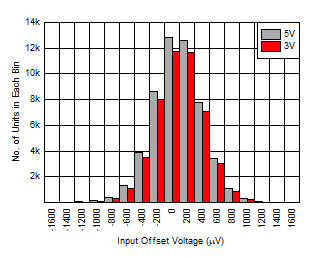

OPA2834 D151_offsethistogram_new.gif
54000 units at each supply voltage
Figure 33. Input Offset Voltage Distribution

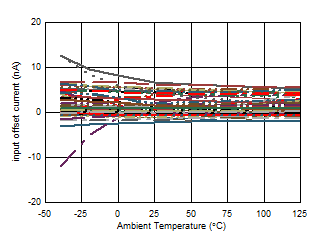

OPA2834 D154_input_offset_current.gif
32 units at 5-V and 3-V supply
Figure 35. Input Offset Current vs Ambient Temperature

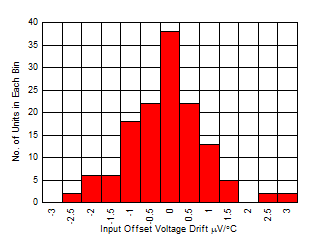

OPA2834 D142_offsetDrift_histogram.gif
136 units, –40°C to +125°C
Figure 37. Input Offset Voltage Drift Distribution

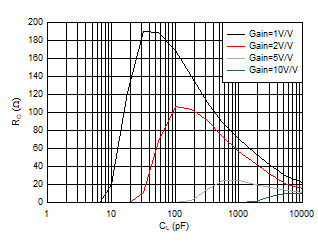

OPA2834 D301_Riso_vs_Cload.gif
See Figure 49,
Recommended value of RO for targeting 30° phase margin
Figure 39. Output Resistor (RO) vs CL
OPA2834 D316_Outputswingvsresisotor.gif
Figure 41. Output Voltage Swing vs Load Resistor
OPA2834 D107_Crosstalk.gif
Figure 43. Crosstalk vs Frequency
OPA2834 D314_zout_frequency.gif
Figure 30. Closed-Loop Output Impedance vs Frequency

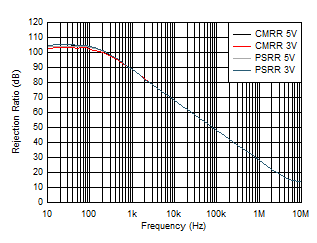

OPA2834 D315_CMRR_PSRR_FREQ.gif
Figure 32. CMRR and PSRR vs Frequency

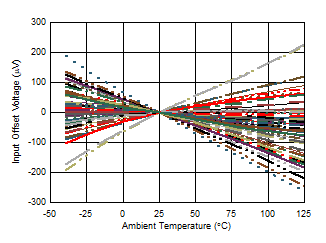

OPA2834 D141_offset_vs_Temperature.gif
32 units at 5-V and 3-V supply, Input offset voltage calibrated to 0V at 25°C
Figure 34. Input Offset Voltage vs Ambient Temperature
OPA2834 D153_biascurrentvstemp.gif
32 units at 5-V and 3-V supply
Figure 36. Input Bias Current vs Ambient Temperature
OPA2834 D150_quiescent_current.gif
32 units at 5-V and 3-V supply
Figure 38. Supply Current vs Ambient Temperature

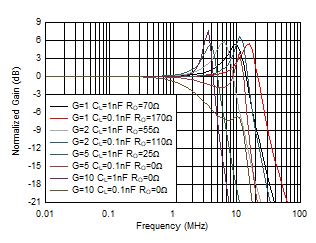

OPA2834 D302_recommededROvsCL_Frequencyresponse.gif
See Figure 49
Figure 40. Small-Signal Frequency Response vs CL
With Recommended RO
OPA2834 D317_Vos_Vcm.gif
32 units at 5-V and 3-V supplies
Figure 42. Input Offset Voltage vs Input Common-Mode Voltage

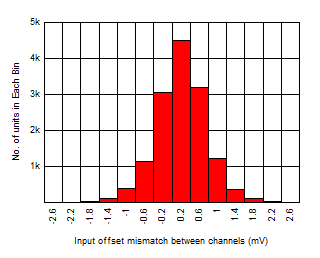

OPA2834 D300_OffsetMismatch_histogram.gif
Figure 44. Input Offset Mismatch (Between Channel A and Channel B) Distribution
