7.7 Typical Characteristics: VS = 3.0 V

VS+ = 3 V, VS– = 0 V, RF = 0 Ω, RL = 5 kΩ, CL = 4 pF, input and output referenced to mid-supply, and TA ≈ 25°C (unless otherwise noted)
OPA2834 D114_3V_NonInv_SSBW.gif
VO = 20 mVPP
Figure 15. Noninverting Small-Signal Frequency Response

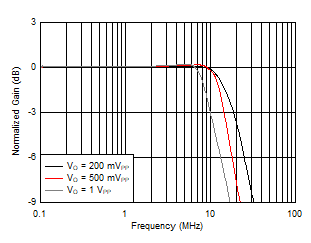

OPA2834 D116_3V_NonInv_LSBW.gif
Gain = 2 V/V
Figure 17. Noninverting Large-Signal Bandwidth

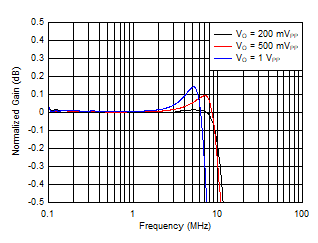

OPA2834 D207_NEW_3V_noninverting_flatness.gif
Gain = 2 V/V
Figure 19. Noninverting Large-Signal Frequency Response Flatness
OPA2834 D308_3V_NonInv_Stepresonse.gif
Gain = 2 V/V
Figure 21. Noninverting Step Response

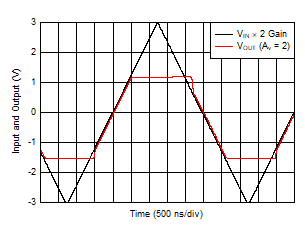

OPA2834 D311_3V_Noninv_Overdrive.gif
Gain = 2 V/V
Figure 23. Noninverting Overdrive Recovery
OPA2834 D122_3V_HD_Vs_Frequency.gif
VO = 1 VPP
Figure 25. Harmonic Distortion vs Frequency
OPA2834 D123_3V_HD_vs_Vout.gif
f = 100 kHz
Figure 27. Harmonic Distortion vs Output Voltage
OPA2834 D115_3V_Inv_SSBW.gif
VO = 20 mVPP
Figure 16. Inverting Small-Signal Frequency Response

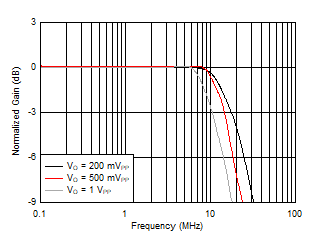

OPA2834 D117_3V_Inv_LSBW.gif
Gain = –1 V/V
Figure 18. Inverting Large-Signal Bandwidth
OPA2834 D208_NEW_3V_inverting_flatnesslsbw.gif
Gain = –1 V/V
Figure 20. Inverting Large-Signal Frequency Response Flatness

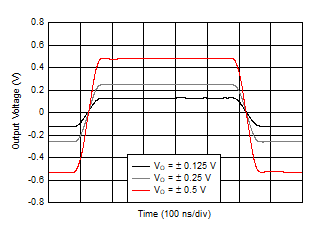

OPA2834 D309_New_3V_Inverting_step_response.gif
Gain = –1 V/V
Figure 22. Inverting Step Response

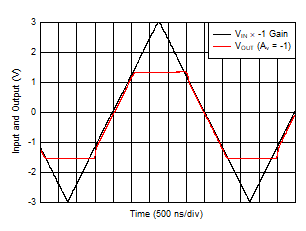

OPA2834 D310_Inverting_3V_OverdriveRecovery.gif
Gain = –1 V/V
Figure 24. Inverting Overdrive Recovery
OPA2834 D312_3V_HD_Vs_Rload.gif
VO = 1 VPP, f = 100 kHz
Figure 26. Harmonic Distortion vs RLOAD
OPA2834 D204_New_3V_HD_Vs_Gain.gif
f = 100 kHz, VO = 1 VPP
Figure 28. Harmonic Distortion vs Gain Magnitude
