7.6 Typical Characteristics: Vs = 5 V

VS+ = 5 V, VS– = 0 V, RF = 0 Ω, RL = 5 kΩ, CL = 4 pF, input and output referenced to mid-supply, and TA ≈ 25°C (unless otherwise noted)

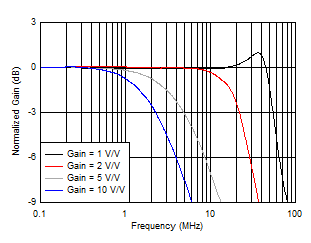

OPA2834 D101_NonInv_5V_SSBW.gif
VO = 20 mVPP
Figure 1. Noninverting Small-Signal Frequency Response

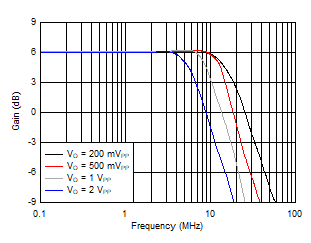

OPA2834 D103_NonInv_5V_LSBW.gif
Gain = 2 V/V
Figure 3. Noninverting Large-Signal Frequency Response
OPA2834 D206_new_5V_noninverting_flatnesslsbw.gif
Gain = 2 V/V
Figure 5. Noninverting Large-Signal Response Flatness
OPA2834 D303_noninverting_Stepresponse_5V.gif
Gain = 2 V/V
Figure 7. Noninverting Step Response
OPA2834 D305_5V_overdrive_noninverting.gif
Gain = 2 V/V
Figure 9. Noninverting Overdrive Recovery
OPA2834 D110_5V_HD_vs_frequency.gif
VO = 2 VPP
Figure 11. Harmonic Distortion vs Frequency
OPA2834 D111_5V_HD_vs_Vout.gif
f = 100 kHz
Figure 13. Harmonic Distortion vs Output Voltage

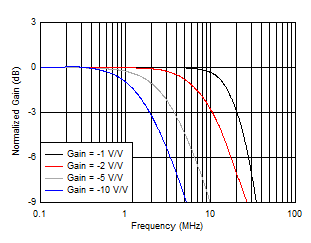

OPA2834 D102_Inv_5V_SSBW.gif
VO = 20 mVPP
Figure 2. Inverting Small-Signal Frequency Response

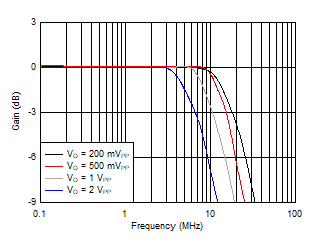

OPA2834 D104_Inv_5V_LSBW.gif
Gain = –1 V/V
Figure 4. Inverting Large-Signal Frequency Response

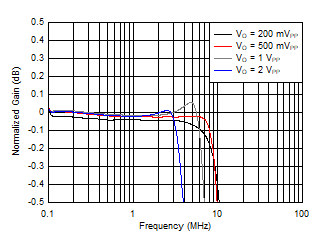

OPA2834 D205_NEW_5V_inverting_flatnesslsbw.gif
Gain = –1 V/V
Figure 6. Inverting Large-Signal Response Flatness

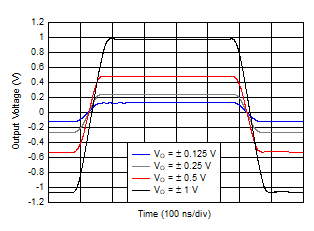

OPA2834 D304_inverting_Stepresponse_5V.gif
Gain = –1 V/V
Figure 8. Inverting Step Response

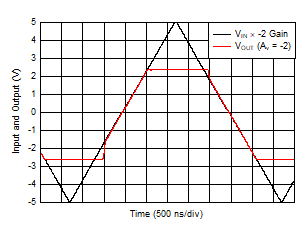

OPA2834 D306_Inv_5V_Overdrive.gif
Gain = –2 V/V
Figure 10. Inverting Overdrive Recovery

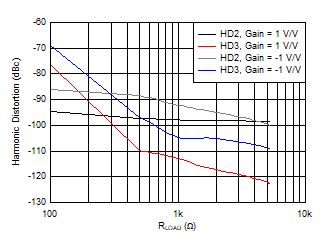

OPA2834 D307_5V_HD_vs_Rload.gif
VO = 2 VPP, f = 100 kHz
Figure 12. Harmonic Distortion vs RLOAD
OPA2834 D201_New_5V_HD_vs_Gain.gif
VO = 2 VPP, f = 100 kHz
Figure 14. Harmonic Distortion vs Gain Magnitude
