6.14.13 Port P7 (P7.4) Input/Output With Schmitt Trigger

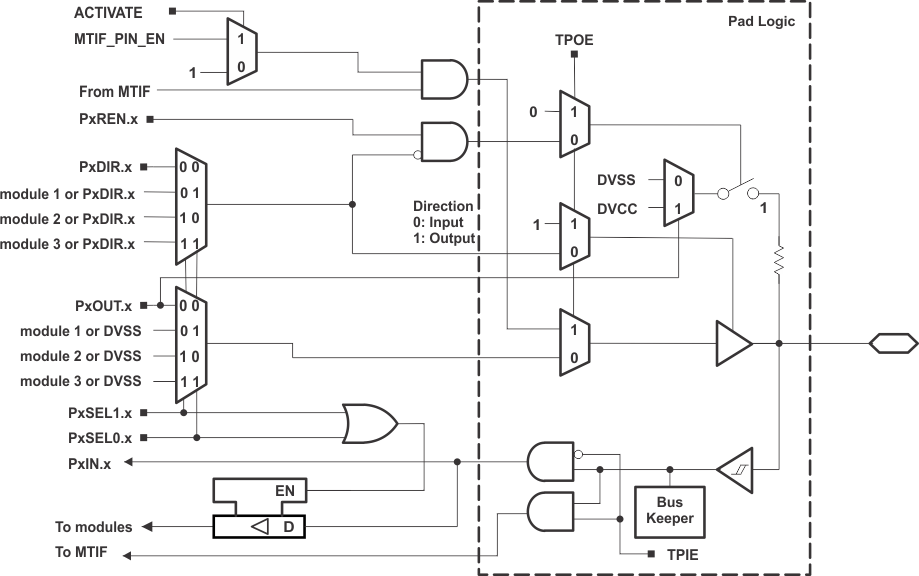

Figure 6-14 shows the port diagram. Table 6-36 summarizes the selection of the pin function.

MSP430FR6047 MSP430FR60471 MSP430FR6045 MSP430FR6037 MSP430FR60371 MSP430FR6035 IO_schem_mtif2.gif

NOTE:

Functional representation only.
Figure 6-14 Port P7 (P7.4) Diagram

Table 6-36 Port P7 (P7.4) Pin Functions

PIN NAME (P7.x) x FUNCTION CONTROL BITS OR SIGNALS
P7DIR.x P7SEL1.x P7SEL0.x TPOE (1) TPIE(1) ACTIVATE (1) Signal on MTIF_PIN_EN pin (2)
P7.4/TA0.1/ MTIF_OUT_IN 4 P7.4(I/O) I: 0; O: 1 0 0 0 0 X X
TA0.CCI1A 0 0 1 0 0 X X
TA0.1 1
N/A 0 1 0 0 0 X X
Internally tied to DVSS 1
N/A 0 1 1 0 0 X X
Internally tied to DVSS 1
MTIF_IN X X X 0 1 X X
MTIF_OUT(1) X X X 1 X 0 X
Internally tied to DVSS(1) X X X 1 X 1 0
MTIF_OUT(1) X X X 1 X 1 1
(1) See MTIF.TPCTL register
(2) When P7.5 pin is configured as MTIF_PIN_EN (See Table 6-37 for details)
