5.12.4.1 Digital I/O Typical Characteristics

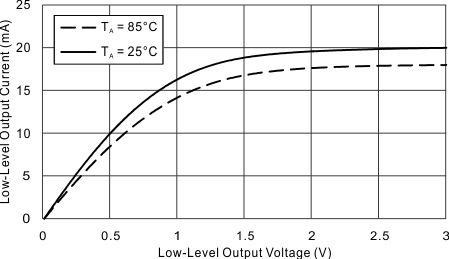

MSP430FR2033 MSP430FR2032 Low_Output_3V.gifFigure 5-5 Typical Low-Level Output Current vs Low-Level Output Voltage (DVCC = 3 V)
MSP430FR2033 MSP430FR2032 High_Output_3V.gifFigure 5-7 Typical High-Level Output Current vs High-Level Output Voltage (DVCC = 3 V)
MSP430FR2033 MSP430FR2032 Low_Output_2V.gifFigure 5-6 Typical Low-Level Output Current vs Low-Level Output Voltage (DVCC = 2 V)
MSP430FR2033 MSP430FR2032 High_Output_2V.gifFigure 5-8 Typical High-Level Output Current vs High-Level Output Voltage (DVCC = 2 V)
