Port P8.2 and P8.3 Input/Output With Schmitt Trigger

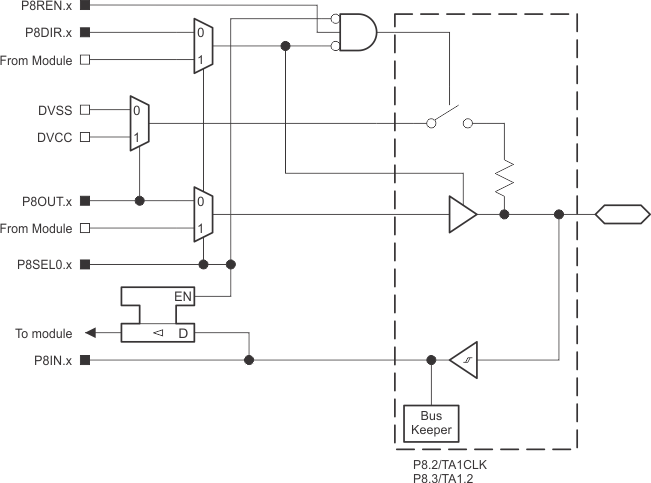

MSP430FR2033 MSP430FR2032 P8_23.gifFigure 6-15 Port P8.2 and P8.3 Input/Output With Schmitt Trigger

Table 6-27 Port P8.2 and P8.3 Pin Functions

PIN NAME (P8.x) x FUNCTION CONTROL BITS AND SIGNALS
P8DIR.x P8SEL0.x
P8.2/TA1CLK 2 P8.2 (I/O) I: 0; O: 1 0
TA1 CLK 0 1
VSS 1
P8.3/TA1.2 3 P8.3 (I/O) I: 0; O: 1 0
TA1.CCI2A 0 1
TA1.2 1
