6.9.12.12 Port P7.4, P7.5, P7.6, and P7.7 Input/Output With Schmitt Trigger

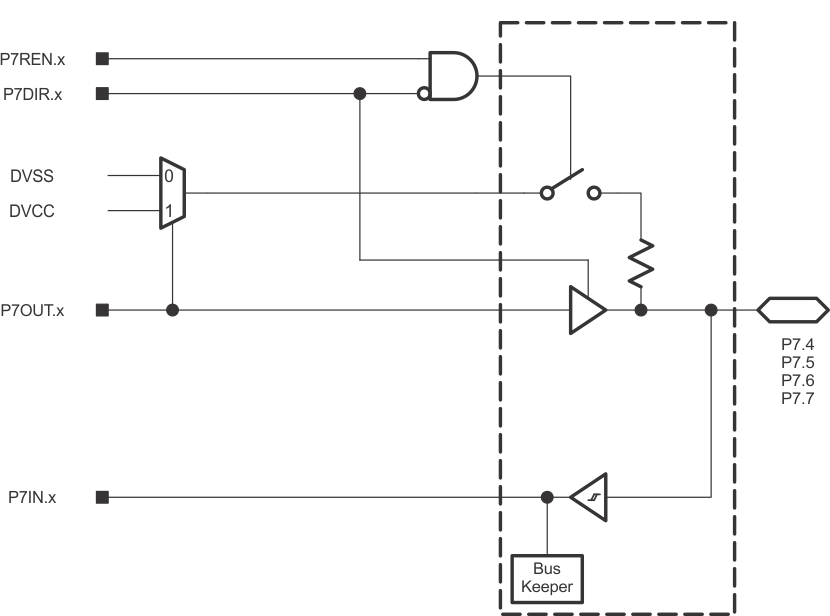

MSP430FR2033 MSP430FR2032 schematics_p7_4567_slase45.gifFigure 6-13 Port P7.4, P7.5, P7.6, and P7.7 Input/Output With Schmitt Trigger

Table 6-25 Port P7.4, P7.5, P7.6, and P7.7 Pin Functions

PIN NAME (P7.x) x FUNCTION CONTROL BITS AND SIGNALS
P7DIR.x
P7.4 4 P7.4 (I/O) I: 0; O: 1
P7.5 5 P7.5 (I/O) I: 0; O: 1
P7.6 6 P7.6 (I/O) I: 0; O: 1
P7.7 7 P7.7 (I/O) I: 0; O: 1
