8.49 Ports PU.0 and PU.1

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETERTEST CONDITIONSMINMAXUNIT
VOHHigh-level output voltageVLDOO = 3.3 V ±10%, IOH = –25 mA,
See Figure 8-24 for typical characteristics		2.4V
VOLLow-level output voltageVLDOO = 3.3 V ±10%, IOL = 25 mA,
See Figure 8-23 for typical characteristics		0.4V
VIHHigh-level input voltageVLDOO = 3.3 V ±10%,
See Figure 8-25 for typical characteristics		2.0V
VILLow-level input voltageVLDOO = 3.3 V ±10%,
See Figure 8-25 for typical characteristics		0.8V

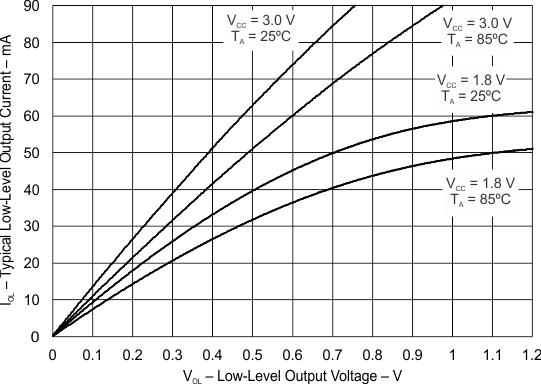

GUID-2D8EF176-B0EA-4D71-94B0-97D9182FC3B8-low.gifFigure 8-23 Ports PU.0, PU.1 Typical Low-Level Output Characteristics

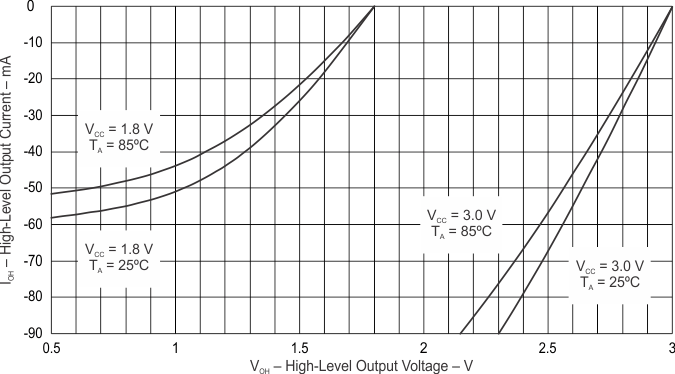

GUID-CC6AB064-294A-4C66-B8A1-A0812C9E23D3-low.gifFigure 8-24 Ports PU.0, PU.1 Typical High-Level Output Characteristics

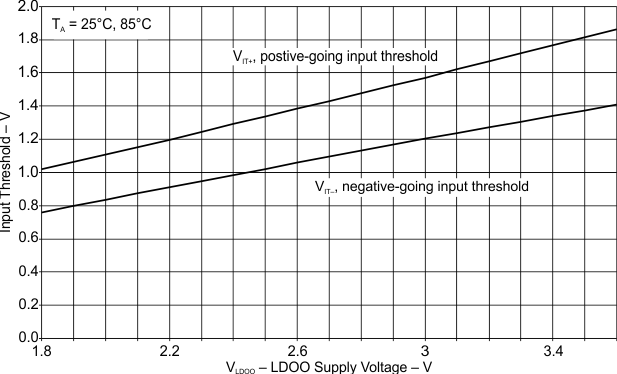

GUID-20EF68C7-F44D-4324-BA2E-93D78D308F2F-low.gifFigure 8-25 Ports PU.0, PU.1 Typical Input Threshold Characteristics
