8.31 USCI (SPI Master Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)(1)
(see Figure 8-11 and Figure 8-12)
PARAMETERTEST CONDITIONSVCCMINMAXUNIT
fUSCIUSCI input clock frequencySMCLK or ACLK,
Duty cycle = 50% ±10%		fSYSTEMMHz
tSU,MISOMI input data setup timePMMCOREV = 01.8 V55ns
3 V38
PMMCOREV = 32.4 V30
3 V25
tHD,MISOMI input data hold timePMMCOREV = 01.8 V0ns
3 V0
PMMCOREV = 32.4 V0
3 V0
tVALID,MOSIMO output data valid time(2)UCLK edge to SIMO valid,
CL = 20 pF, PMMCOREV = 0		1.8 V20ns
3 V18
UCLK edge to SIMO valid,
CL = 20 pF, PMMCOREV = 3		2.4 V16
3 V15
tHD,MOSIMO output data hold time(3)CL = 20 pF, PMMCOREV = 01.8 V–10ns
3 V–8
CL = 20 pF, PMMCOREV = 32.4 V–10
3 V–8
(1) fUCxCLK = 1/2tLO/HI with tLO/HI ≥ max(tVALID,MO(USCI) + tSU,SI(Slave), tSU,MI(USCI) + tVALID,SO(Slave))
For the slave parameters tSU,SI(Slave) and tVALID,SO(Slave), see the SPI parameters of the attached slave.
(2) Specifies the time to drive the next valid data to the SIMO output after the output changing UCLK clock edge. See the timing diagrams in Figure 8-11 and Figure 8-12.
(3) Specifies how long data on the SIMO output is valid after the output changing UCLK clock edge. Negative values indicate that the data on the SIMO output can become invalid before the output changing clock edge observed on UCLK. See the timing diagrams in Figure 8-11 and Figure 8-12.

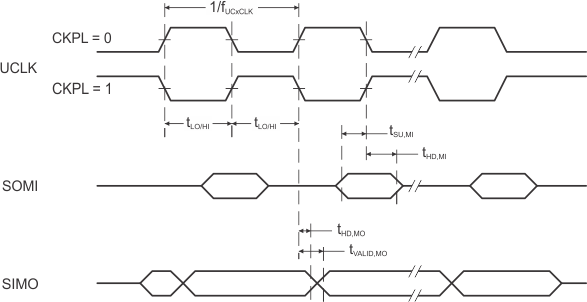

GUID-2DDB944D-5009-4555-AC31-EBC13A2F8C0F-low.gifFigure 8-11 SPI Master Mode, CKPH = 0
GUID-CE2819E7-9565-4779-9EF7-AB6E0F9F10FB-low.gifFigure 8-12 SPI Master Mode, CKPH = 1
