9.2.4 EMI Performance Curves

EMI results critically depend on PCB layout and test setup. The results given here are typical and given for information purposes only. Figure 9-26 shows the used EMI filter. The limit lines shown refer to CISPR25 class 5.

LM63625DQVOUT = 5 VƒSW = 2100 kHz
IOUT = 2.5 ADither

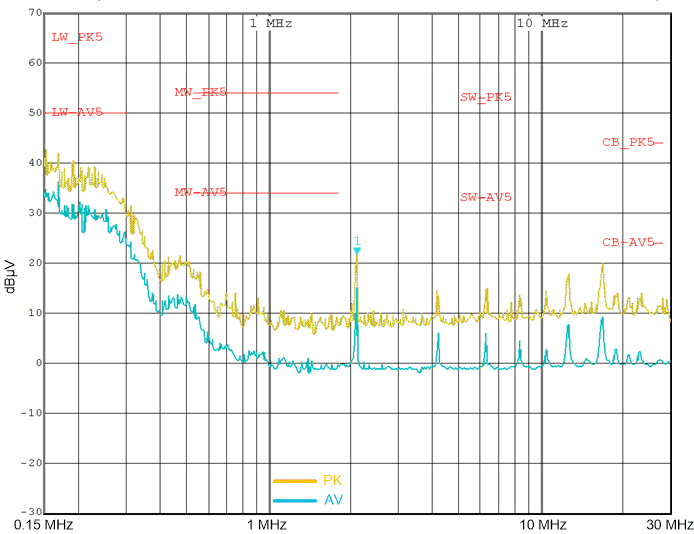

Figure 9-24 Typical Conducted EMI with LM63625 0.15 MHz to 30 MHz
LM63625DQVOUT = 5 VƒSW = 2100 kHz
IOUT = 2.5 ADither

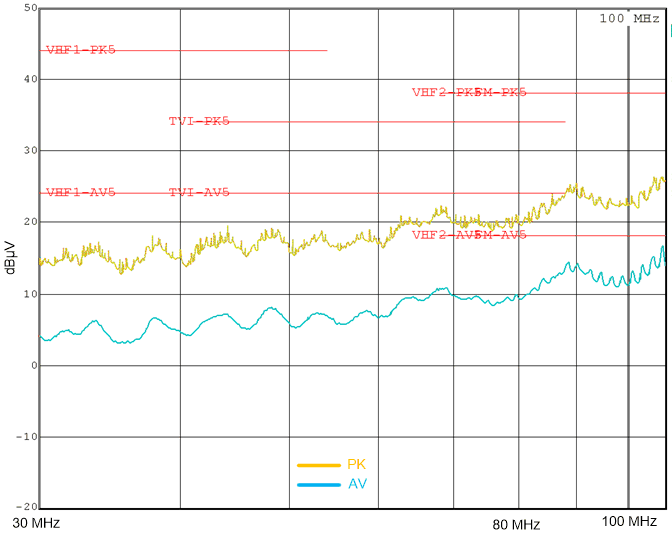

Figure 9-25 Typical Conducted EMI with LM63625 30 MHz to 108 MHz
Input filter used only for EMI measurements shown in the EMI Performance Curves section.
Figure 9-26 Typical Input EMI Filter with LM63625
