6.7 Typical Characteristics

LM317 Load Regulation (Legacy Chip)

Figure 6-1 Load Regulation (Legacy Chip)
LM317 Load Regulation (New Chip)

Figure 6-3 Load Regulation (New Chip)
LM317 Load Transient Response (Legacy Chip)

Figure 6-5 Load Transient Response (Legacy Chip)

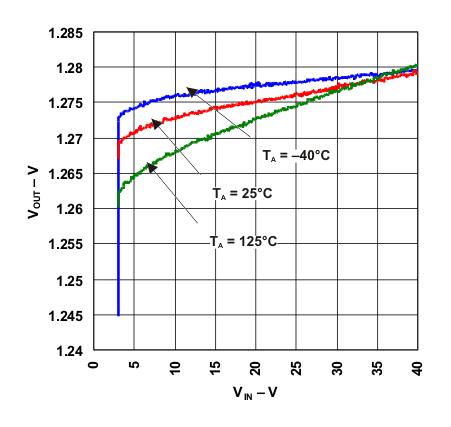

LM317 Line Regulation (Legacy Chip)

Figure 6-7 Line Regulation (Legacy Chip)
LM317 Output Voltage vs Input Voltage, VOUT = 5V (New Chip)

Figure 6-9 Output Voltage vs Input Voltage, VOUT = 5V (New Chip)

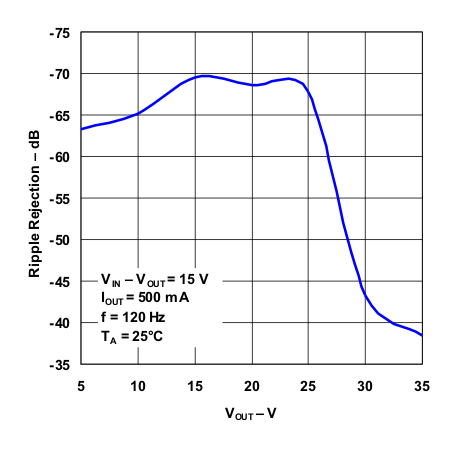

LM317 Ripple Rejection vs Output Voltage (Legacy Chip)

Figure 6-11 Ripple Rejection vs Output Voltage (Legacy Chip)
LM317 Ripple Rejection vs Output Voltage (New Chip)

Figure 6-13 Ripple Rejection vs Output Voltage (New Chip)
LM317 Ripple Rejection vs Output Current (New Chip)

Figure 6-15 Ripple Rejection vs Output Current (New Chip)
LM317 Adjustment Current vs Temperature (New Chip)

Figure 6-17 Adjustment Current vs Temperature (New Chip)
LM317 Temperature Stability (New Chip)

Figure 6-19 Temperature Stability (New Chip)
LM317 Output Impedance vs Frequency (New Chip)

Figure 6-21 Output Impedance vs Frequency (New Chip)
LM317 Load Regulation (Legacy Chip)

Figure 6-2 Load Regulation (Legacy Chip)
LM317 Load Transient Response (Legacy Chip)

Figure 6-4 Load Transient Response (Legacy Chip)
LM317 Load Transient Response (New Chip)

Figure 6-6 Load Transient Response (New Chip)
LM317 Output Voltage vs Input Voltage, VOUT = VREF (New Chip)

Figure 6-8 Output Voltage vs Input Voltage, VOUT = VREF (New Chip)

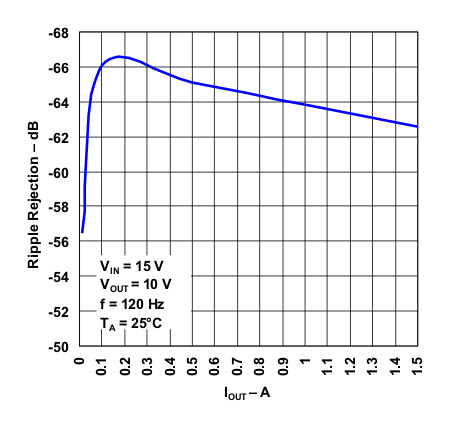

LM317 Ripple Rejection vs Output Current (Legacy Chip)

Figure 6-10 Ripple Rejection vs Output Current (Legacy Chip)
LM317 Ripple Rejection vs Frequency (Legacy Chip)

Figure 6-12 Ripple Rejection vs Frequency (Legacy Chip)
LM317 Ripple Rejection vs Frequency (New Chip)

Figure 6-14 Ripple Rejection vs Frequency (New Chip)
LM317 Current Limit Threshold (New Chip)

Figure 6-16 Current Limit Threshold (New Chip)
LM317 Dropout Voltage vs Temperature (New Chip)



Figure 6-18 Dropout Voltage vs Temperature (New Chip)
LM317 Minimum Operating Current (New Chip)

Figure 6-20 Minimum Operating Current (New Chip)
LM317 Line Transient Response (New Chip)

Figure 6-22 Line Transient Response (New Chip)
