9.2 Typical Application

The JFE150 can be configured to provide a low-noise, high-input-impedance front-end stage for a typical op amp. Single-transistor gain stages shown previously suffer from wide gain variations dependent on the forward transcondutance of the JFE150. When precision gain is required, the composite amplifier (JFET front-end + operational amplifier) achieves excellent results.

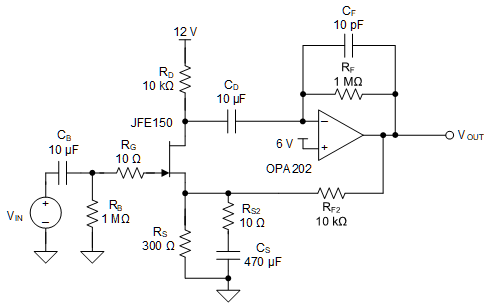

GUID-20210510-CA0I-SLFD-BVPF-WS3TNR9NNWCK-low.gif Figure 9-6 Low-Noise, High-Input-Impedance Composite Amplifier
