6.13 Typical Characteristics

T_A = 25°C

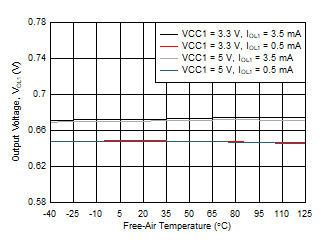

Figure 6-5 Side 1: Output Low Voltage vs Free-Air Temperature

VCC1 = 3.3 V

Figure 6-7 Side 1: Output Fall Time vs Free-Air Temperature

VCC2 = 3.3 V

C2 = 400 pF

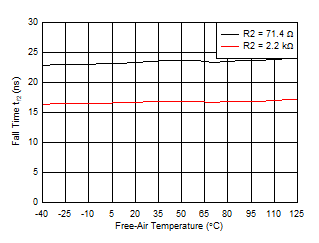

Figure 6-9 Side 2: Output Fall Time vs Free-Air Temperature

C1 = 80 pF

C2 = 400 pF

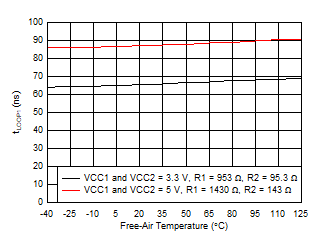

Figure 6-11 t_LOOP1 vs Free-Air Temperature

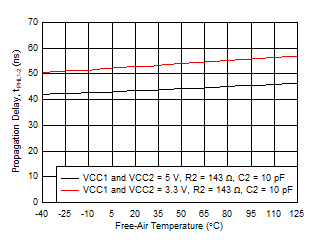

Figure 6-13 t_PLH1-2 Propagation Delay vs Free-Air Temperature

Figure 6-15 t_PHL1-2 Propagation Delay vs Free-Air Temperature

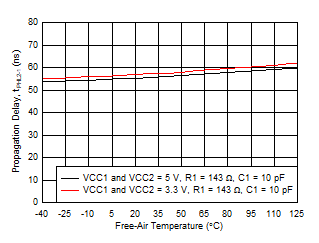

Figure 6-17 t_PLH2-1 Propagation Delay vs Free-Air Temperature

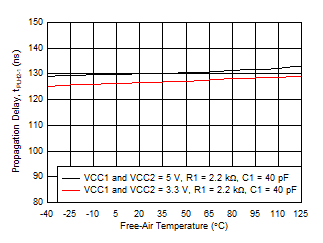

Figure 6-19 t_PHL2-1 Propagation Delay vs Free-Air Temperature

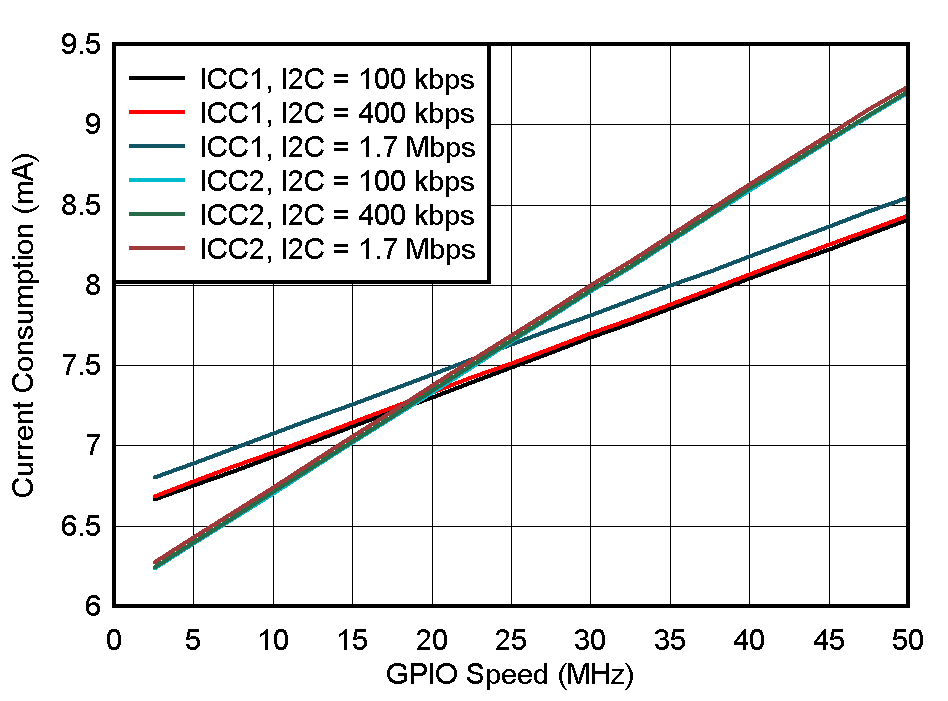

Figure 6-21 ISO1642: ICC vs GPIO Speed at 3.3V

Figure 6-23 ISO1643: ICC vs GPIO Speed at 3.3V

Figure 6-25 ISO1644: ICC vs GPIO Speed at 3.3V

VCC1 = 5 V

Figure 6-6 Side 1: Output Fall Time vs Free-Air Temperature

VCC2 = 5 V

C2 = 400 pF

Figure 6-8 Side 2: Output Fall Time vs Free-Air Temperature

VCC2 = 2.5 V

C2 = 400 pF

Figure 6-10 Side 2: Output Fall Time vs Free-Air Temperature

C1 = 80 pF

C2 = 400 pF

Figure 6-12 t_LOOP1 vs Free-Air Temperature

Figure 6-14 t_PLH1-2 Propagation Delay vs Free-Air Temperature

Figure 6-16 t_PHL1-2 Propagation Delay vs Free-Air Temperature

Figure 6-18 t_PLH2-1 Propagation Delay vs Free-Air Temperature

Figure 6-20 t_PHL2-1 Propagation Delay vs Free-Air Temperature

Figure 6-22 ISO1642: ICC vs GPIO Speed at 5V

Figure 6-24 ISO1643: ICC vs GPIO Speed at 5V

Figure 6-26 ISO1644: ICC vs GPIO Speed at 5V
