7 Parametric Measurement Information

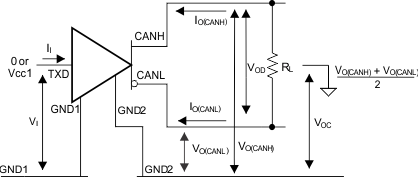

GUID-1D0BDDC9-064D-42A6-B382-7780C3D3B767-low.gifFigure 7-1 Driver Voltage, Current and Test Definitions

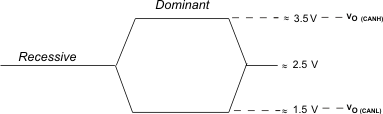

GUID-69E3BC13-CE1C-401C-9427-530BB4C95676-low.gifFigure 7-2 Bus Logic State Voltage Definitions
Figure 7-3 Driver Test Circuit and Voltage Waveforms. GUID-20200710-SS0I-NBFX-Q4QZ-7HFQ1XSKVLFK-low.gif

The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.

GUID-997DDC9D-D58F-45BC-A617-198C87B77F45-low.gifFigure 7-4 Receiver Voltage and Current Definitions
The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle,
tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
Figure 7-5 Receiver Test Circuit and Voltage Waveforms
Table 7-1 Receiver Differential Input Voltage Threshold Test
INPUTOUTPUT
VCANHVCANL|VID|RXD
-11.5 V-12.5 V1000 mVLVOL
12.5 V11.5 V1000 mVL
-8.55 V-9.45 V900 mVL
9.45 V8.55 V900 mVL
-8.75 V-9.25 V500 mVHVOH
9.25 V8.75 V500 mVH
-11.8 V-12.2 V400 mVH
12.2 V11.8 V400 mVH
OpenOpenXH
GUID-E131902A-1DC9-405D-9BF8-1D78FFF841E6-low.gifFigure 7-6 tLOOP and CAN FD Timing Parameter Measurement
The input pulse is supplied by a generator having the following characteristics: tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.

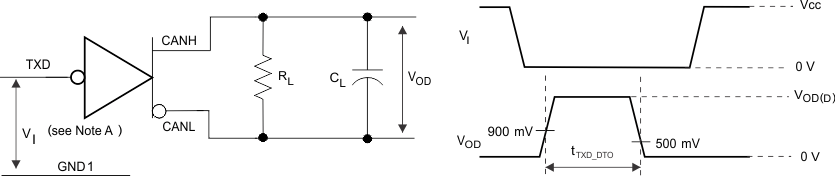

Figure 7-7 Dominant Time-out Test Circuit and Voltage Waveforms

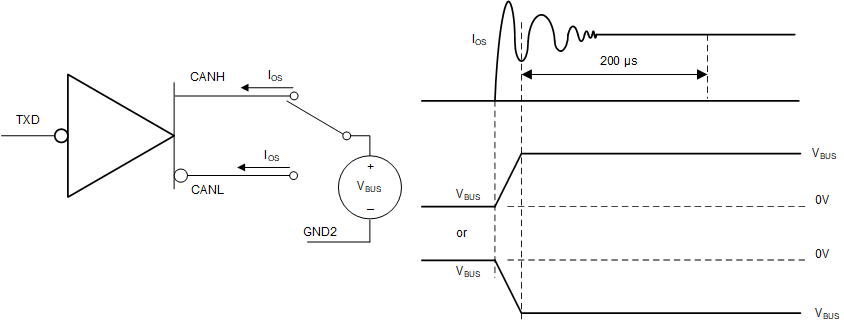

GUID-CB6D291F-6D68-4FF2-9122-A5B7E2A912AE-low.gifFigure 7-8 Driver Short-Circuit Current Test Circuit and Waveforms

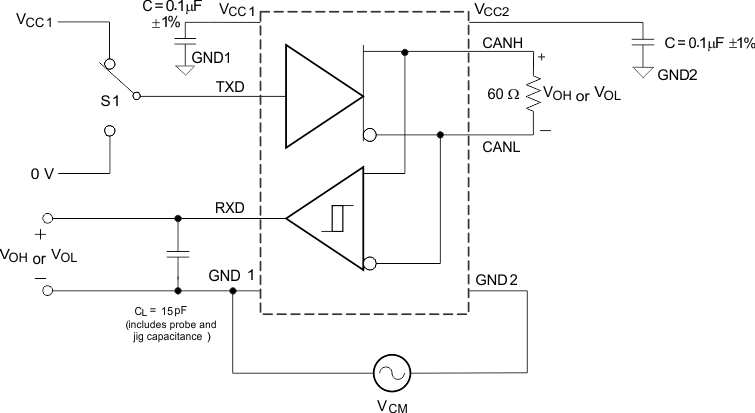

GUID-75347BFE-1E9C-424C-943E-6CA25FFEBDE0-low.gifFigure 7-9 Common-Mode Transient Immunity Test Circuit
