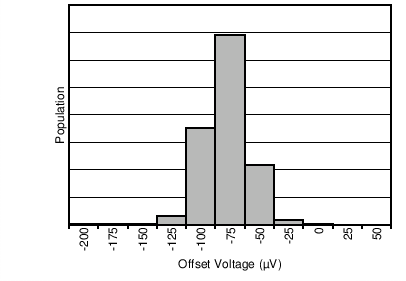

6.7 Typical Characteristics
at TA = 25°C, VS = 3.3 V, VIN+ = 12 V, alert pull-up resistor = 10 kΩ, and Delay = 100 µs (unless otherwise noted)

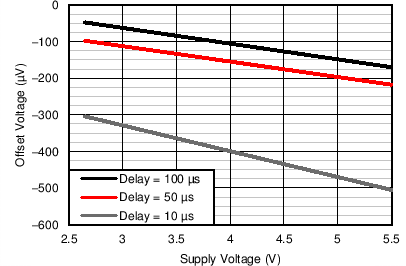

| Delay = 10 µs |
| Delay = 100 µs |
Figure 6-5 Input Offset Voltage vs.
Temperature

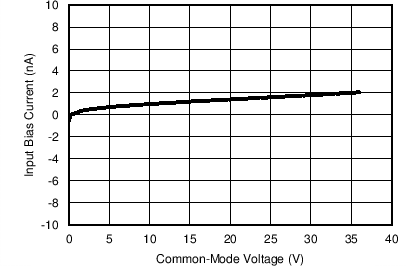

Figure 6-7 Input Bias Current vs.
Common-Mode Voltage (Enabled)
Figure 6-9 Input Bias Current vs.
Temperature (Enabled)
Figure 6-11 Quiescent Current vs.
Supply Voltage (Enabled)
Figure 6-13 Quiescent Current vs.
Temperature (Enabled)
| Z = Floating | L = Low | H = High |
| HYS – DELAY |
Figure 6-17 Limit Current Source vs.
Temperature
Figure 6-19 Alert Step Response
Figure 6-21 Alert Response (Latch Mode to Transparent Mode)
| Delay = 50 µs |

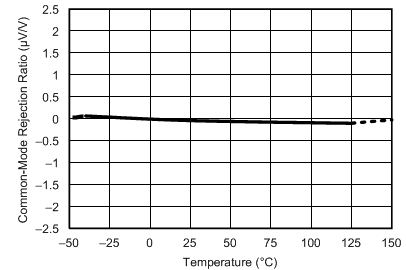

Figure 6-6 Common-Mode Rejection
Ratio vs. Temperature
Figure 6-8 Input Bias Current vs.
Common-Mode Voltage (Disabled)
Figure 6-10 Input Bias Current vs.
Temperature (Disabled)
Figure 6-12 Quiescent Current vs.
Supply Voltage (Disabled)
Figure 6-14 Quiescent Current vs.
Temperature (Disabled)
| Z = Floating | L = Low | H = High |
| HYS – DELAY |
Figure 6-18 Hysteresis vs.
Temperature
Figure 6-20 Alert Response (Disable to Enable)
