7.1 Test Circuits and Timing Waveforms

DS92LV040A 10133603.png

Figure 1. Differential Driver DC Test Circuit

DS92LV040A 10133604.png

Figure 2. Differential Driver Propagation Delay and Transition Time Test Circuit

DS92LV040A 10133605.png

Figure 3. Differential Driver Propagation Delay and Transition Time Waveforms

DS92LV040A 10133606.png

Figure 4. Driver TRI-STATE Delay Test Circuit

DS92LV040A 10133607.png

Figure 5. Driver TRI-STATE Delay Waveforms

DS92LV040A 10133608.png

Figure 6. Receiver Propagation Delay and Transition Time Test Circuit

DS92LV040A 10133609.png

Figure 7. Receiver Propagation Delay and Transition Time Waveforms

DS92LV040A 10133610.png

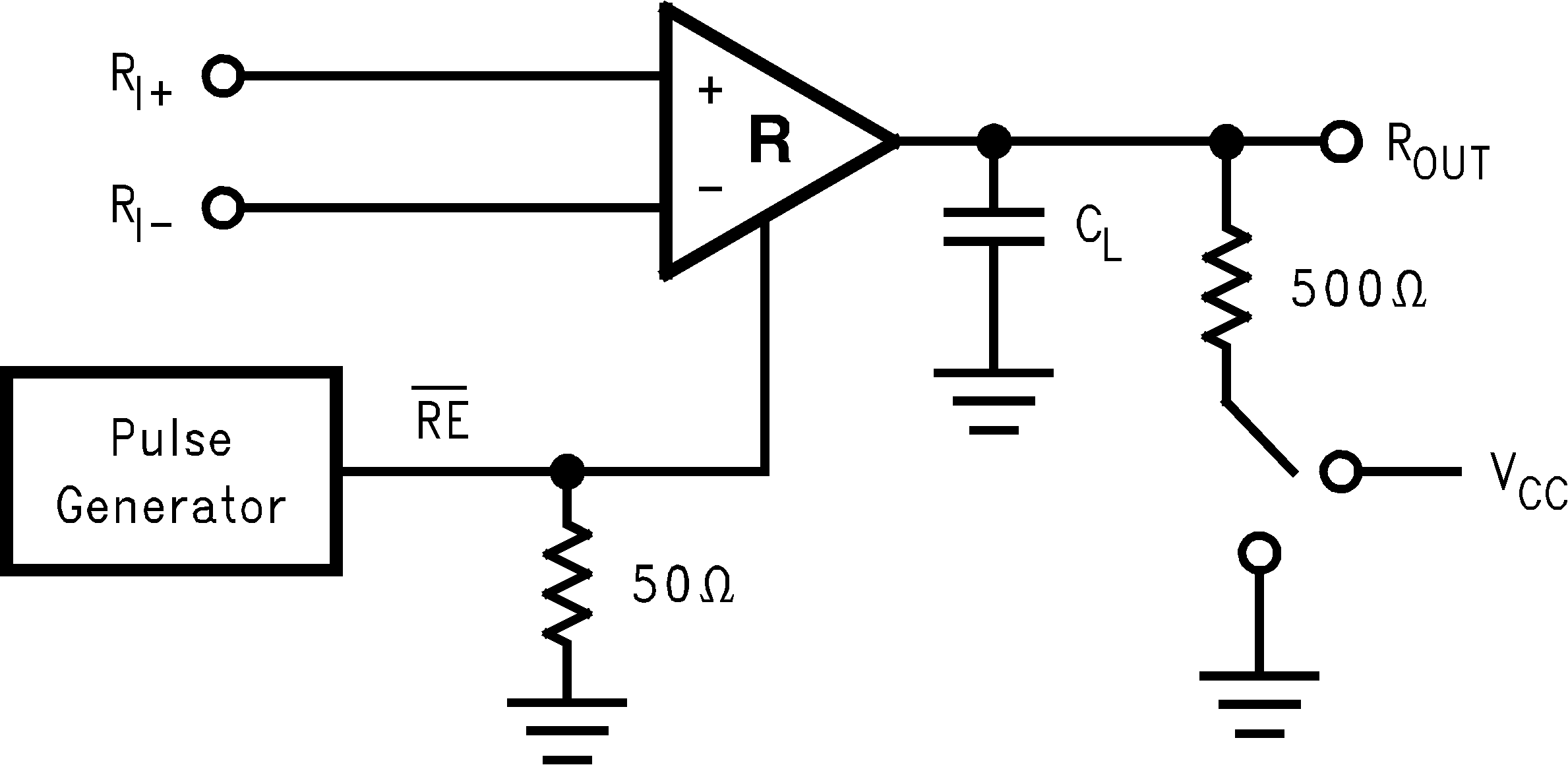

Figure 8. Receiver TRI-STATE Delay Test Circuit

DS92LV040A 10133611.png

Figure 9. Receiver TRI-STATE Delay Waveforms
