10.2.1 Stripline Example

The following example layout demonstrates how all signals can be escaped from the BGA array using stripline routing on a generic 8+ layer stackup. This example layout assumes the following:

  • Trace width: 0.15 mm (6 mil)
  • Trace edge-to-edge spacing: 0.16 mm (6.4 mil)
  • VIA finished hole size (diameter): 0.254 mm (10 mil)
  • VIA-to-VIA spacing: 1.0 mm (39 mil), to enhance PCB manufacturability
  • No VIA-in-pad used

Note that many other escape routing options exist using different trace width and spacing combinations. The optimum trace width and spacing will depend on the PCB material, PCB routing density, and other factors. Microstrip escape routing is also possible and may be preferable in some application scenarios such as front-port applications.

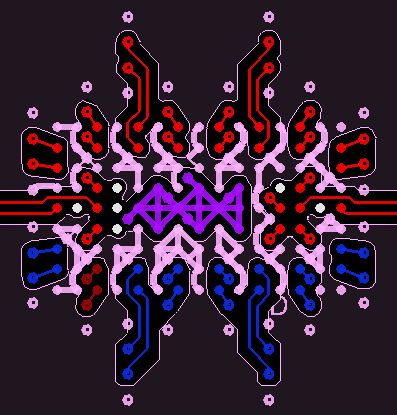

DS280BR820 top_left_top_layer_snls511.pngFigure 31. Stripline Example, Top Layer

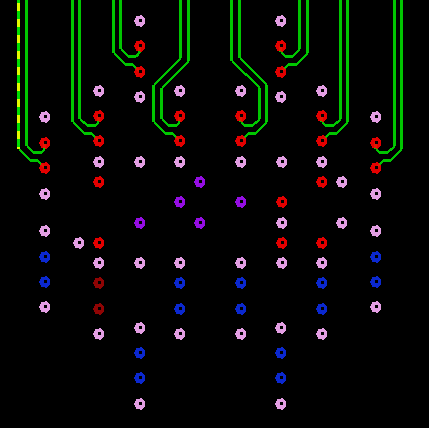

DS280BR820 bottom_left_internal_single_layer2_snls511.pngFigure 33. Stripline Example, Internal Signal Layer 2

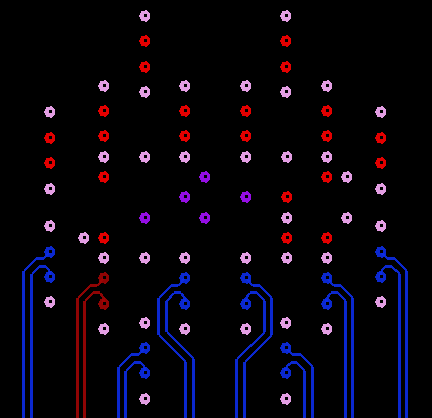

DS280BR820 top_right_internal_single_layer1_snls511.pngFigure 32. Stripline Example, Internal Signal Layer 1
DS280BR820 bottom_layer_bottom_right_snls511.pngFigure 34. Stripline Example, Bottom Layer
