8.2 Typical Applications

The DS280BR820 is typically used in three main application scenarios:

  1. Backplane and mid-plane reach extension
  2. Front-port eye opening for copper and optical applications

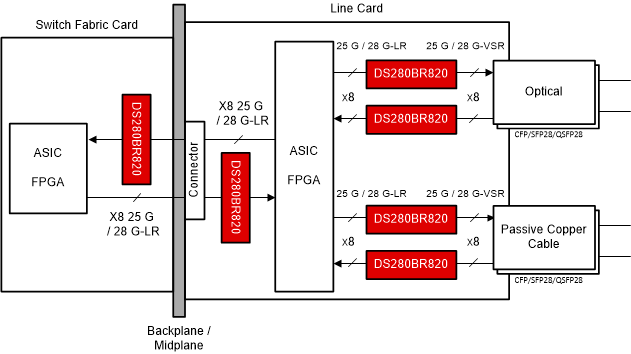

DS280BR820 application_block_diagram.gifFigure 6. Typical Application Diagram

NOTE

TI recommends to AC couple the DS280BR820's high-speed outputs. In some cases, ASIC or FPGA SerDes receivers support DC coupling, and it may be desirable to DC couple the DS280BR820 output with the ASIC/FPGA RX input to reduce the PCB area which would normally be consumed by AC coupling capacitors. To DC couple the DS280BR820 output with an ASIC RX input, the ASIC RX must support DC coupling and it must support an input common mode voltage of 1.05 V. To determine if the ASIC RX supports DC coupling, here are some items to consider based on Figure 7:

  1. The ASIC RX must be AC coupled on-chip.
  2. The ASIC RX should not force a DC bias on the RX pins.
  3. System designers should ensure that when the PCB powers on, the power supply rails are appropriately sequenced to prevent the DS280BR820's output common mode voltage from forward-biasing the ESD structure of the ASIC or violating the absolute maximum input voltage specifications of the ASIC.

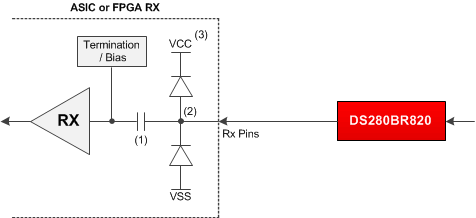

DS280BR820 DC_coupling_requirements.gifFigure 7. Considerations for DC Coupling to ASIC RX
