Equalizing Moderate Pre-Channel Loss

This example application result demonstrates the DS280BR820 equalizing for pre-channel insertion loss introduced by an FR4 channel.

DS280BR820 AppData_preChan.gifFigure 18. 5 in input Channel and Minimal Output Channel Test Setup
DS280BR820 AppData_Pre5in_25G.gifFigure 19. 25.78125 Gbps CAUI-4 Eye Mask with 5 in Input Channel and Minimal Output Channel

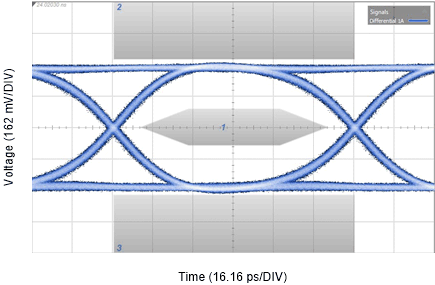

DS280BR820 AppData_Pre5in_10G.gifFigure 20. 10.3125 Gbps nPPI Eye Mask with 5 in Input Channel and Minimal Output Channel

Table 6. Settings and Measurements for CAUI-4 and nPPI with 5 in Input Channel and Minimal Output Channel

25.78125 Gbps (CAUI-4) 10.3125 Gbps (nPPI)
Transmission Line 1 5 in 5 mil FR4 + 8 in SMA cable 5 in 5 mil FR4 + 8 in SMA cable
DS280BR820 Rx Channel Loss 14 dB @ 12.9 GHz 6 dB @ 5.2 GHz
DS280BR820 Tx Channel Loss 4.5 dB @ 12.9 GHz 2 dB @ 5.2 GHz
EQ BST1 3 3
EQ BST2 0 0
EQ BW 3 3
VOD 3 2
EQ DC Gain Mode Low Low
Total Jitter @ 1E-15 11.9 psP-P 13.0 psP-P
Differential Eye Height @ 1E-15 338 mVP-P 544 mVP-P
Mask violations 0 0
