8.2.3.3 Equalizing High Pre-Channel Loss

This example application result demonstrates the DS280BR820 equalizing for pre-channel insertion loss introduced by an FR4 channel.

DS280BR820 AppData_preChan.gifFigure 21. 10 in Input Channel and Minimal Output Channel Test Setup

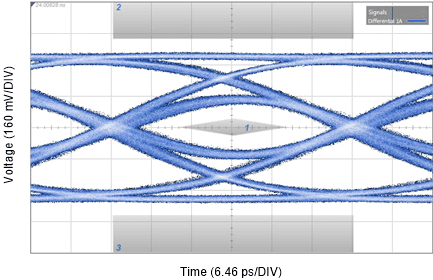

DS280BR820 AppData_pre10in_25G.gifFigure 22. 25.78125 Gbps CAUI-4 Eye Mask with 10 in Input Channel and Minimal Output Channel
DS280BR820 AppData_pre10in_10G.gifFigure 23. 10.1325 Gbps nPPI Eye Mask with 10 in Input Channel and Minimal Output Channel

Table 7. Settings and Measurements for CAUI-4 and nPPI with 10 in Input Channel and Minimal Output Channel

25.78125 Gbps (CAUI-4) 10.3125 Gbps (nPPI)
Transmission Line 1 10 in 5 mil FR4 + 8 in SMA cable 10 in 5 mil FR4 + 8 in SMA cable
DS280BR820 Rx Channel Loss 22 dB @ 12.9 GHz 10 dB @ 5.2 GHz
DS280BR820 Tx Channel Loss 4.5 dB @ 12.9 GHz 2 dB @ 5.2 GHz
EQ BST1 6 6
EQ BST2 1 1
EQ BW 3 3
VOD 3 2
EQ DC Gain Mode Low Low
Total Jitter @ 1E-15 11.3 psP-P 13.5 psP-P
Differential Eye Height @ 1E-15 210 mVP-P 532 mVP-P
Mask violations 0 0
