6.10 Reset Timing Requirements

PARAMETER MIN MAX UNIT
tw1(L) Pulse duration, inactive low, PWRGOOD 50% reference points 4 µs
tt1 Transition time, PWRGOOD 20% to 80% reference points 625 µs
tw2(L) Pulse duration, inactive low, POSENSE 50% reference points 500 µs
tt2 Transition time, POSENSE 20% to 80% reference points 1 µs
tPH Power hold time, POSENSE remains active after PWRGOOD is de-asserted 20% to 80% reference points 500 µs
DLPC350 Port1_Timing_DLPS029.pngFigure 1. Port 1 Input Pixel Timing
DLPC350 LVDS_Start_Up_DLPS029.pngFigure 2. LVDS Timing Diagram
DLPC350 LVDS_Data_Skew_DLPS029.pngFigure 3. (LVDS) Link Start-up Timing

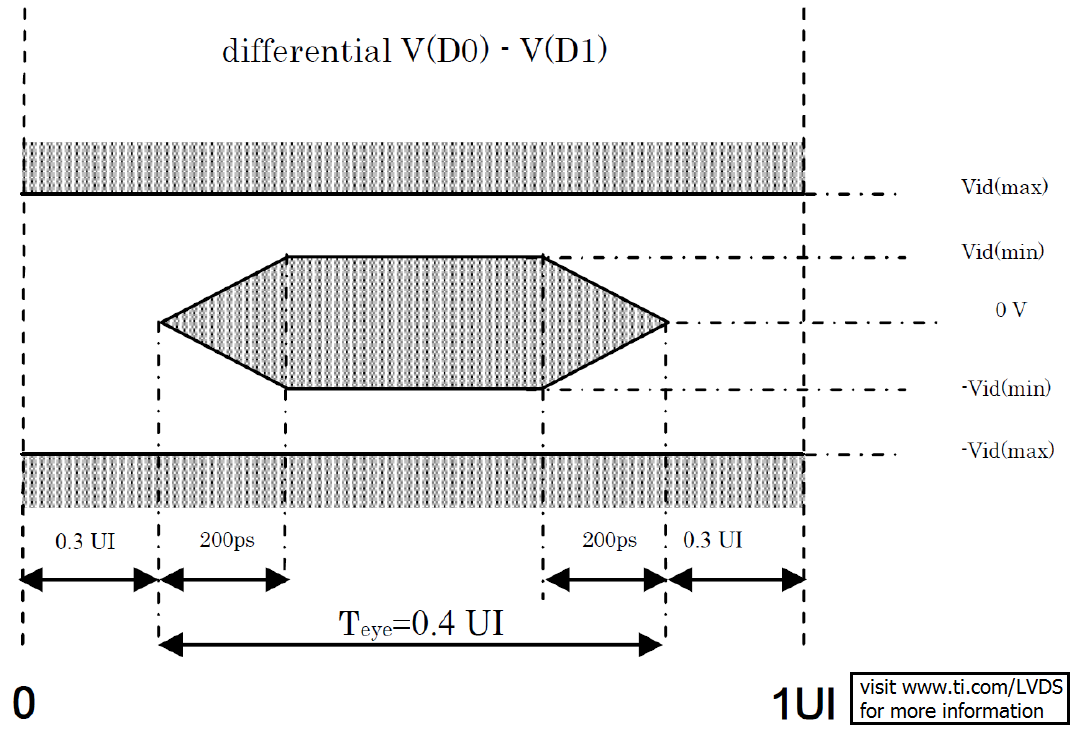

DLPC350 Port2_Timing_DLPS029.pngFigure 4. (LVDS) Clock: Data Skew Definition
DLPC350 System_Oscillators_Timing_DLPS029.pngFigure 5. System Oscillators Timing
