5.1 DLPC150 Mechanical Data

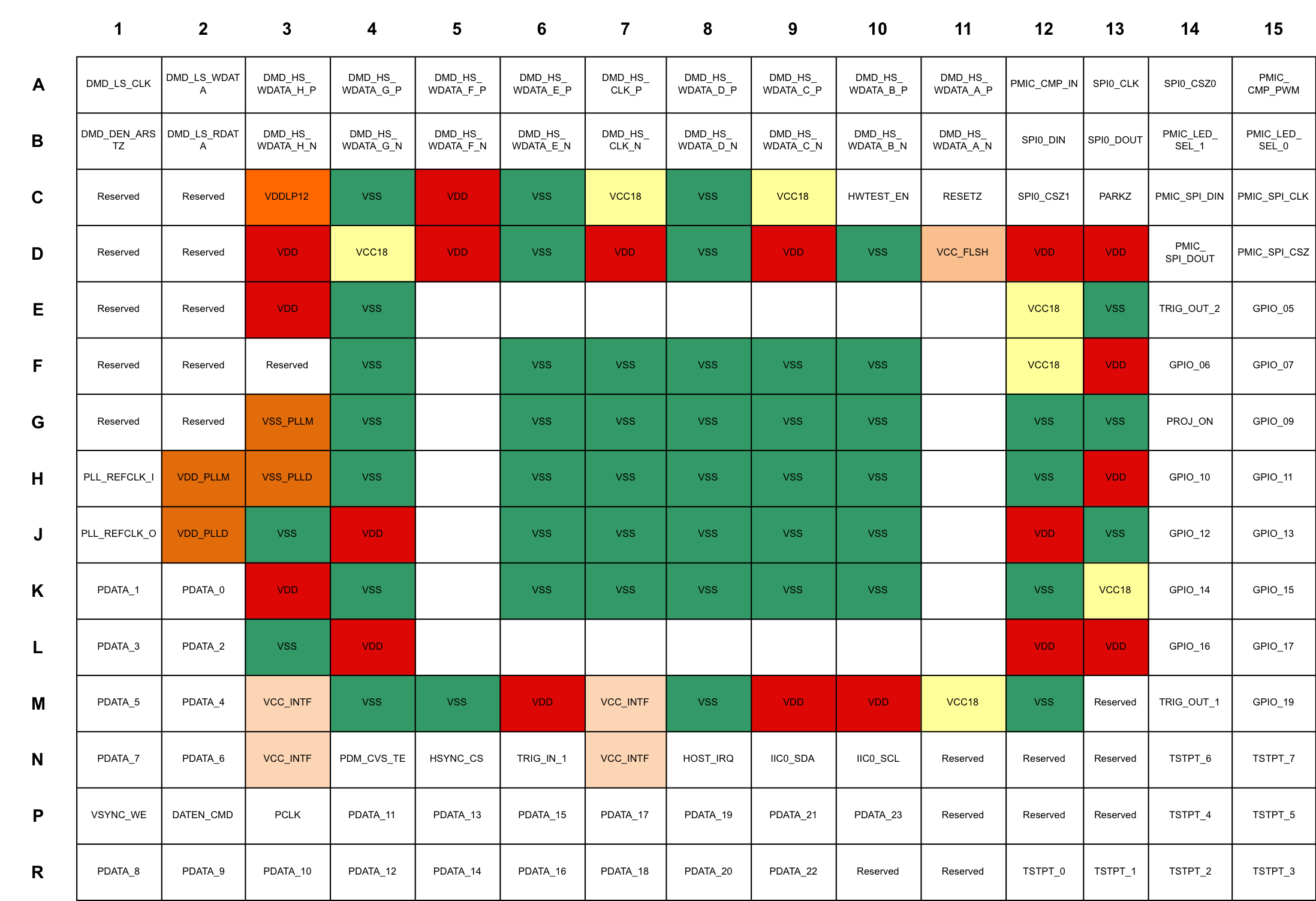

DLPC150 DLPC150 Pinout.gifFigure 1. 13- × 13-mm Package – VF Ball Grid Array

Table 1. I/O Type Subscript Definition

I/O TYPE SUPPLY REFERENCE ESD STRUCTURE
SUBSCRIPT DESCRIPTION
1 1.8 LVCMOS I/O buffer with 8-mA drive Vcc18 ESD diode to GND and supply rail
2 1.8 LVCMOS I/O buffer with 4-mA drive Vcc18 ESD diode to GND and supply rail
3 1.8 LVCMOS I/O buffer with 24-mA drive Vcc18 ESD diode to GND and supply rail
4 1.8 sub-LVDS output with 4-mA drive Vcc18 ESD diode to GND and supply rail
5 1.8, 2.5, 3.3 LVCMOS with 4-mA drive Vcc_INTF ESD diode to GND and supply rail
6 1.8 LVCMOS input Vcc18 ESD diode to GND and supply rail
7 1.8-, 2.5-, 3.3-V I2C with 3-mA drive Vcc_INTF ESD diode to GND and supply rail
8 1.8-V I2C with 3-mA drive Vcc18 ESD diode to GND and supply rail
9 1.8-, 2.5-, 3.3-V LVCMOS with 8-mA drive Vcc_INTF ESD diode to GND and supply rail
11 1.8, 2.5, 3.3 LVCMOS input Vcc_INTF ESD diode to GND and supply rail
12 1.8-, 2.5-, 3.3-V LVCMOS input Vcc_FLSH ESD diode to GND and supply rail
13 1.8-, 2.5-, 3.3-V LVCMOS with 8-mA drive Vcc_FLSH ESD diode to GND and supply rail

Table 2. Internal Pullup and Pulldown Characteristics(1)(2)

INTERNAL PULLUP AND PULLDOWN
RESISTOR CHARACTERISTICS		 VCCIO MIN MAX UNIT
Weak pullup resistance 3.3 V 29 63 kΩ
2.5 V 38 90 kΩ
1.8 V 56 148 kΩ
Weak pulldown resistance 3.3 V 30 72 kΩ
2.5 V 36 101 kΩ
1.8 V 52 167 kΩ
(1) The resistance is dependent on the supply voltage level applied to the I/O.
(2) An external 8-kΩ pullup or pulldown (if needed) would work for any voltage condition to correctly pull enough to override any associated internal pullups or pulldowns.
