7.3.2.5.1 Break Before Make (BBM)

The operation of the three LED N-channel MOSFET switches (P, Q, R) follows a break-before-make control. The device returns a switch to the OPEN position first before the device sets the subsequent switch to the CLOSED position (BBM), Figure 9. The BBM register (0x0E) controls the dead-time between closing one swtich and opening another. Switches that are intended to remain closed do not opened during the BBM delay time.

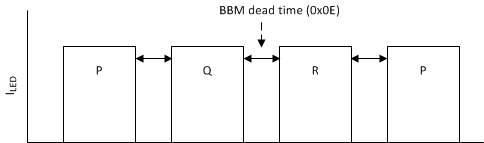

DLPA4000 BBM_timing.gifFigure 9. Break-Before-Make Timing
