ZHCSBF0D August   2013  – February 2018 DAC3151 , DAC3161 , DAC3171

PRODUCTION DATA.

  1. 1 特性
  2. 2 应用
  3. 3 说明
    1.     DAC31x1 系统框图
  4. 4 修订历史记录
  5. 5 Pin Configuration and Functions
    1.     Pin Functions: DAC3151
    2.     Pin Functions: DAC3161
    3.     Pin Functions: DAC3171 7-Bit Interface Mode
    4.     Pin Functions: DAC3171 14-Bit Interface Mode
  6. 6 Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Recommended Operating Conditions
    4. 6.4 Thermal Information
    5. 6.5 Electrical Characteristics: DC Specifications
    6. 6.6 Electrical Characteristics: AC Specifications
    7. 6.7 Electrical Characteristics: Digital Specifications
    8. 6.8 Timing Requirements
    9. 6.9 Typical Characteristics
  7. 7 Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagrams
    3. 7.3 Feature Description
      1. 7.3.1 Data Input Formats
      2. 7.3.2 Serial Interface
        1. Table 1. Instruction Byte of the Serial interface
    4. 7.4 Device Functional Modes
      1. 7.4.1 Synchronization Modes
      2. 7.4.2 Alarm Monitoring
    5. 7.5 Programming
      1. 7.5.1 Power-Up Sequence
    6. 7.6 Register Map
      1. 7.6.1  Register Name: config0 – Address: 0x00, Default: 0x4FC
        1. Table 6. Register Name: config0 – Address: 0x00, Default: 0x4FC
      2. 7.6.2  Register Name: config1 – Address: 0x01, Default: 0x600E
        1. Table 7. Register Name: config1 – Address: 0x01, Default: 0x600E
      3. 7.6.3  Register Name: config2 – Address: 0x02, Default: 0x3FFF
        1. Table 8. Register Name: config2 – Address: 0x02, Default: 0x3FFF
      4. 7.6.4  Register Name: config3 – Address: 0x03, Default: 0x0000
        1. Table 9. Register Name: config3 – Address: 0x03, Default: 0x0000
      5. 7.6.5  Register Name: config4 – Address: 0x04, Default: 0x0000
        1. Table 10. Register Name: config4 – Address: 0x04, Default: 0x0000
      6. 7.6.6  Register Name: config5 – Address: 0x05, Default: 0x0000
        1. Table 11. Register Name: config5 – Address: 0x05, Default: 0x0000
      7. 7.6.7  Register Name: config6 – Address: 0x06, Default: 0x0010(DAC3171); 0x0094(DAC3161); 0x0098(DAC3151)
        1. Table 12. Register Name: config6 – Address: 0x06, Default: 0x0010(DAC3171); 0x0094(DAC3161); 0x0098(DAC3151)
      8. 7.6.8  Register Name: config7 – Address: 0x07, Default: 0xFFFF
        1. Table 13. Register Name: config7 – Address: 0x07, Default: 0xFFFF
      9. 7.6.9  Register Name: config8 – Address: 0x08, Default: 0x6000
        1. Table 14. Register Name: config8 – Address: 0x08, Default: 0x6000
      10. 7.6.10 Register Name: config9 – Address: 0x09, Default: 0x8000
        1. Table 15. Register Name: config9 – Address: 0x09, Default: 0x8000
      11. 7.6.11 Register name: config10 – Address: 0x0A, Default: 0xF080
        1. Table 16. Register Name: config10 – Address: 0x0A, Default: 0xF080
      12. 7.6.12 Register Name: config11 – Address: 0x0B, Default: 0x1111
        1. Table 17. Register Name: config11 – Address: 0x0B, Default: 0x1111
      13. 7.6.13 Register Name: config12 – Address: 0x0C, Default: 0x3A7A
        1. Table 18. Register Name: config12 – Address: 0x0C, Default: 0x3A7A
      14. 7.6.14 Register Name: config13 – Address: 0x0D, Default: 0x36B6
        1. Table 19. Register Name: config13 – Address: 0x0D, Default: 0x36B6
      15. 7.6.15 Register Name: config14 – Address: 0x0E, Default: 0x2AEA
        1. Table 20. Register name: config14 – Address: 0x0E, Default: 0x2AEA
      16. 7.6.16 Register name: config15 – Address: 0x0F, Default: 0x0545
        1. Table 21. Register Name: config15 – Address: 0x0F, Default: 0x0545
      17. 7.6.17 Register Name: config16 – Address: 0x10, Default: 0x0585
        1. Table 22. Register Name: config16 – Address: 0x10, Default: 0x0585
      18. 7.6.18 Register Name: config17 – Address: 0x11, Default: 0x0949
        1. Table 23. Register Name: config17 – Address: 0x11, Default: 0x0949
      19. 7.6.19 Register Name: config18 – Address: 0x12, Default: 0x1515
        1. Table 24. Register Name: config18 – Address: 0x12, Default: 0x1515
      20. 7.6.20 Register Name: config19 – Address: 0x13, Default: 0x3ABA
        1. Table 25. Register Name: config19 – Address: 0x13, Default: 0x3ABA
      21. 7.6.21 Register Name: config20– Address: 0x14, Default: 0x0000
        1. Table 26. Register Name: config20– Address: 0x14, Default: 0x0000
      22. 7.6.22 Register Name: config21– Address: 0x15, Default: 0xFFFF
        1. Table 27. Register Name: config21– Address: 0x15, Default: 0xFFFF
      23. 7.6.23 Register Name: config22– Address: 0x16, Default: 0x0000
        1. Table 28. Register Name: config22– Address: 0x16, Default: 0x0000
      24. 7.6.24 Register Name: config23– Address: 0x17, Default: 0x0000
        1. Table 29. Register Name: config23– Address: 0x17, Default: 0x0000
      25. 7.6.25 Register Name: config24– Address: 0x18, Default: 0x0000
        1. Table 30. Register Name: config24– Address: 0x18, Default: 0x0000
      26. 7.6.26 Register Name: config25– Address: 0x19, Default: 0x0000
        1. Table 31. Register Name: config25– Address: 0x19, Default: 0x0000
      27. 7.6.27 Register Name: config127– Address: 0x7F, Default: 0x0045
        1. Table 32. Register Name: config127– Address: 0x7F, Default: 0x0045
  8. 8 Application and Implementation
    1. 8.1 Application Information
    2. 8.2 Typical Application
      1. 8.2.1 Design Requirements
      2. 8.2.2 Detailed Design Procedure
      3. 8.2.3 Application Curve
  9. 9 Power Supply Recommendations
  10. 10Layout
    1. 10.1 Layout Guidelines
    2. 10.2 Layout Example
  11. 11器件和文档支持
    1. 11.1 器件支持
      1. 11.1.1 技术参数定义
    2. 11.2 相关链接
    3. 11.3 接收文档更新通知
    4. 11.4 社区资源
    5. 11.5 商标
    6. 11.6 静电放电警告
    7. 11.7 Glossary
  12. 12机械、封装和可订购信息

封装选项

机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
订购信息

6.9 Typical Characteristics

all plots are at 25°C, nominal supply voltages, fDAC = 500 MSPS, 50% clock duty cycle, 0-dBFS input signal and 20-mA full-scale output current (unless otherwise noted)

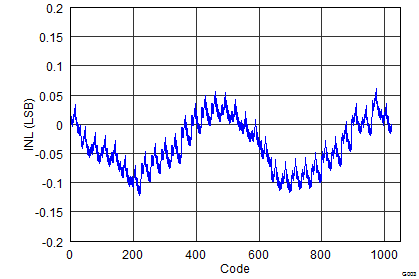

DAC3151 DAC3161 DAC3171 SLAS960_G003_DAC3154_INL.png
Figure 5. DAC3151 Integral Nonlinearity

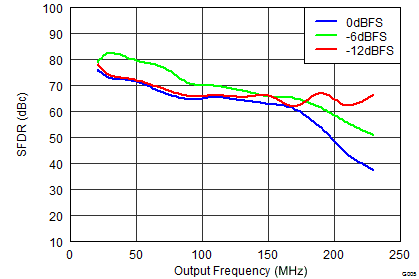

DAC3151 DAC3161 DAC3171 SLAS959_G005_DAC3154_SFDRvsInput.png
Figure 7. DAC3151 SFDR
vs Output Frequency Over Input Scale

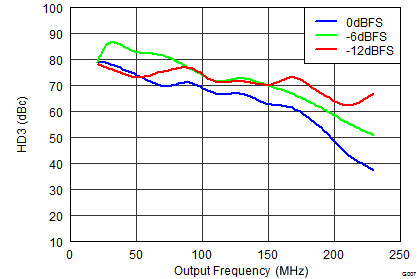

DAC3151 DAC3161 DAC3171 SLAS959_G007_DAC3154_HD3vsInput.png
Figure 9. DAC3151 Third-Order Harmonic Distortion
vs Output Frequency Over Input Scale

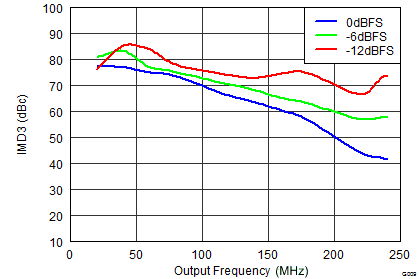

DAC3151 DAC3161 DAC3171 SLAS959_G009_DAC3154_IMD3vsInput.png
Figure 11. DAC3151 IMD3
vs Output Frequency Over Input Scale

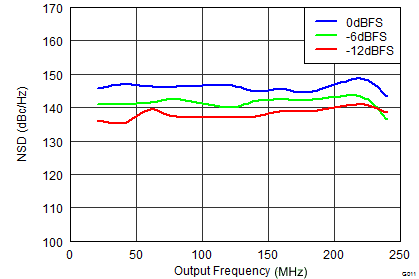

DAC3151 DAC3161 DAC3171 SLAS959_G011_DAC3154_NSDvsInput.png
Figure 13. DAC3151 NSD
vs Output Frequency Over Input Scale
DAC3151 DAC3161 DAC3171 SLAS960_G013_DAC3154_ACLR_Adj.png

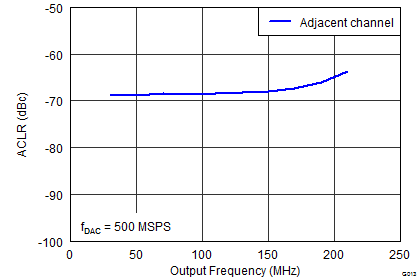

Figure 15. DAC3151 ACLR (Adjacent Channel)
vs Output Frequency

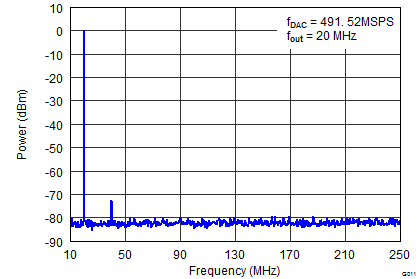

DAC3151 DAC3161 DAC3171 SLAS960_G015_DAC3154_Single_Tone_20MHz.png
Figure 17. DAC3151 Single-Tone Spectral Plot
(IF = 20 MHz)
DAC3151 DAC3161 DAC3171 SLAS960_G017_DAC3154_Two_Tone_20MHz.png
Figure 19. DAC3151 Two-Tone Spectral Plot
(IF = 20 MHz)
DAC3151 DAC3161 DAC3171 G019_DAC3145_wcdma4c_70M_LAS960.gif
Figure 21. DAC3151 ACPR Four-Carrier
WCDMA Test Mode 1

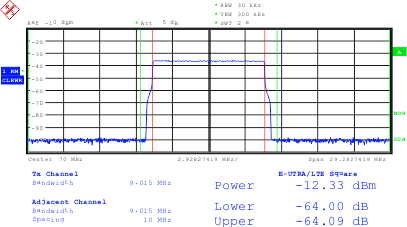

DAC3151 DAC3161 DAC3171 G021_DAC3145_LTE10M_70M_LAS960.gif
Figure 23. DAC3151 ACPR LTE 10-MHz FDD E-TM 1.1

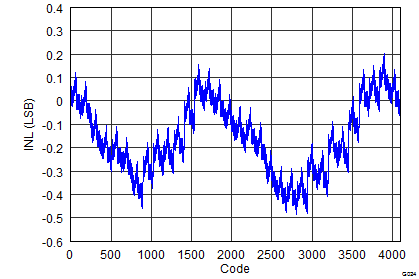

DAC3151 DAC3161 DAC3171 SLAS960_G024_DAC3164_INL.png
Figure 25. DAC3161 Integral Nonlinearity

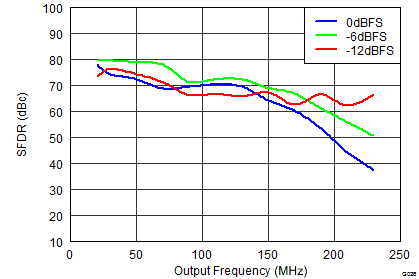

DAC3151 DAC3161 DAC3171 SLAS959_G026_DAC3164_SFDRvsInput.png
Figure 27. DAC3161 SFDR
vs Output Frequency Over Input Scale

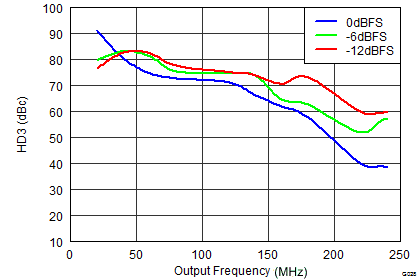

DAC3151 DAC3161 DAC3171 SLAS959_G028_DAC3164_HD3vsInput.png
Figure 29. DAC3161 Third-Order Harmonic Distortion
vs Output Frequency Over Input Scale

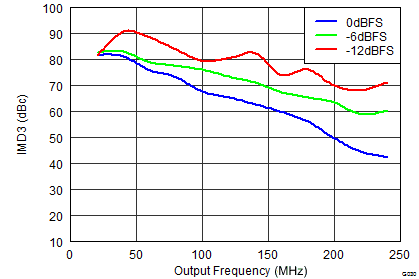

DAC3151 DAC3161 DAC3171 SLAS959_G030_DAC3164_IMD3vsInput.png
Figure 31. DAC3161 IMD3
vs Output Frequency Over Input Scale

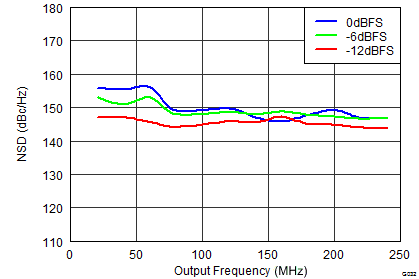

DAC3151 DAC3161 DAC3171 SLAS959_G032_DAC3164_NSDvsInput.png
Figure 33. DAC3161 NSD
vs Output Frequency Over Input Scale
DAC3151 DAC3161 DAC3171 SLAS960_G034_DAC3164_ACLR_Adj.png
Figure 35. DAC3161 ACLR (Adjacent Channel)
vs Output Frequency

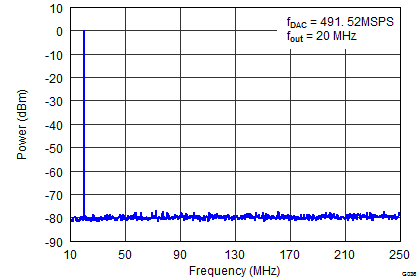

DAC3151 DAC3161 DAC3171 SLAS960_G036_DAC3164_Single_Tone_20MHz.png
Figure 37. DAC3161 Single-Tone Spectral Plot
(IF = 20 MHz)

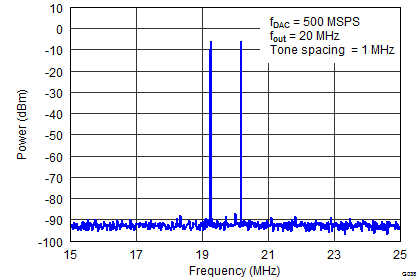

DAC3151 DAC3161 DAC3171 SLAS960_G038_DAC3164_Two_Tone_20MHz.png
Figure 39. DAC3161 Two-Tone Spectral Plot
(IF = 20 MHz)

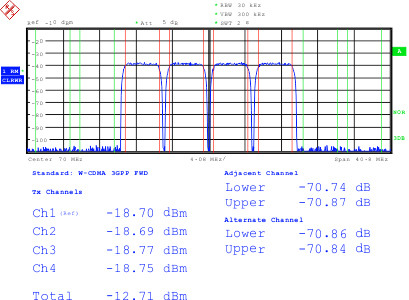

DAC3151 DAC3161 DAC3171 G040_DAC3145_wcdma4c_70M_LAS960.gif
Figure 41. DAC3161 ACPR Four-Carrier
WCDMA Test Mode 1

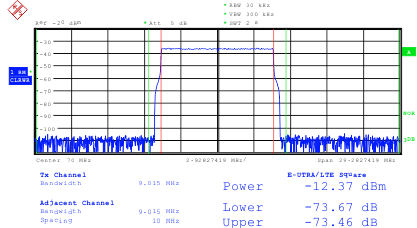

DAC3151 DAC3161 DAC3171 G042_DAC3145_lte10m_70M_LAS960.gif
Figure 43. DAC3161 ACPR LTE 10-MHz FDD E-TM 1.1

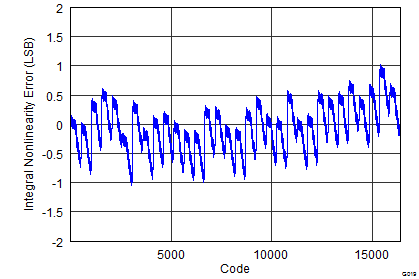

DAC3151 DAC3161 DAC3171 G019_SLAS837_INL.png
Figure 45. DAC3171 Integral Nonlinearity
DAC3151 DAC3161 DAC3171 G001_SLAS959_SFDR_Input_Callout.png

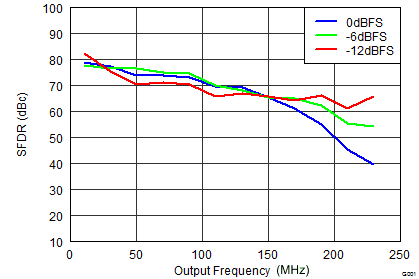

Figure 47. DAC3171 SFDR
vs Output Frequency Over Input Scale

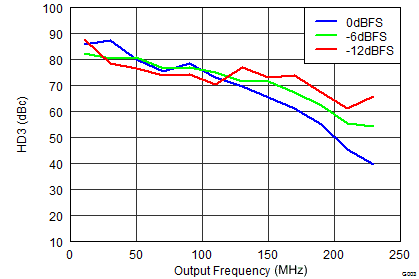

DAC3151 DAC3161 DAC3171 G003_SLAS959_HD3_Input_Callout.png
Figure 49. DAC3171 Third-Order Harmonic Distortion
vs Output Frequency Over Input Scale

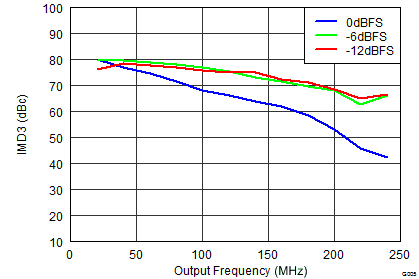

DAC3151 DAC3161 DAC3171 G005_SLAS959_IMD3_Input_Callout.png
Figure 51. DAC3171 IMD3
vs Output Frequency Over Input Scale

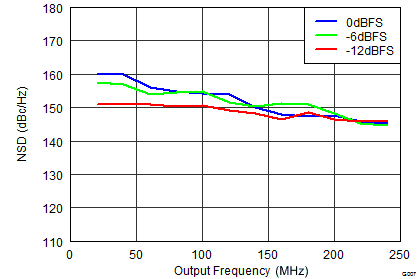

DAC3151 DAC3161 DAC3171 G007_SLAS959_NSD_Input_Callout.png
Figure 53. DAC3171 NSD
vs Output Frequency Over Input Scale

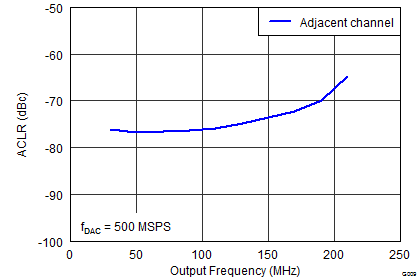

DAC3151 DAC3161 DAC3171 G009_LAS837 ACLR Adj Callout.png
Figure 55. DAC3171 ACLR (Adjacent Channel)
vs Output Frequency
DAC3151 DAC3161 DAC3171 G011_LAS837 Spectral IF20M Callout.png

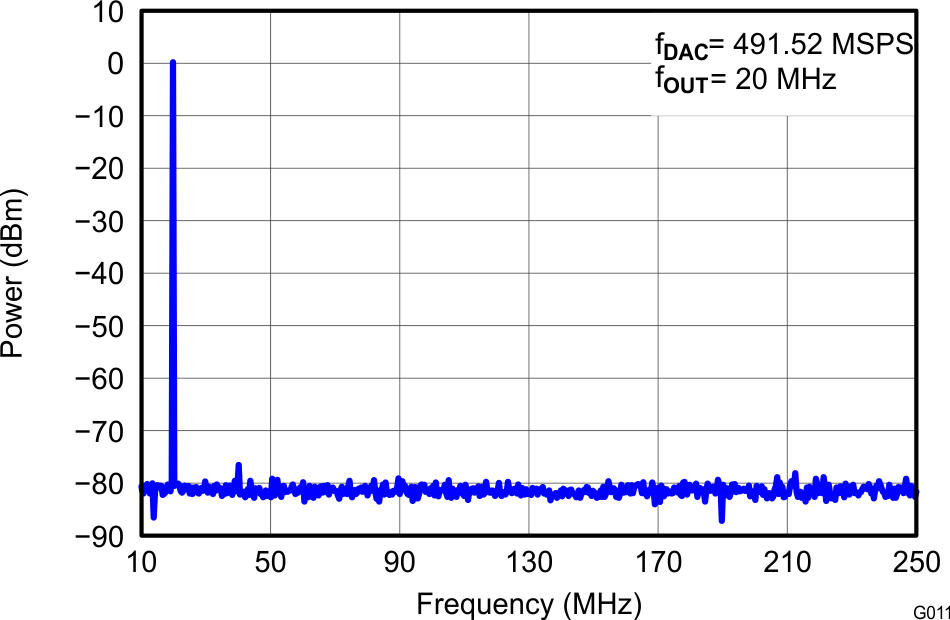

Figure 57. DAC3171 Single-Tone Spectral Plot
(IF = 20 MHz)
DAC3151 DAC3161 DAC3171 G013_LAS837 TwoTone IF20M Callout.png

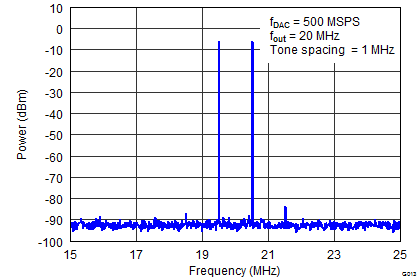

Figure 59. DAC3171 Two-Tone Spectral Plot
(IF = 20 MHz)
DAC3151 DAC3161 DAC3171 G015_4-carrier_wcdma_LAS837.gif
Figure 61. DAC3171 Four-Carrier WCDMA Test Mode 1

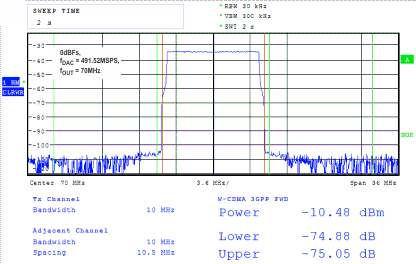

DAC3151 DAC3161 DAC3171 G017_10MHz_LTE_Test_Mode3_1_LAS837.gif
Figure 63. DAC3171 10-MHz Single-Carrier
LTE Test Mode 3.1

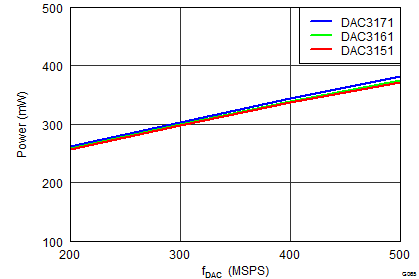

DAC3151 DAC3161 DAC3171 SLAS959_G065_PowervsFdac.pngFigure 65. Power Consumption vs fDAC
DAC3151 DAC3161 DAC3171 SLAS960_G004_DAC3154_DNL.png

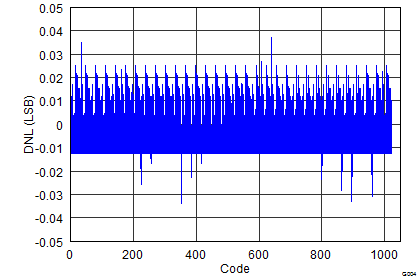

Figure 6. DAC3151 Differential Nonlinearity
DAC3151 DAC3161 DAC3171 SLAS959_G006_DAC3154_HD2vsInput.png
Figure 8. DAC3151 Second-Order Harmonic Distortion
vs Output Frequency Over Input Scale
DAC3151 DAC3161 DAC3171 SLAS960_G008_DAC3154_SFDRvsFdac.png
Figure 10. DAC3151 SFDR
vs Output Frequency Over fDAC
DAC3151 DAC3161 DAC3171 SLAS960_G010_DAC3154_IMD3vsFdac.png

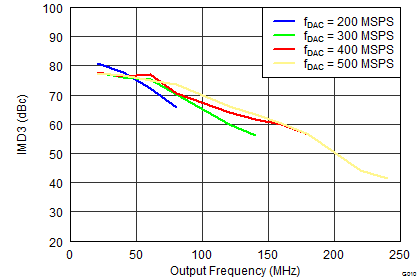

Figure 12. DAC3151 IMD3
vs Output Frequency Over fDAC

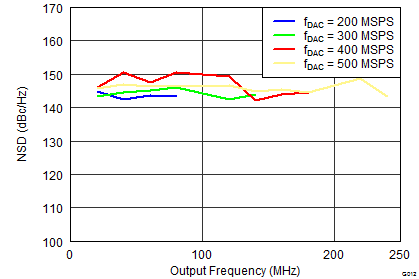

DAC3151 DAC3161 DAC3171 SLAS960_G012_DAC3154_NSDvsFdac.png
Figure 14. DAC3151 NSD
vs Output Frequency Over fDAC

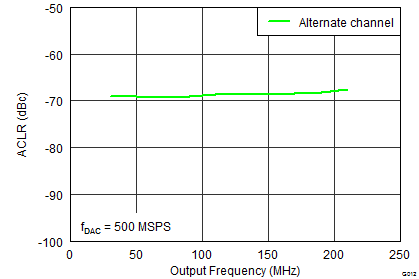

DAC3151 DAC3161 DAC3171 SLAS960_G014_DAC3154_ACLR_Alt.png
Figure 16. DAC3151 ACLR (Alternate Channel)
vs Output Frequency

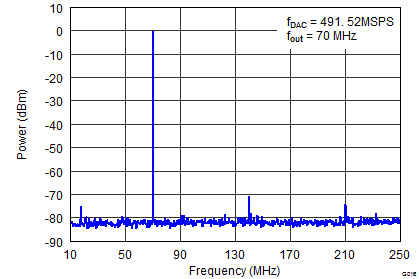

DAC3151 DAC3161 DAC3171 SLAS960_G016_DAC3154_Single_Tone_70MHz.png
Figure 18. DAC3151 Single-Tone Spectral Plot
(IF = 70 MHz)

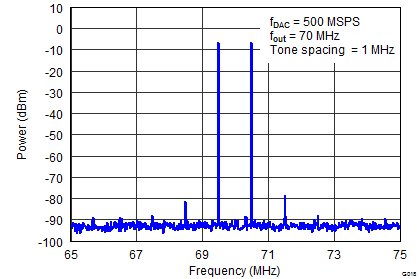

DAC3151 DAC3161 DAC3171 SLAS960_G018_DAC3154_Two_Tone_70MHz.png
Figure 20. DAC3151 Two-Tone Spectral Plot
(IF = 70 MHz)
DAC3151 DAC3161 DAC3171 G020_DAC3145_wcdma1c_70M_LAS960.gif
Figure 22. DAC3151 ACPR Single-Carrier
WCDMA Test Mode 1

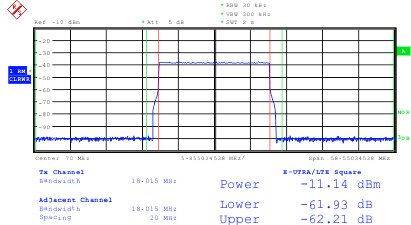

DAC3151 DAC3161 DAC3171 G022_DAC3145_LTE20M_70M_LAS960.gif
Figure 24. DAC3151 ACPR LTE 20-MHz FDD E-TM 1.1

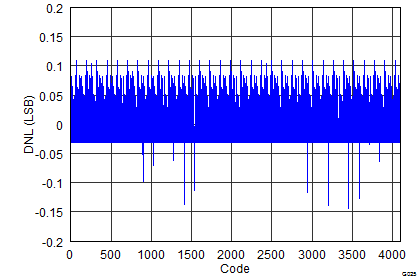

DAC3151 DAC3161 DAC3171 SLAS960_G025_DAC3164_DNL.png
Figure 26. DAC3161 Differential Nonlinearity

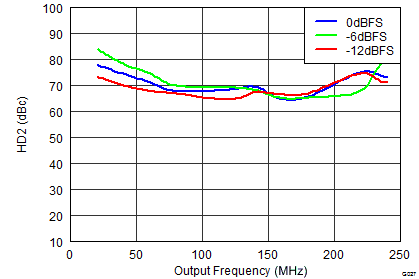

DAC3151 DAC3161 DAC3171 SLAS959_G027_DAC3164_HD2vsInput.png
Figure 28. DAC3161 Second-Order Harmonic Distortion
vs Output Frequency Over Input Scale

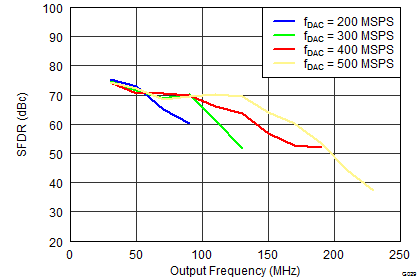

DAC3151 DAC3161 DAC3171 SLAS960_G029_DAC3164_SFDRvsFdac.png
Figure 30. DAC3161 SFDR
vs Output Frequency Over fDAC

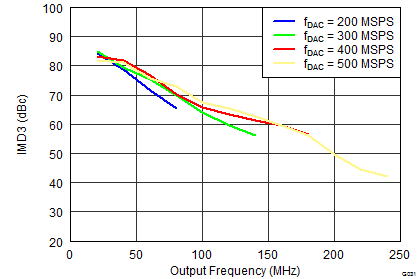

DAC3151 DAC3161 DAC3171 SLAS960_G031_DAC3164_IMD3vsFdac.png
Figure 32. DAC3161 IMD3
vs Output Frequency Over fDAC

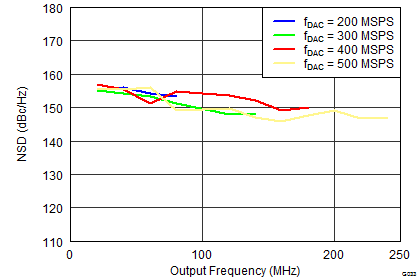

DAC3151 DAC3161 DAC3171 SLAS960_G033_DAC3164_NSDvsFdac.png
Figure 34. DAC3161 NSD
vs Output Frequency Over fDAC

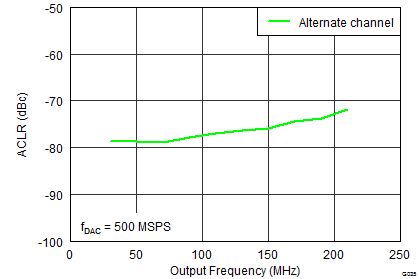

DAC3151 DAC3161 DAC3171 SLAS960_G035_DAC3164_ACLR_Alt.png
Figure 36. DAC3161 ACLR (Alternate Channel)
vs Output Frequency

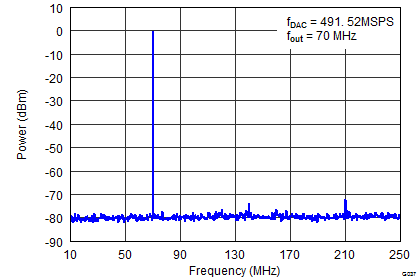

DAC3151 DAC3161 DAC3171 SLAS960_G037_DAC3164_Single_Tone_70MHz.png
Figure 38. DAC3161 Single-Tone Spectral Plot
(IF = 70 MHz)
DAC3151 DAC3161 DAC3171 SLAS960_G039_DAC3164_Two_Tone_70MHz.png

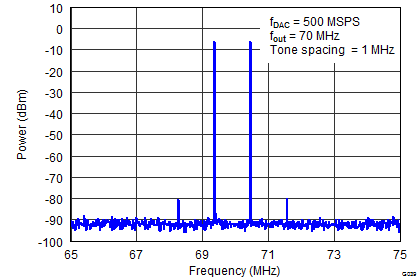

Figure 40. DAC3161 Two-Tone Spectral Plot
(IF = 70 MHz)
DAC3151 DAC3161 DAC3171 G041_DAC3145_wcdma1c_70M_LAS960.gif
Figure 42. DAC3161 ACPR Single-Carrier
WCDMA Test Mode 1

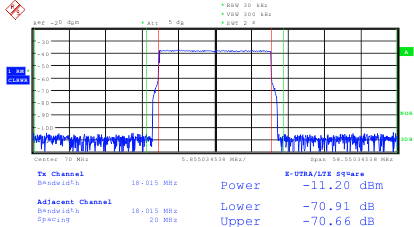

DAC3151 DAC3161 DAC3171 G043_DAC3145_lte20m_70M_LAS960.gif
Figure 44. DAC3161 ACPR LTE 20-MHz FDD E-TM 1.1

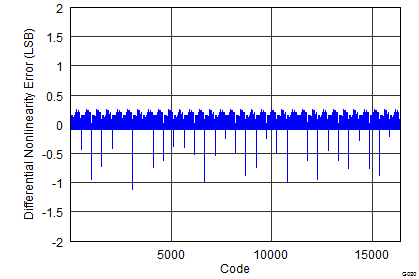

DAC3151 DAC3161 DAC3171 G020_SLAS837_DNL.png
Figure 46. DAC3171 Differential Nonlinearity

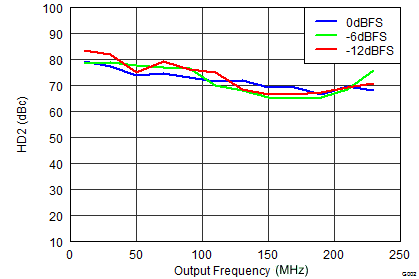

DAC3151 DAC3161 DAC3171 G002_SLAS959_HD2_Input_Callout.png
Figure 48. DAC3171 Second-Order Harmonic Distortion
vs Output Frequency Over Input Scale

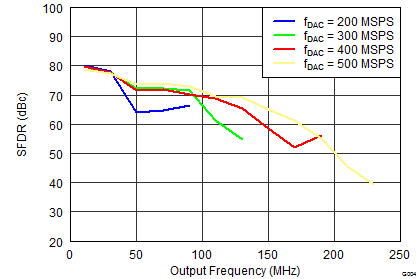

DAC3151 DAC3161 DAC3171 G004_SLAS837 SFDR Fdac Callout.png
Figure 50. DAC3171 SFDR
vs Output Frequency Over fDAC

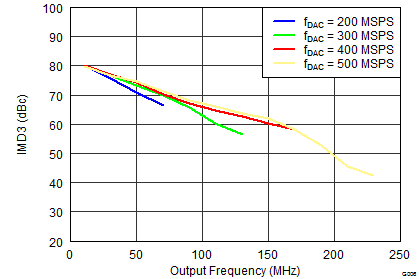

DAC3151 DAC3161 DAC3171 G006_SLAS837 IMD3 Fdac Callout.png
Figure 52. DAC3171 IMD3
vs Output Frequency Over fDAC

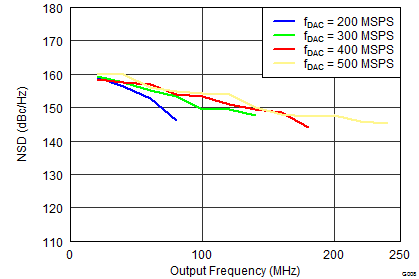

DAC3151 DAC3161 DAC3171 G008_LAS837 NSD Fdac Callout.png
Figure 54. DAC3171 NSD
vs Output Frequency Over fDAC

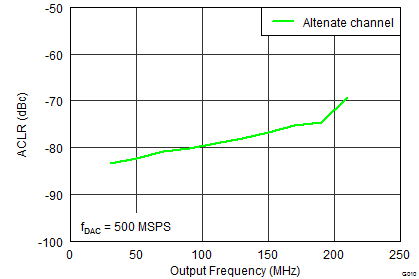

DAC3151 DAC3161 DAC3171 G010_LAS837 ACLR Alt Callout.png
Figure 56. DAC3171 ACLR (Alternate Channel)
vs Output Frequency

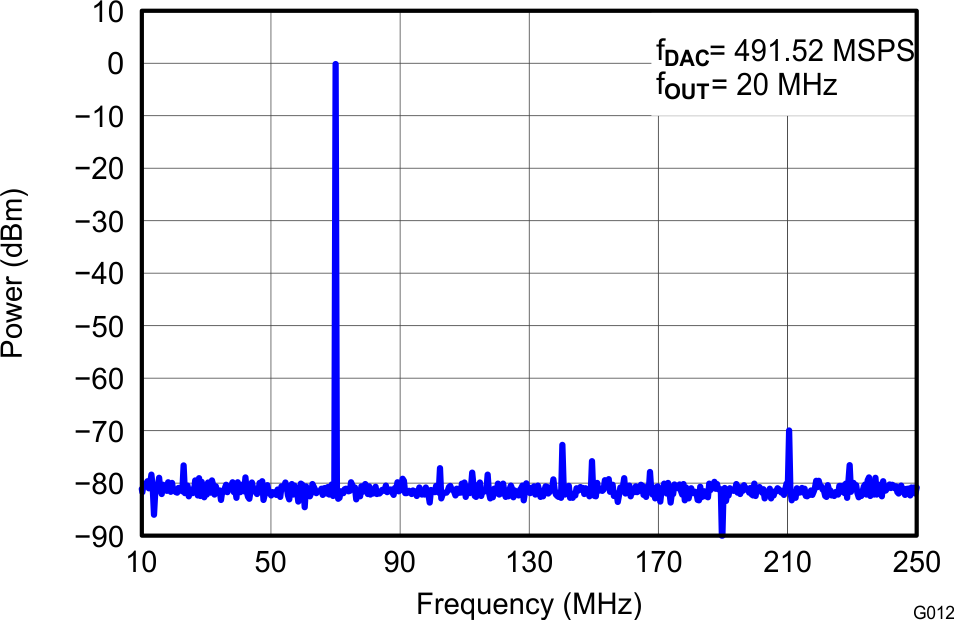

DAC3151 DAC3161 DAC3171 G012_LAS837 Spectral IF70M Callout.png
Figure 58. DAC3171 Single-Tone Spectral Plot
(IF = 70 MHz)
DAC3151 DAC3161 DAC3171 G014_LAS837 TwoTone IF70M Callout.png
Figure 60. DAC3171 Two-Tone Spectral Plot
(IF = 70 MHz)
DAC3151 DAC3161 DAC3171 G016_1-carrier_wcdma_LAS837.gif
Figure 62. DAC3171 Single-Carrier WCDMA Test Mode 1
DAC3151 DAC3161 DAC3171 G018_20MHz_LTE_Test_Mode3_1_LAS837.gif
Figure 64. DAC3171 20-MHz Single-Carrier
LTE Test Mode 3.1
