6.6 Typical Characteristics

TJ = 125°C, unless stated otherwise.
CSD97374Q4M D001_SLPS382.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
ƒSW = 500 kHz LOUT = 0.29 µH
Figure 1. Power Loss vs Output Current
CSD97374Q4M D003_SLPS382.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
ƒSW = 500 kHz LOUT = 0.29 µH
Figure 3. Safe Operating Area – PCB Horizontal Mount
CSD97374Q4M D002_SLPS382.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
ƒSW = 500 kHz LOUT = 0.29 µH
Figure 2. Power Loss vs Temperature
CSD97374Q4M D004_SLPS382.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
ƒSW = 500 kHz LOUT = 0.29 µH

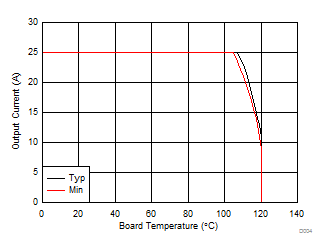

Figure 4. Typical Safe Operating Area (1)
CSD97374Q4M D005_SLPS382.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
IOUT = 25 A LOUT = 0.29 µH

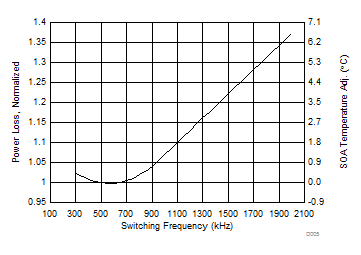

Figure 5. Normalized Power Loss vs Frequency
CSD97374Q4M D007_SLPS382.gif
VIN = 12 V VDD = 5 V ƒSW = 500 kHz
IOUT = 25 A LOUT = 0.29 µH
Figure 7. Normalized Power Loss vs Output Voltage
CSD97374Q4M D009_SLPS382.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
IOUT = 25 A LOUT = 0.29 µH

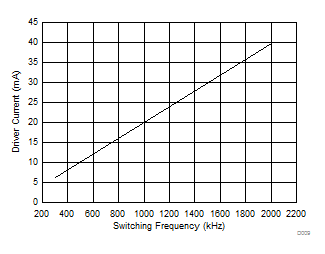

Figure 9. Driver Current vs Frequency
CSD97374Q4M D006_SLPS382.gif
ƒSW = 500 kHz VDD = 5 V VOUT = 1.8 V
IOUT = 25 A LOUT = 0.29 µH
Figure 6. Normalized Power Loss vs Input Voltage
CSD97374Q4M D008_SLPS382.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
ƒSW = 500 kHz IOUT = 25 A
Figure 8. Normalized Power Loss vs Output Inductance
CSD97374Q4M D010_SLPS382.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
IOUT = 25 A LOUT = 0.29 µH
Figure 10. Driver Current vs Temperature
The Typical CSD97374Q4M system characteristic curves are based on measurements made on a PCB design with dimensions of 4 in (W) x 3.5 in (L) x 0.062 in (T) and 6 copper layers of 1-oz copper thickness. See the Application and Implementation section for detailed explanation.
