8.5 Programming

Table 8-8 Command Code Definition
BITDESCRIPTION
70 = Block Read or Block Write operation
1 = Byte Read or Byte Write operation
(6:0)Byte offset for Byte Read, Block Read, Byte Write, and Block Write operations

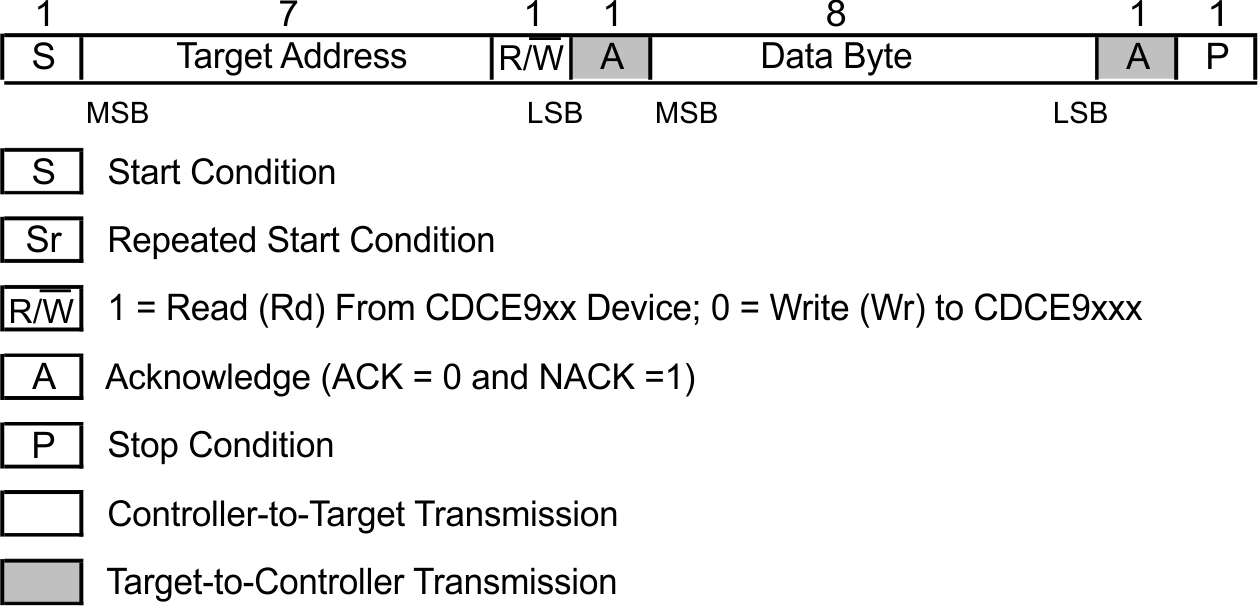

GUID-1C6526CF-C7F5-401C-8667-B005BE4C6C82-low.gifFigure 8-3 Generic Programming Sequence

Figure 8-4 Byte Write Protocol
GUID-34ED2741-320B-48A4-A5CB-E817069994D7-low.svgFigure 8-5 Byte Read Protocol

A. Data byte 0 bits [7:0] is reserved for Revision Code and Vendor Identification. Also, Data byte 0 is used for internal test purpose and must not be overwritten.
Figure 8-6 Block Write Protocol
GUID-C8807933-3163-4A32-9369-9495D50A1025-low.gifFigure 8-7 Block Read Protocol
GUID-041D9A4D-D85F-47E5-B091-70492FDE02D2-low.gifFigure 8-8 Timing Diagram for I2C Serial Control Interface
